HONEYWELL CC-PDOD51 | Experion C300 I/O – Digital Output

Description

Product Core Brief

• Model: CC-PDOD51
• Brand: Honeywell
• Series: Experion C Series I/O
• Core Function: Provides 16 digital output channels for driving solenoids, relays, and indicators in Experion PKS systems.
• Type: Digital Output Module
• Key Specs: 16 channels, 24 VDC sourcing outputs, 0.5 A per channel, short-circuit protected.
• Condition: New Original (New Surplus) — not refurbished.

Product Introduction

The valve won’t close. The DCS says the output is on. The LED on the module is lit. But the solenoid is cold. That’s when you realize the output channel died.

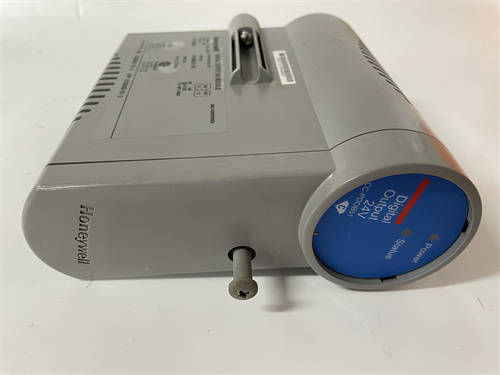

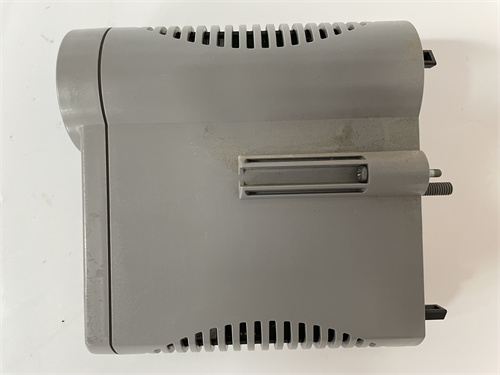

The HONEYWELL CC-PDOD51 is the 16‑channel digital output workhorse for the Experion C Series I/O system. It’s the module that actually moves things—solenoids, motor contactors, alarm lights. 24 VDC sourcing outputs, 0.5 A per channel, short‑circuit protected. It plugs into the C Series rack and talks to the C300 controller over the I/O bus.

I’ve used these in refineries, chemical plants, and water treatment facilities. The module is solid. The weak point is the terminal block—the removable kind that techs love and hate. Love because you can pre‑wire. Hate because the pins bend if you look at them wrong. When a channel fails, it’s usually because someone shorted the output or because the terminal block pins got tweaked. The fix is swapping the module. Two minutes, if the spare is in the cabinet.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

Output modules get tested hard. A failed output can mean a stuck valve.

1. Incoming Verification
   This batch came from a Honeywell authorized distributor’s final C Series stock. Sealed boxes. Serial numbers traceable to 2018–2020 production. Unopened anti‑static bags.
2. Visual Inspection

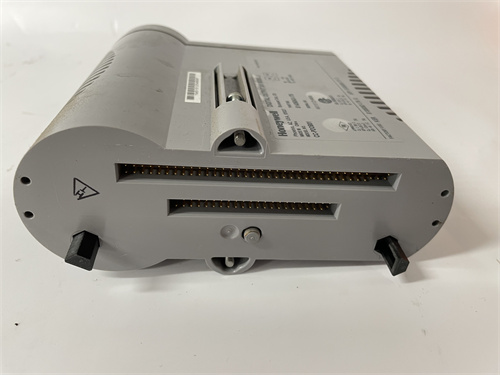

   First: terminal block pins. Any bent pins are a reject—straightening them risks breakage. Next: the bottom edge connector. Gold fingers should be bright, no scoring. Also check the case for heat discoloration. If it’s been used before, the outputs leave a mark.
3. Live Functional Test
   We test the CC-PDOD51 in a C Series test rack with a C300 controller. Procedure:
   • Power‑up: verify module OK LED solid green
   • Command each output on from the controller, verify LED lights
   • Measure output voltage at the terminal block (should be >23 VDC)
   • Load test: connect a 50 Ω resistor (0.5 A load) to each channel, verify voltage holds >22 VDC
   • Short‑circuit test: short output to ground, verify module flags fault, output shuts down
   • Soak test: run all 16 channels at 0.5 A for 1 hour, monitor for overtemp trips
4. Thermal Imaging
   We run the soak test with a thermal camera. Any output transistor running >15 °C above the others gets flagged. That’s a sign of a marginal part.
5. Final QC & Packaging
   Passed modules go back in anti‑static bags, then bubble wrap, then a carton with QC sticker showing test date, load test results, and thermal imaging summary.

Field Replacement Pitfalls

Output modules are where the field meets the controller. Mistakes here cost hardware.

1. Terminal block pins.
   The removable terminal block is convenient. It’s also fragile. I’ve seen techs force the block in at an angle and bend a pin. The module powers up. Channel 8 doesn’t work. The fix is a new module—the pins are soldered to the board. Look at the alignment before you push.
2. ❌ Load current exceeds rating.
   The module is rated for 0.5 A per channel, 4 A total. I’ve seen a plant connect six 0.5 A solenoids—that’s 3 A, fine. Then they added a seventh on channel 7 and pulled 0.6 A. The channel didn’t fail immediately. It failed six months later. The thermal protection saved the board, but the channel was dead. Calculate the total load before you add devices.
3. Field supply voltage.
   The module needs 24 VDC field supply. If the supply sags to 18 V, the outputs still work—barely. But the inrush current on a solenoid can drop the voltage further, and the output will drop out. I’ve seen a valve chatter because the 24 V supply was undersized. The module was fine. The wiring was the problem.
4. Output LED lies.
   The LED lights when the output transistor is commanded on. It doesn’t mean the output is actually delivering voltage. I’ve seen an output with a blown transistor—the LED lit, but the terminal had 0 V. Trust the meter, not the LED.
5. Crosstalk from inductive loads.
   Solenoids are inductive. When they turn off, they kick back voltage. The module has internal clamping diodes, but they have limits. If you’re switching big solenoids, add external flyback diodes at the coil. One plant lost three modules in a year before they figured out the solenoids were killing them.

Get these five right and you’ll cut rework time by 90%.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this HONEYWELL CC-PDOD51 was built by Honeywell, never installed, and never repaired. The output transistors are fresh. The terminal block pins are straight. The internal protection circuits haven’t been stressed.

Refurbished output modules are risky. The output transistors degrade with use. A refurb module might have been in a plant for years, switching solenoids daily. The transistors might be near end‑of‑life—they’ll work for a while, then fail open. I’ve seen a refurb module that passed a bench test but failed in the field after three months. The cost of the unplanned shutdown was ten times the module price.

What we provide:

• Traceable serial number (matches Honeywell production records)
• 16‑channel load test at 0.5 A per channel
• 1‑hour soak test with thermal imaging
• Short‑circuit protection verification
• Original anti‑static bag (if available) or fresh bag with QC seal
• 12‑month warranty

Pricing context:
Our price sits above the cheapest used listings. It’s also below what a new module would cost from Honeywell. You’re paying for the test, the warranty, and the certainty that the output transistors aren’t on their last legs.

Performance Benchmarks & Test Results

All tests performed on C Series test rack with C300 controller, 24 VDC field supply, 25 °C ambient.

Thermal performance note:
At 60 °C ambient, the module’s thermal derating kicks in. Sustained output current drops to 0.4 A per channel, 3.2 A total. If your cabinet runs hot, keep the loads under 0.4 A. The module will survive. The solenoids might not.

One more thing from the field:
The CC-PDOD51 has a small test point on the front edge—TP1. It’s the internal 5 V rail. If the module acts flaky, probe TP1. Should be 5.0 ±0.25 V. If it’s low, the internal power supply is failing. Swap the module. I’ve seen that save a day of troubleshooting.
