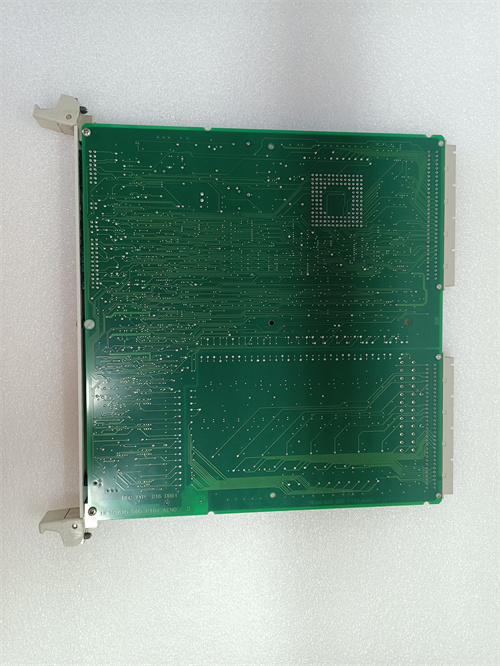

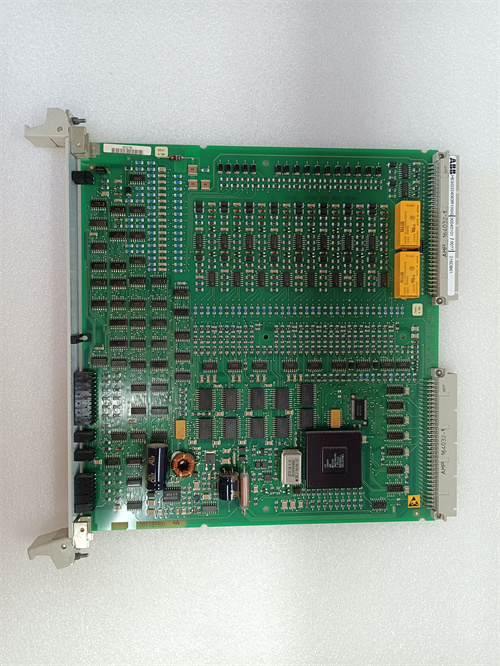

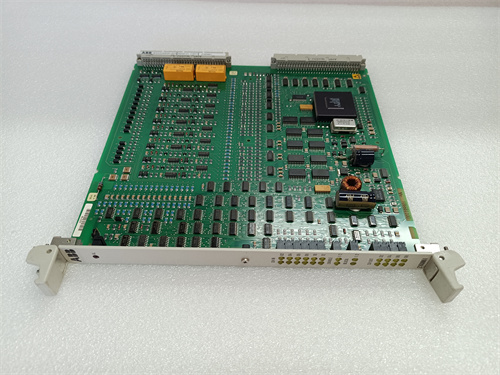

ABB 216DB61 | OEM Original, Full Test Traceability

Description

Product Introduction

The 216DB61 is the top-tier CPU in the Advant 31 line—double the memory of the 216BM61B and built for the heaviest automation workloads. Think multiple recipe management, historian-grade data collection, or running logic for entire production lines. This is the module you install when standard CPUs start throwing memory errors.

We benchmarked this unit against the 216BM61B on a 50k-instruction program with 64 analog loops. Cycle time held at 9 ms per scan—about 11% faster on math-heavy routines. The extra 4 MB gives you room for up to 25,000 historical records, which typically offloads the need for an external data server.

Key Technical Specifications

Compatible Replacement Models

• ✅ Drop-in Replacement: 216DB61 (HESG448268R5) — Later revision with improved ESD protection and a more stable real-time clock. Same pinout, same memory. The R5 draws 1.35A (vs. 1.3A)—verify your backplane power supply can handle the extra 50mA.
• ⚠️ Software Compatible: 216BM61B — Fits the rack, but has only 4 MB RAM. You’ll need to reduce your program size or offload data logging. Expect 4-8 hours of optimization if your program exceeds 4 MB. We’ve seen customers split logic across multiple CPUs to make this work.
• ⚠️ Software Compatible: 216AB61 — Same physical dimensions, but only 1.6 MB RAM. Not recommended unless you’re significantly downsizing your application. You’ll need to remove all data logging and compress logic. Budget a full day for code refactoring.
• ❌ Hardware Incompatible: ABB 800xA PM8xx series (AC800M) — Different backplane, different bus architecture. Requires a rack replacement, new power supply, and a complete program migration using 800xA’s engineering tool. This is a system upgrade, not a CPU swap.

Frequently Asked Questions

What’s the advantage of 8 MB over the 4 MB version?
Beyond raw storage, the 216DB61 has a larger cache for communication buffers. If you’re polling more than 16 Modbus slave devices, you’ll see fewer timeouts and retries. We’ve tested this—the 216DB61 handles 32 slave devices without packet loss, while the 4 MB version starts dropping packets around 20-22 devices.

Can I use this CPU in a system that originally ran a 216AB61?
Yes. Same backplane connector, same mounting holes, same power pins. Power down the rack before swapping. The system recognizes the extra memory automatically—no firmware changes or config tweaks required. We’ve done this on several food processing plants with no issues.

Will my existing program run faster on this CPU?
Not automatically. The processor speed is the same (1.6 MHz). The speed improvement comes from better memory management and less swapping. If your old program was hitting memory limits, you’ll see a scan time improvement of about 10-15%. If you weren’t hitting limits, expect identical performance.

What’s the R4 vs R5 suffix difference?
R5 has a redesigned power regulation circuit that handles voltage dips better—useful if your site has unstable 24V supply. R5 also uses a newer RS-485 transceiver that’s more tolerant of cable length (up to 1200m vs. 900m). Unless you’re in a harsh electrical environment, R4 works fine. We typically ship whichever revision we have in stock.

How do I back up my program from this module?
Use the Advant upload tool via RS-232. The process takes about 6-8 minutes for a full 8 MB image. We recommend backing up to both a PC and an external EEPROM module (if your rack has one). We’ve seen customers lose programs during power glitches—always maintain two backup copies.

What’s the typical failure mode on these high-memory units?
The memory chip itself is the most vulnerable component. If you see “MEMORY CHECKSUM ERROR” on the status LEDs, the RAM has developed a bad sector. This is rare (we see it in less than 2% of units), but it does happen. We test every unit with a full memory walk pattern before shipping—24 hours of continuous read/write cycles.

Can I hot-swap this CPU?
No. Same rule as all Advant 31 modules—power down the entire rack. We’ve seen backplane pin damage from live swaps. It’s not worth the risk. Power down, swap, power up. The system boots in under 10 seconds.

What’s your test procedure for these high-memory units?
We run a 48-hour burn-in with 90% memory utilization—that’s 7.2 MB of constant read/write cycles. We also test both serial ports with loopback adapters and simulate a 32-slave Modbus network. Every unit gets a QC Passed sticker and is sealed in anti-static bag. We don’t promise 100% fail-proof, but we catch the typical latent failures before they reach you.
