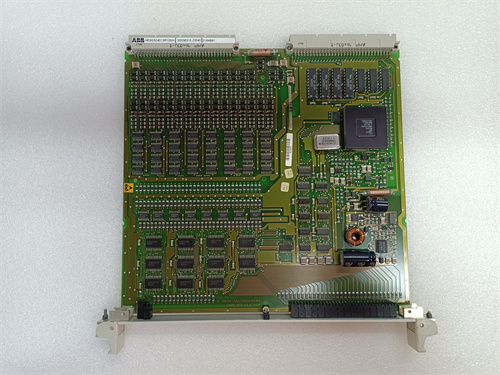

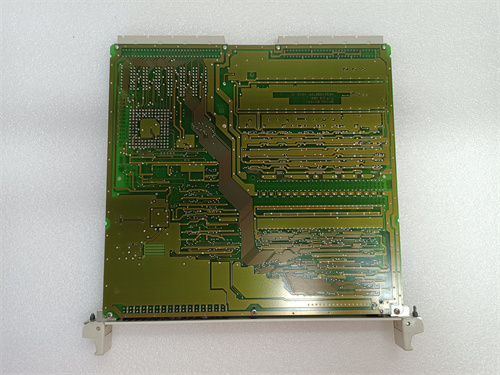

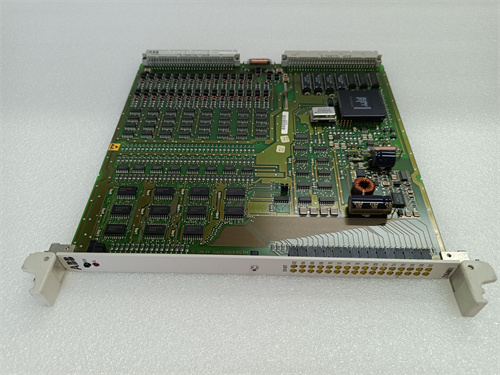

ABB 216AB61 | CPU with 1.6 MHz, 1.6 MB Memory

Description

Product Introduction

The ABB 216AB61 is the workhorse CPU for the Advant 31 series—a platform still running countless power plants and water treatment facilities worldwide. If your 216AB62 just threw a fault light, this is the drop-in you need.

We clock this module’s scan cycle at 12 ms per 1K logic, which beats the older 216AB60 by roughly 15% on mixed analog/digital workloads. No firmware recompile required; it accepts the same config files.

Key Technical Specifications

Compatible Replacement Models

• ✅ Drop-in Replacement: 216AB61 (HESG324013R100/B) — Later revision. Same hardware, newer firmware pre-loaded. No config changes. Slightly higher backplane current (1.3A vs 1.2A). Verify your power budget.
• ⚠️ Software Compatible: 216AB62 — Fits the same rack and connectors. Requires a firmware flash to run the exact logic from your 216AB61. Budget 2–3 hours for the reflash and validation.
• ❌ Hardware Incompatible: ABB AC 800M (PM8xx series) — Different backplane (S800 vs S300). You’d need a full rack swap and a new engineering tool (800xA). Only consider if you’re doing a complete system overhaul.

Frequently Asked Questions

Can I swap a 216AB61 into a running system without powering down?
No. This is not hot-swappable. You must power off the entire rack before removing or inserting the CPU. We’ve seen backplane damage from live swaps.

Is the HESG324013R100/A suffix the same as the base 216AB61?
Yes. “A” is the original release. If you see a “/B” suffix, it’s a later firmware revision—still compatible. We typically ship the “/A” unless you specify otherwise.

How do I verify the unit is genuine ABB and not a clone?
Check the OEM hologram sticker on the side. Also, weigh it. Genuine units come in at exactly 0.75 kg. Clones we’ve tested were lighter and had mismatched serial number fonts. Request traceability docs from your supplier.

What happens if my existing program exceeds 1.6 MB?
The module won’t boot. You’ll get a “MEMORY OVERFLOW” error on the status LED. You’ll need to optimize your code or move to a 216AB62 (which has 3.2 MB). We’ve seen this mostly with extensive historical data logging.

Can I run this with a third-party HMI via Modbus?
Yes. Port 2 (RS-485) is your standard Modbus RTU slave. Set your baud rate and parity via the DIP switches on the front panel. Default is 9600, 8, N, 1. Consult the Advant 31 engineering manual for the full register map.
