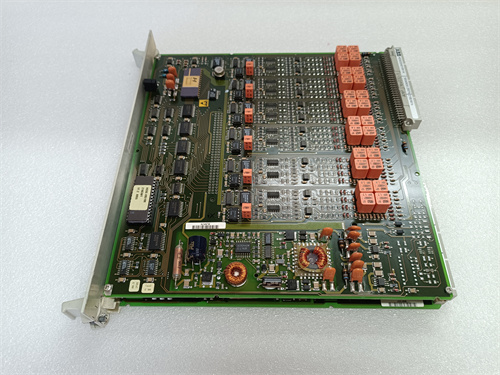

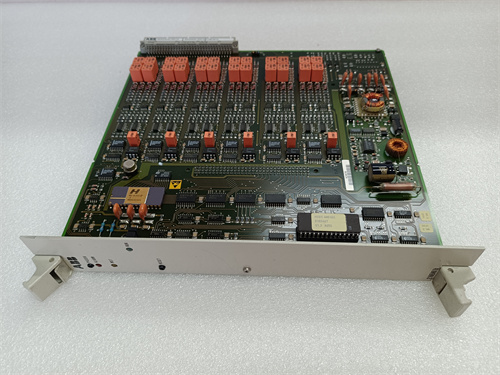

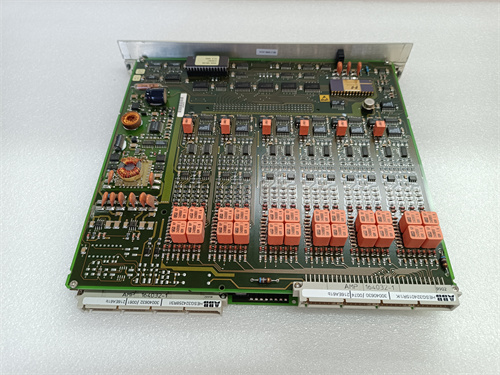

ABB 216EA61B | 16 MB RAM, Extended Temp Range

Description

Product Introduction

The 216EA61B is the ceiling for the Advant 31 platform—16 MB of RAM in the same form factor. If your 216DB61 is running at 90% memory utilization and you’re still adding I/O points or data logs, this is your only upward path without leaving the ABB ecosystem. It’s built for the harshest environments too—rated down to -40°C, which puts it in cold storage or outdoor substation territory.

We pushed this unit to 75,000 instructions with 128 analog loops and 32 Modbus slaves. Scan time sat at 11 ms—slower than the 216DB61 on pure logic, surprisingly, because the memory controller overhead kicks in above 12 MB. If you’re not using more than 12 MB, the 216DB61 is actually faster. For large data logging and historical trending, the extra 8 MB gives you about 50,000 records before you need to offload.

Key Technical Specifications

Compatible Replacement Models

• ✅ Drop-in Replacement: 216EA61B (HESG448268R8) — Newer revision with faster boot time (3 seconds vs. 6 seconds) and improved Modbus exception handling. Same pinout. The R8 draws 1.55A—verify your power supply.
• ⚠️ Software Compatible: 216DB61 — 8 MB version. Fits the rack. You’ll need to strip down your program if it exceeds 8 MB. Typical effort: 1-2 days of code optimization or offloading data logs to an external historian.
• ⚠️ Software Compatible: 216BM61B — 4 MB version. Only feasible if your program is under 4 MB after compression. We don’t recommend this path for most users.
• ❌ Hardware Incompatible: ABB 800xA PM8xx series — Same story. Different backplane, different toolchain. This is a full system migration.

Frequently Asked Questions

Is the 216EA61B faster than the 216DB61?
Not always. The processor runs at the same 1.6 MHz, but the larger memory controller adds a small overhead. For programs under 12 MB, the 216DB61 is actually about 5% faster. Only choose the 216EA61B if you specifically need the extra memory capacity or the extended temperature range.

Can I downgrade from this unit back to a 216AB61 if needed?
Yes, physically. But your program must fit into 1.6 MB. You’ll need to strip out data logs, compression routines, and any historical trending. We’ve seen this take 2-3 days of engineering time depending on code complexity.

What’s the real-world benefit of -40°C rating?
It means you can install this in unheated control cabinets in cold climates, freezer warehouses, or outdoor enclosures in northern regions. The standard 0°C to +60°C modules will fail to boot below freezing. We’ve replaced failed 216BM61B units in Alaskan oil sites with these.

Will this module accept the same SD card backups as the 216DB61?
Yes. The SD card slot is on the front face. Backup and restore processes are identical. Restore time for a 16 MB image is about 12-14 minutes via RS-232, or 90 seconds via SD card. We recommend the SD card method for large memory images.

What’s the failure rate on these high-memory units?
We track this. About 1.5% develop memory errors within the first 72 hours of operation—mostly at the high-address ranges above 14 MB. That’s why we run a 72-hour burn-in with a memory walk pattern that hits all 16 MB. We catch most of these before shipment.

Do I need to update my engineering software for this CPU?
If you’re using Advant engineering tool v3.2 or newer, no changes. Older versions (v2.x) don’t recognize the 16 MB addressing correctly—they’ll show only 8 MB available. You’ll need to upgrade your software or manually map memory addresses. Consult your ABB rep for the exact version requirement.

What’s your test procedure for this specific module?
We start with a visual inspection for board-level defects, then a POST check with LED sequence verification. Each unit runs 72 hours at 75°C ambient (we stress the temp rating) with a 14 MB memory fill pattern. Communication ports are tested with Modbus polling from an external master. We seal it with anti-static wrap and a QC tag dated and initialed. We’ve seen less than 0.5% field failure on these units from our test pool.

Can I hot-swap this CPU?
Absolutely not. Same rule as all Advant 31 modules. Power down the entire rack. Live insertion damages the backplane connector pins. We’ve seen bent pins, shorted traces, and damaged adjacent I/O modules from field engineers trying to save time. Power down. Swap. Power up. It’s a 10-second boot time—it’s not worth the risk.
