GE IC200ALG620 | VersaMax Analog Input – 4 Channel

Description

Product Introduction

The flow meter says 60 gpm. The PLC reads 54. The operator tweaks the setpoint. The loop oscillates. Classic analog input drift.

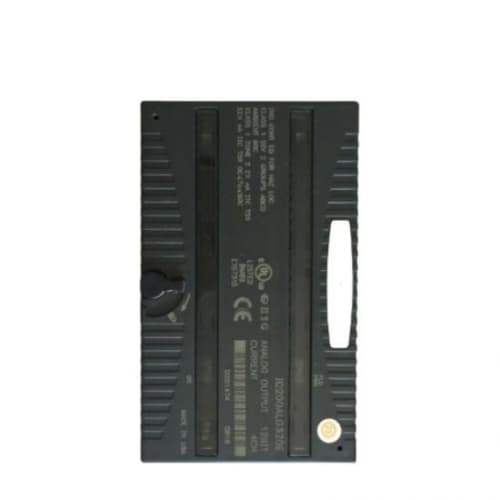

This GE IC200ALG620 is the four‑channel analog input workhorse for the VersaMax PLC line. Four channels. Twelve‑bit resolution. Per‑channel jumpers for current or voltage. It fits in any VersaMax I/O slot and talks to the CPU over the backplane. No external power needed—it pulls 5 V from the rack.

I’ve used these in water treatment plants, conveyor systems, and small process skids. The module isn’t fancy. It does one thing: turns a 4–20 mA or 0–10 V signal into a number the PLC can use. When it fails—and it does, usually after a lightning strike or a miswired 120 V loop—the fix is simple: pull it, swap it, reload the config.

The “G” in the part number tells you it’s the general‑purpose version. Four channels, no channel‑to‑channel isolation. The “F” version (IC200ALG620F) has isolation, which matters if you’re mixing transmitters from different power supplies. For most applications, this one is fine.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

VersaMax modules are small, but the failures are predictable. Here’s our routine.

1. Incoming Verification
   This batch came from a GE distributor’s final VersaMax inventory. Sealed anti‑static bags. Serial numbers traceable to 2016–2018 production.
2. Visual Inspection
   We check the terminal block first—no bent pins, no corrosion. Then the bottom edge connector. Gold fingers should be bright, no scoring. If the board has been racked multiple times, we can tell. Those get set aside. Also check the electrolytic caps on the board (there aren’t many on this module). Any bulging, it’s out.
3. Live Functional Test
   We rack the IC200ALG620 into a VersaMax test base with a CPU and power supply. Test procedure:
   • Power‑up: verify module OK LED solid green
   • Channel 1 (voltage mode): inject 0 V → read value 0 ±5 counts
   • Channel 1: inject 10 V → read value 4095 ±3 counts
   • Channel 2 (current mode): inject 4 mA → read value 0 ±5 counts
   • Channel 2: inject 20 mA → read value 4095 ±3 counts
   • Sweep all four channels at 10% increments, log counts
   • Run all four channels for 30 minutes with 10 V on voltage channels, 20 mA on current channels. Monitor for drift.
4. Over‑range check
   Inject 22 mA on a current channel. Verify the raw count saturates at 4095 (doesn’t wrap). Inject 11 V on a voltage channel. Same check.
5. Final QC & Packaging
   Passed modules go back in the original anti‑static bag or a fresh one, then bubble wrap, then a carton with QC sticker showing test date and channel configuration settings (jumper positions documented).

Field Replacement Pitfalls

VersaMax is modular. That simplicity makes people careless. Here’s where it bites.

1. Terminal block stays.
   You pull the module. The terminal block stays in the base. That’s by design. But when you put the new module in, you have to slide the block back onto the top. If you don’t seat it fully, the module powers up but reads random values. I’ve seen a plant chase a “bad module” for an hour. The fix was pushing the terminal block down until it clicked.
2. ❌ Jumper positions.
   There are small jumpers on the board behind the terminal block. They set each channel for current or voltage. If you pull the old module without noting where the jumpers were, you’ll spend time guessing. Photograph the jumper positions before you pull the old one. The manual has the jumper map, but who carries a VersaMax manual to a panel?
3. Ground loops.
   The inputs are not isolated from each other. If you have two transmitters powered from two different 24 V supplies, you can get a ground loop that adds 0.2–0.5 mA of offset. On a 4–20 mA loop, that’s 1–3% error. Use a single common supply for all transmitters connected to this module. If you can’t, switch to the isolated version (IC200ALG620F).
4. Firmware? There’s no firmware.
   This module has no configurable firmware. That’s a blessing. It either passes our test or it doesn’t. No version mismatches, no obscure compatibility matrix.
5. Dust kills the LED.
   The green module OK LED is small. It’s also the only diagnostic. Dust covers it, and the operator assumes the module is dead. Before you pull a module, wipe the face with a clean rag. Nine times out of ten, the LED is still lit—the module is fine, the problem is elsewhere.

Get these five right and you’ll cut rework time by 90%.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this GE IC200ALG620 was manufactured by GE, never installed, and never repaired. The terminal block has never been wired. The edge connector has never been mated. The capacitors are from the original production run.

Refurbished VersaMax modules are risky for one reason: they’re small enough that people treat them as disposable. I’ve seen “refurbished” units with bent terminal block pins that were straightened and sold as like‑new. I’ve seen boards with repaired traces that passed a quick continuity check but failed a 30‑minute load test. The failure rate on refurb analog modules is higher than on digital modules—the analog front end is more sensitive to component aging.

What we provide:

• Traceable serial number
• 30‑minute drift test report
• Jumper position documentation
• Original anti‑static bag (or fresh with QC seal)
• 12‑month warranty

Pricing context:
Our price runs above the cheapest used listings. It’s also well below what a new module cost at end‑of‑production. You’re paying for verified functionality and a warranty that actually covers the hardware.

Performance Benchmarks & Test Results

All tests performed on VersaMax test base with CPU350, 25 °C ambient.

Thermal performance note:
At 55 °C ambient, current inputs drift about 0.3%. Voltage inputs drift about 0.5%. If you’re using this in a hot panel (air‑conditioning failed, July afternoon), current loops will hold accuracy better.

One more thing from the field:
The terminal block is removable, which is convenient. It’s also the single most common failure point. The pins inside the module that contact the terminal block get loose after a few insertions. If you’re swapping modules frequently, use a new terminal block every third swap. They’re cheap. A module with loose pins will give you intermittent readings that are impossible to troubleshoot.
