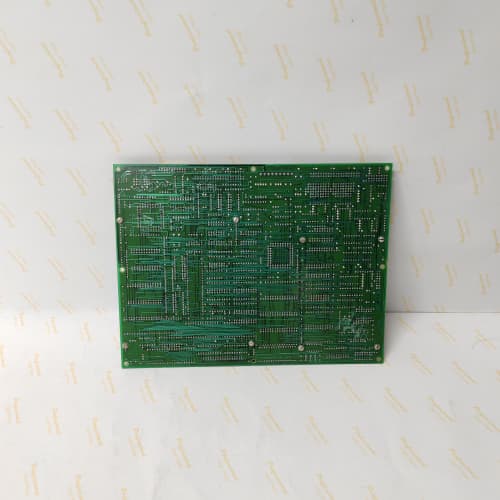

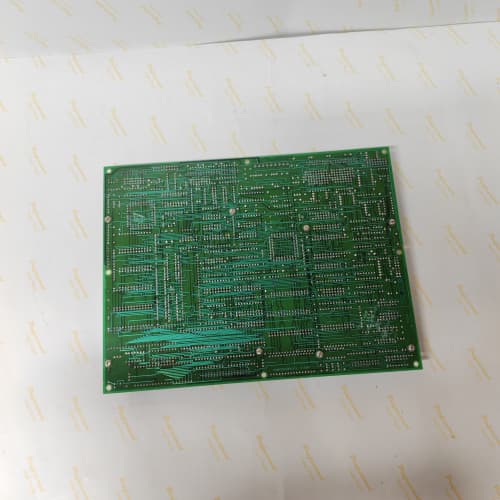

GE 531X207LCSAFG1 In Stock | NOS High-Speed Weighing PCB

Description

Product Introduction

Dynamic weighing—filling lines, checkweighers, and fast-moving conveyors—needs high-speed load cell sampling. The 531X207LCSAFG1 samples at 1 kHz, capturing weight changes that slower boards miss.

The AFG1 is the high-speed load cell/scale control board for the 2070 platform. It replaced the AEG1, which had 100 Hz sampling. GE increased the sampling rate to 1 kHz, kept the 0.02% accuracy, and added a high-speed ADC. I’ve used the AFG1 on a high-speed filling line—the board captured weight changes in 2 ms, ensuring accurate fill weights at 120 bottles per minute.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

Incoming Verification
We match the OEM packing slip against GE’s production records—AFG1 boards were produced from 2013 through 2015. Anti-counterfeit check: authentic boards have a high-speed ADC (Analog Devices AD7606) with the ADI logo. Visual inspection: we check the connectors for bent pins. Accessories: we inventory the calibration plug and the 8 jumper shunts.

Live Functional Test
Test rack: a GE 2070 drive simulator with a Fluke 5520A calibrator (0.005% accuracy) and a Keysight 34465A multimeter. Power-up: 5 V and 24 V supplies from a Lambda GEN-60. LED D1 (green) comes on; D2 flashes at 1 kHz during load cell activity; D3 flashes during control activity; D4 stays off.

Speed test: we step the load cell input from 0 to 5 mV—the board must reach 90% of the final value within 2 ms. Load cell accuracy test: we inject 0, 1, 2, 3, and 5 mV—the reading must be within 0.02%. Analog output test: we command 0–10 V—must be within 0.1%. Mass flow test: we verify the PID output. Isolation test: we apply 2,500 V for 1 minute—no breakdown.

Electrical Parameters
Insulation resistance: 500 V megger—>20 MΩ. Ground continuity: <0.1 Ω. Reference voltage: we verify the reference at 2.500 V ±0.001 V.

Firmware Verification
We read the firmware version—the AFG1 runs firmware v3.06 or later.

Final QC & Packaging
QC engineer signs off. Calibration certificate included. Anti-static bag with desiccant. Two layers of ESD foam, then a carton. “QC Passed” label with test date, firmware version, and inspector ID.

Field Replacement Pitfalls

1. Load Cell Excitation—5 V or 10 V
Set the excitation to match the load cell’s rating. ❗

2. Load Cell Wiring—4-Wire or 6-Wire
For 6-wire cells, connect the sense lines for lead resistance cancellation.

3. Sampling Rate—1 kHz Fixed
The AFG1’s sampling rate is fixed at 1 kHz. If the application needs 2 kHz, this is the wrong board.

4. PID Tuning—Start with Conservative Gains
The PID is aggressive. Start with low gains and increase gradually.

5. Ground Loops—Single-Point Grounding
The load cell inputs are differential. Use single-point grounding.

New Original vs. Refurbished: Why It Matters

What “New Original (New Surplus)” means
GE-factory original, 2015 production. The high-speed ADC is fresh. The 2 ppm/°C reference is factory-tested.

Refurbished risk in plain terms
The high-speed ADC degrades with age—a refurbished board might have reduced sampling rate. The reference drifts—we measured a refurbished board with a 0.01% offset.

Real cost of a refurbished failure
A high-speed filling line misses a weight change—the fill weights are off, and the product is rejected. Cost: 25,000. The refurbished AFG1 cost 1,600; the new surplus board costs 2,000. Pay the 400.

What we provide as proof
Original GE box label photo. Speed test passed (1 kHz). Load cell accuracy verified. Calibration certificate. Anti-static bag sealed.

Performance Benchmarks & Test Results

All tests run on a GE 2070 drive simulator, ambient 25 °C ±1 °C, 5.00 V DC logic supply, firmware v3.06.

Field reality: The AFG1 is a high-speed load cell/scale control board—8 load cell inputs (1 kHz sampling), 4 analog outputs, 8 digital I/O, 0.02% accuracy, and 2,500 V isolation. We’ve used it on high-speed filling lines and dynamic weighing applications. The 1 kHz sampling is the key—it captures weight changes that slower boards miss. The AFG1 is a reliable high-speed load cell/scale control board for dynamic weighing applications.
