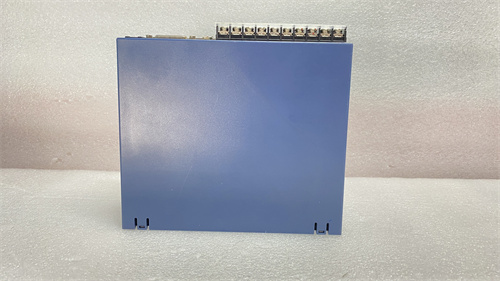

YOKOGAWA SR1030B62

Description

YOKOGAWA SR1030B62 is a digital indicating controller, likely from the YS series, designed for precise process control and monitoring in industrial applications. This instrument from Yokogawa serves as a compact, standalone controller that receives sensor signals, displays the process value, and outputs a control signal to maintain a desired setpoint. Detailed technical specifications can be found on the product page: YOKOGAWA SR1030B62. The versatility and reliability of the YOKOGAWA SR1030B62 make it a cornerstone for simple to medium-complexity control loops across various industries.

Product Description

The YOKOGAWA SR1030B62 is a sophisticated, microprocessor-based indicating controller that integrates measurement, display, and control functions into a single, DIN-sized unit. It is designed to accept inputs from a wide range of sensors, including thermocouples, RTDs (Resistance Temperature Detectors), and analog current/voltage signals. The SR1030B62 features a clear digital display for showing the measured process variable (PV), the target setpoint (SV), and other parameters. Its core function is to execute a control algorithm (typically a standard PID algorithm) and generate a corresponding output signal—such as a 4-20 mA current or a relay contact—to drive a final control element like a valve or heater. The YOKOGAWA SR1030B62 embodies the brand’s commitment to precision and user-friendly operation in process automation.

Product Parameters

• Brand and Manufacturer: YOKOGAWA.
• Series/Model: Likely part of the YS-100, YS-150, or similar series of digital controllers.
• Input Types: Universal input supporting various thermocouple types (J, K, T, etc.), RTDs (Pt100), DC current (4-20 mA), and DC voltage.
• Control Output: Dependent on the specific suffix (B62), but common outputs include 4-20 mA (transistor), relay (for on/off control), or SSR drive.
• Control Action: PID (Proportional-Integral-Derivative) with auto-tuning and manual modes.
• Display: Dual or quad digital LED/LCD display showing PV, SV, and output value.
• Auxiliary Outputs: May include one or more alarm/event relay outputs for setpoint deviation or process alarms.
• Communications: Optional or built-in serial communication (e.g., RS-485) for integration into monitoring systems, depending on the variant.
• Power Supply: Typically 100-240 V AC or 24 V DC.
• Mounting: Standard 1/4 DIN (96×96 mm) or 1/8 DIN (48×96 mm) panel cutout.

Advantages and Features

The primary advantage of the YOKOGAWA SR1030B62 is its exceptional accuracy, stability, and ease of use from a world-leading instrumentation brand. It offers advanced PID control with auto-tuning, which simplifies commissioning by automatically calculating optimal control parameters. The controller provides high immunity to electrical noise, ensuring reliable operation in industrial environments. Features often include flexible alarm configurations, square root extraction for flow applications, and input sensor break detection. The intuitive front-panel interface of the SR1030B62 allows for straightforward configuration and operation. Its rugged construction and proven design ensure long-term durability and minimal maintenance, making the YOKOGAWA SR1030B62 a dependable choice for continuous process control.

Application Cases in Various Fields

• Temperature Control in Plastics Processing: Precisely controlling barrel and mold temperatures on injection molding machines or extruders.
• Heat Treatment and Furnace Control: Managing temperature profiles in industrial ovens, kilns, and heat treatment furnaces.
• HVAC and Building Automation: Regulating temperature and pressure in large commercial heating, ventilation, and air conditioning systems.
• Water and Wastewater Treatment: Controlling parameters like pH, level, or flow rate in treatment process stages.
• Industrial Machinery: Providing precise control for packaging machines, food processing equipment, and environmental test chambers.

Comparison with Competing Products

Compared to similar digital controllers from competitors like OMRON (ESCC), Fuji Electric (PX series), or Eurotherm (3200 series), the YOKOGAWA SR1030B62 is distinguished by its strong reputation for measurement precision and control quality. Yokogawa controllers are often perceived as having superior algorithms for difficult-to-control processes. While competitors may offer comparable feature sets and sometimes a lower initial cost, the SR1030B62 excels in long-term stability and accuracy. It is a strong competitor in the mid-to-high range of the market, where performance and reliability are prioritized over absolute lowest cost.

Selection Suggestions and Precautions

1. Confirm Exact Specifications: The suffix “B62” is critical. Verify the exact input type, output type (e.g., relay, 4-20mA), power supply, and communication options of this specific SR1030B62 variant against your application needs.
2. Sensor Compatibility: Ensure the controller’s universal input is configured for your specific sensor type (e.g., K-type thermocouple, Pt100 RTD) and measurement range.
3. Output Matching: Select the output type that matches your final control element. A relay output is for on/off control of contactors/heaters, while a 4-20 mA output is for modulating control valves or variable speed drives.
