YOKOGAWA PW441-10

Description

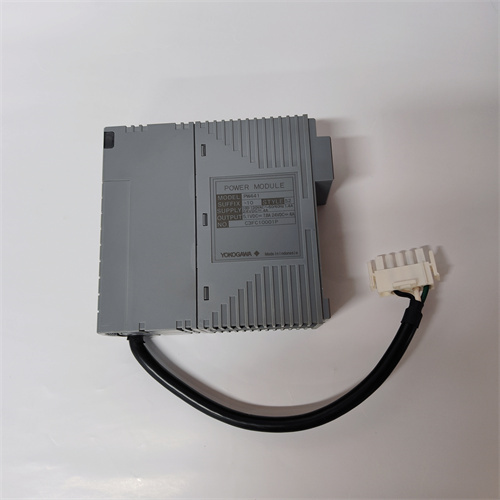

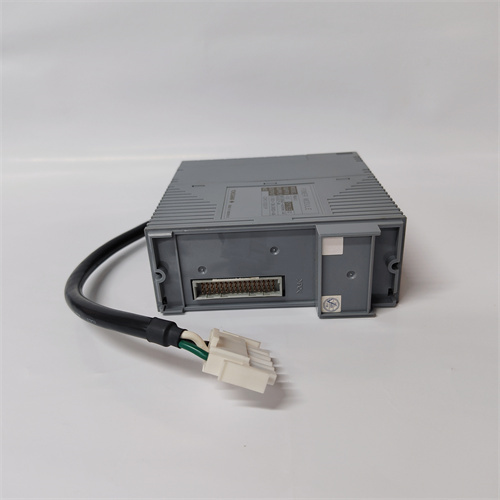

Product Description: Power Supply Module YOKOGAWA PW441-10

The YOKOGAWA PW441-10 is a dedicated power supply module designed for integration within Yokogawa’s control system cabinets, most notably for the CENTUM series Distributed Control Systems (DCS) such as CENTUM VP or CENTUM CS 3000. This module is responsible for converting incoming AC mains power into clean, regulated, and isolated DC power required by the sensitive electronic components of a Field Control Station (FCS) or other system units, including processor cards, I/O modules, and communication interfaces. As a foundational component, the reliable operation of the YOKOGAWA PW441-10 is paramount to the stability of the entire control station. Access detailed electrical and mechanical specifications on the official page: YOKOGAWA PW441-10. For system architects and maintenance engineers, specifying the correct YOKOGAWA PW441-10 ensures compliance with the system’s power architecture and safety standards.

Key Parameters

• Primary Function: AC/DC Power Supply Module for system rack. It provides the internal DC power bus for the control system’s electronics.
• Input Voltage: Typically designed for a standard industrial single-phase or three-phase AC input voltage range (e.g., 100-120V AC or 200-240V AC, 50/60 Hz), ensuring global applicability.
• Output Specifications: Supplies one or more precisely regulated DC voltage rails. Common outputs include +5V for logic circuits, ±15V for analog circuitry, and +24V for field I/O circuits. The ‘-10’ suffix may indicate a specific power rating or output configuration.
• Mounting and Form Factor: Engineered to mount into a dedicated slot or position within a CENTUM system cabinet or FCS backplane assembly. It features connectors that interface directly with the cabinet’s internal power distribution system.
• Protections and Monitoring: Incorporates comprehensive protection mechanisms such as overcurrent (OCP), overvoltage (OVP), and overtemperature (OTP) protection. It includes status indicators (LEDs) for power good, load, and fault conditions to facilitate quick diagnostics.
• Redundancy Support: In configurations demanding high availability, two YOKOGAWA PW441-10 modules can often be installed in a parallel, redundant (1+1) configuration with automatic load sharing and failover, ensuring uninterrupted power supply.

Advantages and Features
The core advantage of the YOKOGAWA PW441-10 is its guaranteed compatibility, performance, and reliability within the Yokogawa DCS ecosystem. It is meticulously designed to meet the exact ripple, noise, and load transient requirements of the associated controller and I/O modules, which is critical for measurement accuracy and stable digital operation. Utilizing the official YOKOGAWA PW441-10 module ensures electromagnetic compatibility (EMC), fulfills all safety certifications, and enables features like hot-swap capability (if designed) and seamless communication of status to the control system’s health monitoring functions. Its robust construction is validated for continuous 24/7 operation in industrial control room environments.

Application Case Studies in Various Fields

• DCS Field Control Station Core Power: Serving as the primary or redundant power source for a CENTUM VP Field Control Station in a refinery, managing power distribution to the CPU, memory, and all associated I/O cards.
• System Cabinet Infrastructure: Providing conditioned and fused DC power to all components within a CENTUM junction cabinet, including network switches, system monitors, and auxiliary cards.
• Remote I/O Enclosure Power: Used in field-mounted enclosures housing remote I/O units (like those for Stardom or older CENTUM systems) to provide local, clean, and reliable power conversion close to the process.
• System Modernization and Lifecycle Support: Replacing aging or faulty power supply units in legacy CENTUM CS 1000 or CS 3000 systems during upgrade projects to restore reliability and extend operational life.
• Critical Process Industries: Any continuous process where a power supply failure would cause a plant trip, such as in petrochemical cracking units, nuclear power plant control systems, or large pharmaceutical batch processes.

Comparison with Competing Products
The YOKOGAWA PW441-10 is a proprietary OEM component. Its comparison is not against other brands’ power supplies but against alternative sourcing options:

1. Generic Industrial Power Supplies: While potentially cheaper, these lack the specific form factor, connectors, monitoring interface, and performance profile required for direct replacement. Their use can void system warranties, introduce instability, and complicate diagnostics.
2. Third-Party “Compatible” or Refurbished Units: These carry significant risk. They may not meet original performance specifications, have outdated or unsafe components, and lack proper safety certifications, posing a serious risk to system integrity and personnel safety.
   The value of the genuine YOKOGAWA PW441-10 lies in its certified performance, guaranteed compatibility, and full support from Yokogawa, which are critical for minimizing operational risk and ensuring plant availability.

Selection Suggestions and Important Precautions

1. Exact Replacement Verification: The part number YOKOGAWA PW441-10 must be an exact match to the module being replaced. Always cross-reference with the failed unit’s label and the system’s hardware configuration manual. Suffix variations are significant.
2. Assess System Power Budget: Before replacement, verify the total power consumption of the cabinet or station. Ensure the output capacity of the YOKOGAWA PW441-10 is sufficient, especially if the system has been expanded since its original design.
3. Prioritize Redundancy for Critical Nodes: For control stations where a power supply failure would cause a process shutdown, design and implement a redundant power configuration from the outset using paired YOKOGAWA PW441-10 modules.
4. Follow Strict Safety Procedures: Replacement involves hazardous voltages. Adhere to lock-out/tag-out (LOTO) procedures. Ensure the entire cabinet is de-energized, and verify that bus capacitors are fully discharged before handling the module.
5. Procure from Authorized Sources Only: To avoid counterfeit or substandard products that can lead to catastrophic failure, purchase the YOKOGAWA PW441-10 exclusively from authorized Yokogawa distributors or directly from Yokogawa. After installation, perform a comprehensive system check, verifying all output voltages are within specification before returning the station to service.
