YOKOGAWA CP451-10

Description

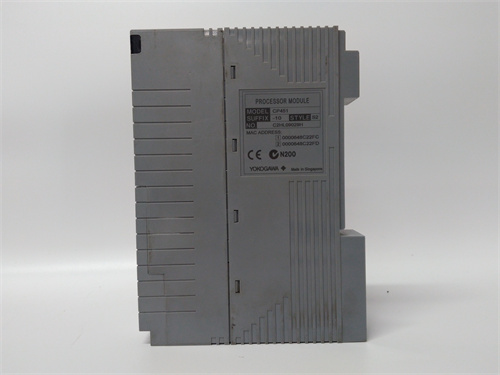

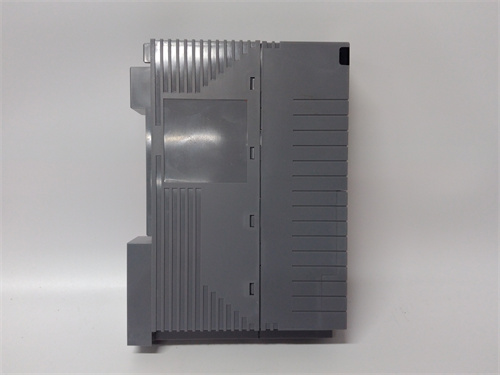

Product Description: Communication Processor Module YOKOGAWA CP451-10

The YOKOGAWA CP451-10 is a vital communication processor module for Yokogawa’s CENTUM VP Distributed Control System (DCS). It functions as a sophisticated network interface and protocol gateway, enabling seamless data exchange between the CENTUM VP control network and various subordinate field networks, subsystems, or third-party devices. By offloading communication tasks from the main controller, the YOKOGAWA CP451-10 enhances system performance and scalability. For full technical specifications and compatibility details, refer to the product page: YOKOGAWA CP451-10. Integrating the YOKOGAWA CP451-10 is a common strategy for building unified plant control architectures, allowing a CENTUM VP system to act as the operational hub.

Key Parameters

• Primary Function: Acts as a Field Network Unit (FNU) communication processor or a gateway module. It typically manages the connection between the high-speed control network (Vnet/IP) and one or more field-level networks.
• Supported Networks/Protocols: Commonly supports Yokogawa’s legacy or proprietary field networks such as the Ethernet for Control Network (ECN) and the STARDOM FCN/FCJ controller network. It may also support standard protocols like Modbus TCP/IP or Modbus RTU for connecting to PLCs, analyzers, or other subsystems.
• Processing Power: Contains its own dedicated CPU and memory to handle communication processing, protocol conversion, and data mapping independently, without burdening the main station’s resources.
• Mounting and Interface: Installs into a specific slot within a CENTUM VP Field Control Station (FCS) or a dedicated communication rack. Features multiple network ports (e.g., Ethernet RJ45, serial ports) for physical connections.
• Configuration: Requires setup and mapping within the CENTUM VP engineering environment (System View). Engineers define the data exchange points between the CENTUM database and the addresses on the connected sub-network.

Advantages and Features
The core advantage of the YOKOGAWA CP451-10 is its ability to seamlessly integrate heterogeneous devices and subsystems into the unified CENTUM VP operator interface and engineering environment. This eliminates the need for separate workstations or complex custom interfaces for different equipment. By handling communications locally, the YOKOGAWA CP451-10 improves system responsiveness and reliability. Its use is crucial for modernizing plants where legacy Yokogawa equipment (like older STARDOM controllers) must coexist with a new CENTUM VP system, making the YOKOGAWA CP451-10 a key component for migration and expansion projects.

Application Case Studies in Various Fields

• Integrated Plant Modernization: Connecting legacy CENTUM CS 3000 or STARDOM FCJ remote I/O nodes to a new CENTUM VP system, allowing phased replacement without loss of functionality.
• Utility and Package Unit Integration: Acting as a gateway to bring independent packaged systems (e.g., compressor control panels, boiler PLCs) using Modbus into the main DCS for centralized monitoring and control.
• Batch and Discrete Control Links: Facilitating data exchange between the continuous process DCS (CENTUM VP) and separate batch management or manufacturing execution systems (MES) over industrial Ethernet.
• Oil & Gas Offshore: Integrating subsea control modules or remote wellhead PLCs with the platform’s main DCS for comprehensive supervisory control.
• Water Treatment: Connecting to independent filter backwash PLCs or pumping station RTUs to create a plant-wide SCADA view within the DCS.

Comparison with Competing Products
The YOKOGAWA CP451-10 competes with communication processors from other DCS vendors (e.g., Emerson’s DeltaV CHARMs I/O with various communication cards, Siemens PCS 7 Link modules). Its primary distinction is its optimized performance and native support for Yokogawa’s proprietary networks (ECN, FCN), which is unsurpassed for integrating Yokogawa’s own product families. Compared to using a generic third-party protocol gateway, the YOKOGAWA CP451-10 offers tighter integration, simpler configuration within the native engineering tool, and direct support from Yokogawa, though it may be less flexible for non-standard protocols.

Selection Suggestions and Important Precautions

1. Confirm Specific Protocol Support: Before specifying, verify the exact network types and protocol versions (e.g., ECN version, Modbus variant) supported by the YOKOGAWA CP451-10 model you are ordering.
2. Assess Network Load and Performance: Evaluate the data update requirements and volume of the connected subsystems to ensure the processing capability of the YOKOGAWA CP451-10 is sufficient for the application’s real-time needs.
3. Plan for Redundancy: For critical communication paths, check if a redundant pair of YOKOGAWA CP451-10 modules can be configured to ensure high availability.
4. Understand Data Mapping Complexity: The engineering effort for configuring the data exchange points between systems can be significant. Ensure your team has the necessary CENTUM VP engineering skills or partner support.
5. Firmware and Compatibility: Always use the firmware version for the YOKOGAWA CP451-10 that is certified compatible with your specific version of the CENTUM VP software and the connected subsystems. Incorrect firmware can cause communication failures. Procure this specialized module only from authorized Yokogawa distributors.
