YOKOGAWA AIP171

Description

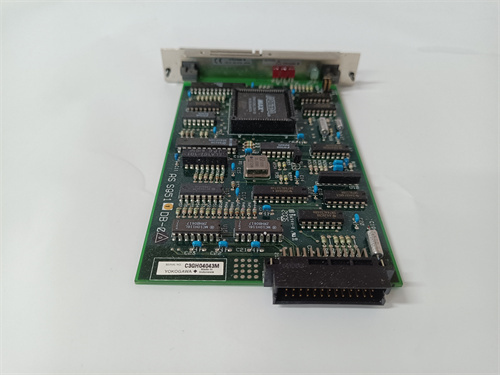

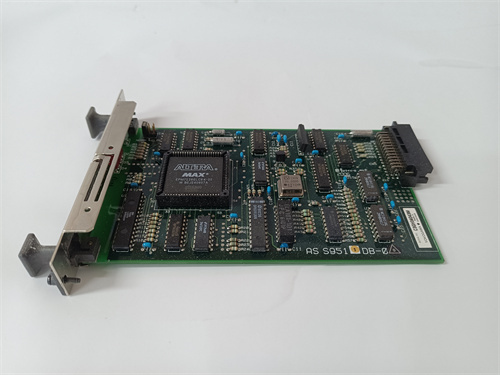

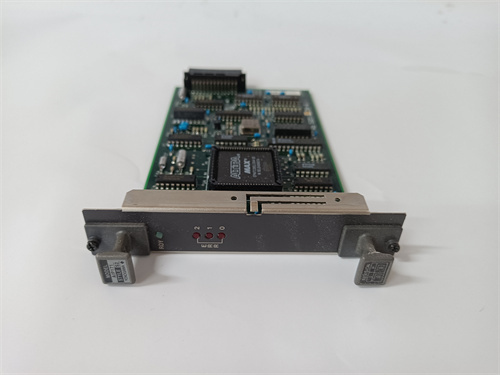

Product Description: I/O Module YOKOGAWA AIP171

The YOKOGAWA AIP171 is an analog input processor module from Yokogawa’s FA-M3V series, a versatile and high-performance Programmable Logic Controller (PLC) platform. This module serves as a critical interface between the PLC’s central processing unit and the analog sensors in the field, converting real-world continuous signals into precise digital data for logic execution, control, and monitoring. As a core component of the FA-M3 system, the YOKOGAWA AIP171 enables sophisticated process control capabilities within a PLC architecture. You can review its detailed technical specifications on the official product page: YOKOGAWA AIP171. Implementing the YOKOGAWA AIP171 is essential for applications requiring accurate measurement of variables like temperature, pressure, and flow within a high-speed control system.

Key Parameters

• Signal Type: Analog Input (AI). Designed to accept standard DC current or voltage signals from field transmitters and sensors, most commonly the 4-20 mA industry standard.
• Channel Configuration: Typically provides multiple isolated input channels (e.g., 8 channels) per module, allowing for efficient gathering of data from several points. Channels are usually individually configurable for different signal types and ranges.
• Isolation: Features channel-to-channel isolation and isolation between the field input circuits and the internal PLC bus. This prevents ground loops, suppresses electrical noise, and protects the sensitive PLC electronics from high-voltage transients.
• Resolution and Conversion Speed: Employs high-resolution analog-to-digital conversion (e.g., 16-bit) for accurate measurement. It also offers a fast conversion speed, which is critical for high-speed control loops and data acquisition.
• Data Format and Scaling: Converts the analog signal into a digital value (e.g., 0-4000, -20000 to 20000) that can be directly used in the PLC’s ladder logic or function block programs. Onboard intelligence allows for scaling into engineering units (like °C, kPa).
• Compatibility and Mounting: Installs directly into the I/O slots of an FA-M3V base unit or extension rack. It communicates with the CPU via the high-speed V-Bus backplane.

Advantages and Features
The primary advantage of the YOKOGAWA AIP171 is its seamless integration and high performance within the FA-M3V PLC ecosystem. It combines Yokogawa’s expertise in precise measurement with the deterministic execution and programming flexibility of a leading PLC platform. The module’s high resolution and speed make it suitable for demanding applications beyond simple monitoring, such as closed-loop PID control directly within the PLC. Its diagnostic capabilities, including open wire detection, enhance system maintainability and reliability. For engineers building complex machine control or batch process systems with a PLC, the YOKOGAWA AIP171 provides a trusted and capable analog interface.

Application Case Studies in Various Fields

• Advanced Machine Control: Precisely controlling the temperature of extruder barrels, injection molding machines, or heat treat ovens by reading thermocouple signals (via transmitters) and executing PID control logic in the FA-M3V PLC.
• Factory Automation and Process Skids: Monitoring multiple pressure, level, and flow points on a chemical dosing skid, packaging machine, or automated assembly line.
• Energy Management and Utilities: Acquiring analog signals from power monitors, flow meters for steam/cooling water, and temperature sensors to optimize energy consumption in a manufacturing plant.
• Water Treatment Control: Measuring pH, conductivity, tank levels, and pump pressures in automated treatment and filtration systems.
• Test and Measurement Stands: Providing high-speed, multi-channel data acquisition for product testing or quality assurance rigs controlled by a PLC.

Comparison with Competing Products
The YOKOGAWA AIP171 competes directly with high-performance analog input modules from other major PLC manufacturers, such as Siemens (SM331 for S7-300/400), Rockwell Automation (1756-IF8 for ControlLogix), and Schneider Electric (BMXAMI0410 for Modicon M340). Its key differentiator is its optimized performance within the FA-M3V platform, known for its high-speed processing and motion control capabilities. While electrical specifications may be similar, the YOKOGAWA AIP171 offers the assurance of full compatibility, streamlined configuration within Yokogawa’s programming software (GX Works or similar), and access to Yokogawa’s specialized support for complex control applications.

Selection Suggestions and Important Precautions

1. Verify Exact Model and Range: The base model YOKOGAWA AIP171 may have sub-variants for specific input ranges (current/voltage). Confirm the exact ordering code matches your sensor output specifications.
2. Calculate Backplane Load: The FA-M3V system has limits on the number and type of modules per rack. Ensure the addition of the YOKOGAWA AIP171 does not exceed the power supply and backplane current capacity of the base unit or extension rack.
3. Plan for Electrical Noise: For installations in electrically noisy environments (near VFDs, large motors), ensure proper use of shielded cables grounded at one end. The module’s isolation is effective but should be supported by good installation practices.
4. Configure Scaling and Alarms: Utilize the module’s intelligent features by configuring scaling and high/low alarms directly in the hardware configuration of the PLC project. This offloads simple logic from the main CPU scan.
5. Consider Sampling Synchronization: For applications where multiple analog values must be sampled at the exact same instant, investigate the FA-M3V system’s synchronous processing features and how the YOKOGAWA AIP171 module’s conversion cycle aligns with them. Procure the module from authorized Yokogawa distributors. Always perform a loop check (simulating 4mA, 20mA) after installation to verify wiring and configuration. Document all scaling parameters in the control system documentation.
