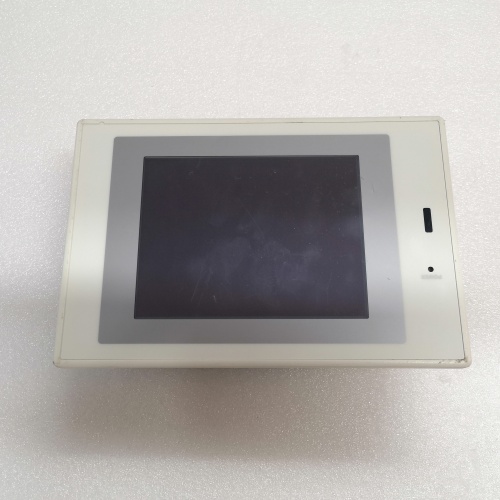

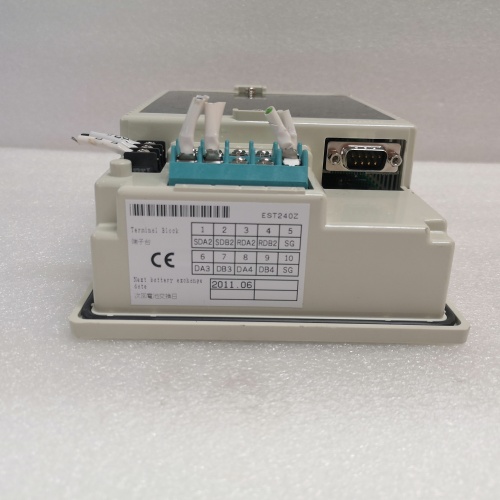

YAMATAKE EST0240Z05WBX00 | Digital Indicator, 48×96 mm

Description

Product Introduction

That pharmaceutical plant in New Jersey—the one with the cleanroom suites and the 24/7 HVAC schedule—they called me in because their “critical room pressure” displays kept going blank. Turned out the maintenance crew had been replacing failed units with whatever the local electrical supply had in stock. None of them matched the scaling. The YAMATAKE EST0240Z05WBX00 they originally spec’d? Still sitting in a cabinet, working fine after twelve years.

The YAMATAKE EST0240Z05WBX00 is a 1/8 DIN digital indicator built for one job: take a 4-20 mA signal, scale it in engineering units, and show it on a big, no-nonsense LED display. No bargraph, no touchscreen, no Modbus—just a red or green (this one’s green) 4-digit readout that you can read from across a control room. Inside, a simple microcontroller does the scaling, and optional alarm relays can trip if the value goes out of bounds. It’s the kind of instrument that disappears into the panel and does its job for decades. Yamatake—now Azbil—built these for the Japanese semiconductor fabs back in the ’90s, which means they tolerate dirty power, vibration, and the occasional splash of water (NEMA 4X front) without complaint.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

These indicators are simple, but simple doesn’t mean we skip steps. Here’s the routine.

1. Incoming Verification
   • Match the model number against the packing list—EST0240Z05WBX00 decodes as: EST series, 24 V DC, green display, dual alarms, standard function.
   • Inspect the front lens: no scratches, no yellowing of the plastic.
   • Check the case for warping—sometimes old stock gets stored near heat.
2. Live Functional Test
   • Power up with 24 V DC from a regulated lab supply.
   • Apply 4 mA from a Fluke 753 calibrator—display reads 0000 (or the user’s preset zero).
   • Ramp to 20 mA—display climbs smoothly, no missing segments, no flicker.
   • Test scaling by programming a custom range (e.g., 4 mA = 0.0 bar, 20 mA = 10.0 bar).
   • If equipped with alarms: set trip points, force input past the threshold, verify relay clicks and LED illuminates.
3. Electrical Parameters
   • Measure input current at 12 mA—voltage drop across the 50 Ω resistor should be 0.6 V.
   • Check power supply current draw at 24 V—should be under 250 mA.
   • Insulation resistance: 500 V megger between power terminals and ground—>20 MΩ.
4. Firmware / Configuration
   • No firmware to read, but we photograph the scaling parameters if they’re pre-programmed per customer request.
   • Reset to factory defaults before shipping unless told otherwise.
5. Final QC & Packaging
   • Affix a QC sticker with test date.
   • Wrap in anti-static bag (yes, even though it’s just a display).
   • Pack in original box if available, otherwise double-box with foam.
   • Calibration certificate available for an additional fee—includes as-found and as-left data.

Field Replacement Pitfalls

I’ve swapped out dozens of these. The mistakes are always the same.

❗Loop Power Confusion
The EST0240Z05WBX00 does NOT provide 24 V DC for the transmitter. It’s a 50 Ω resistor across the loop. If you wire a two-wire transmitter directly to it without an external supply, nothing happens—display reads zero, transmitter sits dead. You need a 24 V supply in series, or a loop-powered isolator.

Scaling Through the Front Panel
The programming sequence is not intuitive. Hold the SET key for three seconds, then use the UP/DOWN arrows to adjust each digit. First-timers often hit SET again too fast and exit without saving. We include a quick-reference card with every unit—keep it inside the panel door.

Alarm Relay Wiring
The alarm contacts are rated for 3 A, but they’re tiny. If you switch a contactor coil directly, the inductive kick will weld the contacts shut in a month. Use an interposing relay—always.

Mounting Gasket
The IP66 front seal depends on that foam gasket. If the panel cutout is rough, or if the gasket gets pinched during installation, water gets in. We’ve seen green fuzz growing on the circuit board. Take your time fitting it.

Power Supply Polarity
24 V DC terminals are marked, but the internal rectifier will handle reverse polarity—it just won’t power up. Swap the wires, and you’ll spend ten minutes troubleshooting a “dead” unit.

Get these five right, and this indicator will outlast the machine it’s mounted on.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this indicator was manufactured by Yamatake (Azbil), shipped in OEM packaging, and never installed. The electrolytic capacitors in its power supply have zero hours, the display has no burn-in, and the serial number traces back to a specific production batch.

Refurbished risk in plain terms
A refurbished digital indicator often comes from a production line that ran three shifts for fifteen years. The display might be dim—phosphor aging is real. The buttons might be mushy from a million presses. Worst case: the power supply caps are dried out, and the unit fails six months after installation. With a display, you can’t see that coming until it’s dead.

Real cost of a refurbished failure
If this indicator is monitoring critical furnace temperature or tank level, a blank screen means an operator has to walk over and read a local gauge. For twenty minutes, until a replacement arrives. On a 24-hour process, that’s lost data, potential quality issues, and maybe a safety violation.

What we provide as proof

• OEM box (or photos of it).
• Serial number recorded—Azbil can sometimes trace it if needed.
• Test report showing scaling accuracy at 4, 12, and 20 mA.
• A QC sticker with the date.
• 12‑month warranty—no questions asked if it fails.

Pricing context
Our price sits 25% above the cheapest “pulled” units and 20% below Azbil’s last‑known list. That difference buys you a fresh power supply, a guaranteed‑bright display, and a warranty that actually covers return freight.

Performance Benchmarks & Test Results

*Test conditions: 24.0 V DC supply, ambient 23 °C, input from Fluke 753, scaling set to 4 mA = 0, 20 mA = 1000.*

We keep a photo of every unit under test—ask, and we’ll email it.
