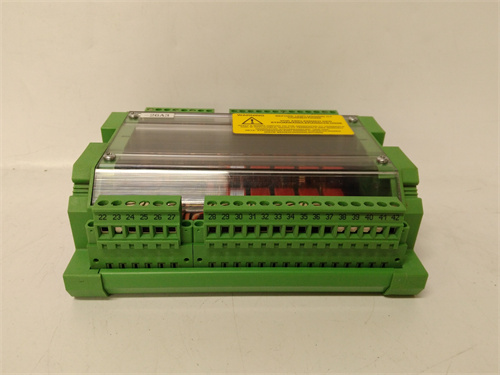

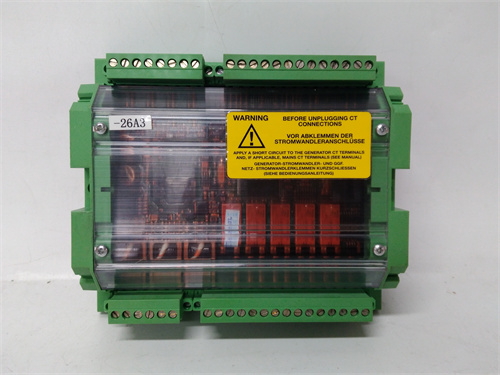

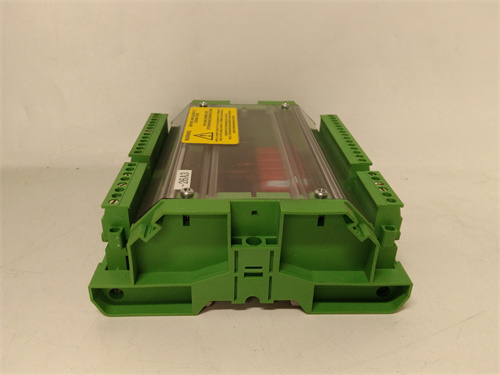

WOODWARD 8444-1067

Description

Product Overview

The WOODWARD 8444-1067 is a highly specialized and critical component: a Printed Circuit Board (PCB) Assembly for a Woodward industrial turbine or engine control system, most likely from the Peak 150 digital control series or a related legacy product line. This module is not a generic PLC part but a proprietary control card that functions as a digital speed/load controller, analog interface board, or communication processor within a larger governing system. Its primary function is to execute complex control algorithms for managing the speed, load, and auxiliary functions of gas turbines, steam turbines, or diesel engines, ensuring stable and efficient operation under varying conditions. For detailed technical schematics, cross-reference data, and legacy support documentation, please refer to the official product resource: WOODWARD 8444-1067. The WOODWARD 8444-1067 is essential for maintaining the precise control required by prime movers in critical power generation and mechanical drive applications.

Product Parameters and Specifications

• Function: Control PCB for Turbine/Engine Governor (e.g., Speed/Load Control, I/O Interface).
• System Compatibility: Designed for a specific Woodward control platform, such as the Peak 150 digital control.
• Core Components: Contains microprocessors, memory, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and discrete I/O interfaces tailored for turbine control signals (speed sensors, actuator feedback, temperature inputs).
• Control Algorithms: Executes proprietary Woodward control logic for isochronous speed control, droop load sharing, and acceleration/deceleration rate limiting.
• Communication: May include serial communication ports (RS-232/485) for configuration with Woodward’s Toolkit software and for interfacing with plant DCS/SCADA.
• Connectors: Features high-density, specialized connectors for interfacing with other cards in the chassis (backplane), field wiring terminals, and sensor inputs.
• Form Factor: A printed circuit board designed to slot into a specific position within a dedicated Woodward control chassis.

Advantages and Key Features

The WOODWARD 8444-1067 offers the key advantage of being a genuine, application-engineered replacement part for a legacy Woodward control system. Its use ensures the restoration of original equipment performance and reliability, which is critical for high-value rotating machinery. The module contains the proprietary control firmware and calibration data specific to the turbine or engine application, guaranteeing that speed governing, load sharing, and protection functions behave exactly as designed. It provides deterministic, real-time control performance necessary for stable turbine operation during transients. Utilizing the genuine WOODWARD 8444-1067 board preserves the safety certifications and OEM support for the control system, which is vital for compliance in regulated industries like power generation.

Application Cases in Industry

This control board is found exclusively in systems where Woodward governors are deployed. In Power Generation, it is part of the control system for gas turbine generator sets (simple or combined cycle), providing grid-frequency matching and load dispatch. For Oil & Gas, it controls gas turbines driving compressors on pipelines or mechanical drive turbines in LNG plants. In Marine Propulsion, it governs the speed of diesel engines or turbine-driven propellers. The WOODWARD 8444-1067 is also used in Industrial Co-Generation facilities and on Test Stands for engine development. Its failure can lead to an immediate unit trip, making it a critical spare part.

Comparison with Competing Products

1. Genuine Woodward Spare (this board): Guarantees 100% compatibility with the existing hardware chassis, firmware, and Woodward Toolkit software. It is the only fully supported option.
2. Third-Party Refurbished Board: May be available but carries high risk. Refurbishment quality varies, and subtle faults in components like capacitors or memory can cause erratic control behavior or latent failures. Firmware/calibration may not match the original.
3. Control System Retrofit/Upgrade: The alternative is to replace the entire legacy Woodward control with a modern digital governor (e.g., a newer Woodward product or from a competitor like GE, ABB, or Rolls-Royce). This is a major engineering project with high cost but offers modern features and long-term support.

The WOODWARD 8444-1067 exists in a market defined by the need to maintain legacy control systems for the remaining life of expensive turbomachinery assets.

Selection Suggestions and Precautions

• Selection Advice:
  1. Exact Part Number Verification is Critical: The part number 8444-1067 must be an exact match from the label on the failed board. Even minor deviations indicate a different revision.
  2. Identify the Host System: Document the complete control system model (e.g., Peak 150), chassis serial number, and the turbine/engine model it controls. This information is crucial for the supplier.
  3. Software and Configuration Backup: Before removing the old board, use Woodward Toolkit software to back up all configuration parameters and control setpoints from the unit. This data is essential for commissioning the replacement 8444-1067.
  4. Source from Authorized Specialists: Purchase only from Woodward’s official parts distribution or from highly reputable, authorized distributors specializing in turbine control spares with a proven testing process.
• Important Precautions:
  1. Complete Unit Shutdown and Isolation: The turbine or engine must be completely shut down, and all power supplies to the control cabinet must be disconnected and locked out (LOTO). The system may have multiple power sources (AC, DC).
  2. Extreme ESD Care: This is a highly static-sensitive assembly. Use a grounded wrist strap and handle the board only by its edges, preferably on an anti-static mat. Store and transport in an anti-static bag.
  3. Handling and Connection: When installing the new board, ensure it is perfectly aligned with the guide rails and connectors in the chassis. Do not force it. Ensure all connectors are fully seated.
  4. Commissioning and Validation: After installation, the system must be meticulously recommissioned. This includes restoring the configuration backup, verifying all I/O points, performing actuator calibration, and conducting controlled speed/load tests under Woodward’s procedures. Do not assume plug-and-play operation.
