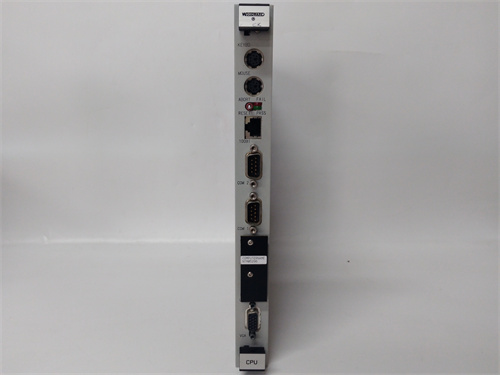

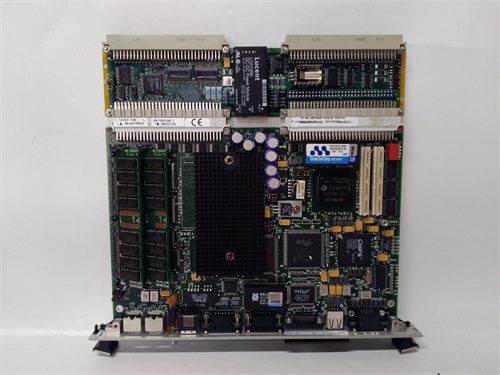

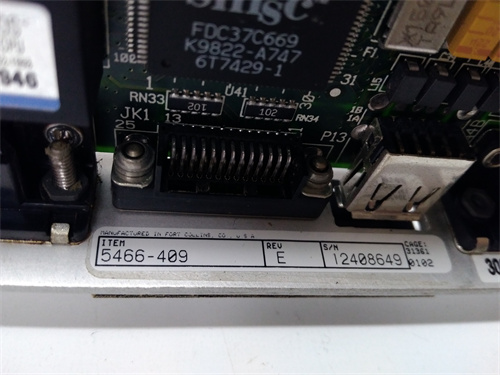

WOODWARD 5466-409

Description

Product Overview and Introduction

The WOODWARD 5466-409 is a specialized industrial control module, specifically identified as an Actuator Driver Card. This module is a critical component within Woodward’s renowned line of digital governors and control systems for prime movers such as gas turbines, steam turbines, and diesel engines. The primary function of the WOODWARD 5466-409 is to serve as the intelligent interface between the governor’s control logic and the electro-hydraulic actuator or servo valve that physically positions fuel racks or inlet valves. It converts low-power control signals into the high-power drive signals necessary for precise actuator movement, thereby directly controlling the speed, load, and pressure of the machine.

Detailed Product Parameters and Specifications

The operational parameters of the 5466-409 are defined by its role as a power output stage:

• Primary Function: Actuator Drive / Servo Valve Driver Card. It amplifies control signals to drive proportional valves or linear variable differential transformer (LVDT) feedback-based actuators.
• Input Signals: Accepts control command signals from the governor’s main processor, typically in the form of a modulated pulse signal or a precise analog voltage/current reference (e.g., +/-10 VDC, 4-20 mA). It also processes feedback signals from the actuator’s LVDT for closed-loop position control.
• Output Drive: Provides the high-current output necessary to drive the coil of a proportional solenoid or servo valve. Output specifications include rated voltage (e.g., +/-50 VDC) and current (e.g., up to 3A continuous).
• Feedback Loop: Integrates circuitry for conditioning and monitoring the LVDT or other position feedback device, ensuring accurate actuator positioning.
• Diagnostic Features: Includes onboard diagnostics for fault conditions such as open or short circuits in the actuator coil, LVDT failure, or loss of feedback signal.
• Communication Interface: May feature status LEDs or a simple serial/data interface to communicate fault codes and operational status back to the main governor controller.
• Power Supply: Requires dedicated, well-filtered DC power inputs, typically at voltages higher than the control logic (e.g., +/-15 VDC for logic, +/-50 VDC for the output stage).
• Environmental: Designed to withstand the high-vibration, wide temperature ranges, and EMI present in turbine and engine control cabinets.

Key Advantages and Distinctive Features

The WOODWARD 5466-409 module delivers crucial performance and reliability benefits:

• Precision and Responsiveness: Enables fast, accurate, and stable positioning of the actuator, which is directly translated into precise speed and load control of the turbine or engine. This is critical for grid synchronization (isochronous load sharing) and frequency stability.
• High Reliability and Robustness: Engineered with industrial-grade components and protection circuits (over-current, over-temperature) to ensure dependable operation in the demanding environment of a prime mover.
• Integrated Diagnostics: The ability to detect and report actuator and feedback sensor faults proactively allows for predictive maintenance, preventing catastrophic failures and reducing unplanned downtime.
• Seamless System Integration: As a genuine Woodward component, the 5466-409 is designed for perfect compatibility and performance within Woodward governor systems (e.g., 505, 723+, MicroNet), ensuring optimized control loop dynamics.
• Closed-Loop Control: Its integrated design for handling both the drive signal and the LVDT feedback creates a tight, locally-managed control loop for actuator position, improving overall system stability and performance.

Application Scenarios and Case Studies

This actuator driver card is essential in applications requiring precise control of fuel or steam:

• Gas Turbine Power Generation: In a GE Frame 7FA or Siemens SGT-800 gas turbine, the WOODWARD 5466-409 drives the servo valve controlling the gas control valve (GCV) to regulate fuel flow based on the speed/load demand from the Woodward 505 or MicroNet governor.
• Industrial Steam Turbines: Used in mechanical-drive steam turbines at refineries or chemical plants to control the governor valve actuator, maintaining precise shaft speed for compressors or pumps.
• Marine Diesel Propulsion: Controls the actuator for the fuel injection pump on large medium-speed diesel engines to maintain constant propeller speed under varying load conditions.
• Pipeline Compression: Governs the speed of gas turbine-driven compressors in pipeline stations, where the 5466-409 ensures accurate fuel delivery to maintain discharge pressure.

A common case study involves troubleshooting a gas turbine that was experiencing poor load control and hunting. Diagnostics pointed to erratic actuator movement. Replacing the aging WOODWARD 5466-409 actuator driver card restored precise control signal amplification and stable LVDT feedback, immediately resolving the instability and returning the unit to precise isochronous load-sharing operation.

Comparison with Competing Products

Compared to similar actuator drive modules from competitors like ABB (part of its turbine control packages), GE (Speedtronic accessory cards), or specialized servo drive manufacturers, the WOODWARD 5466-409 holds a distinct position:

• Woodward Ecosystem Optimization: Its primary advantage is guaranteed compatibility, performance, and support within Woodward governor systems. It is an integral, tested part of Woodward’s control solution.
• Application-Specific Design: Unlike general-purpose servo drives, it is specifically tailored for the characteristics (LVDT feedback, fault modes, environmental specs) of turbine and engine actuators.
• Reliability Focus: Woodward’s deep expertise in prime mover control is reflected in the card’s design priorities: robustness, diagnostic clarity, and fail-safe behavior over raw feature count.

Competitors’ products may be part of a more vertically integrated turbine control system (e.g., GE’s Mark Vie) or offer different form factors. The choice is typically driven by the existing governor/control system vendor on the unit.

Selection Guidelines and Important Considerations

Selecting and replacing this module requires careful attention to system specifics:

1. Exact Governor Compatibility: The WOODWARD 5466-409 must be verified as the correct part for your specific Woodward governor model (e.g., 505E, 723PLUS) and its specific hardware configuration. Consult the governor’s manual or parts list.
2. Actuator/Valve Specifications: Confirm the electrical specifications of the actuator or servo valve it will drive (coil resistance, current draw, required voltage) match the output capabilities of the driver card.
3. Feedback Type Verification: Ensure the card is configured or matched for the type of position feedback (e.g., specific LVDT model, voltage range) used on your actuator. Incorrect matching will cause control failures.
4. Power Supply Requirements: Provide clean, well-regulated power at the exact voltages specified for both the logic and output stages of the card. Noise or voltage spikes on these supplies are a common cause of failure.
5. Handling and Installation: The module contains static-sensitive components. Use ESD precautions during handling. Ensure it is securely seated in its rack or connector. Calibration of the actuator/LVDT loop may be required after installation.
6. Diagnostic Interpretation: Understand how to interpret the card’s status LEDs or fault codes through the governor’s interface. Always source the module using the full part number and consult the official manual for the WOODWARD 5466-409, available via the product link, for wiring diagrams and calibration procedures.
