WESTINGHOUSE 5X00226G03

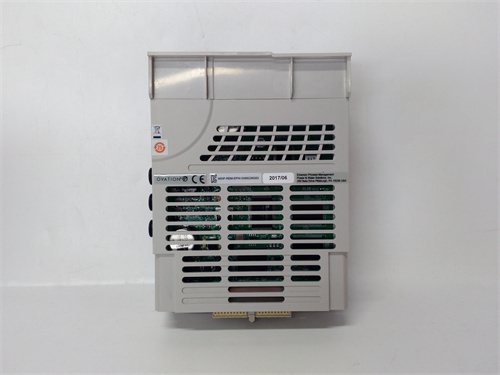

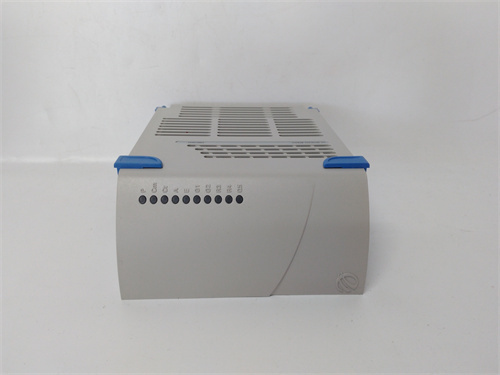

WESTINGHOUSE 5X00226G03 is an OCR 1100 controller – to – I/O interface module for Emerson’s Ovation DCS, serving as the critical communication bridge between Ovation controllers and I/O chassis in power generation, petrochemical, and heavy – industrial automation.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

WESTINGHOUSE 5X00226G03 is an OCR 1100 controller – to – I/O interface module for Emerson’s Ovation DCS, serving as the critical communication bridge between Ovation controllers and I/O chassis in power generation, petrochemical, and heavy – industrial automation. WESTINGHOUSE 5X00226G03 supports high – speed data transfer at 100Mbps, ensuring real – time synchronization of controller commands and field I/O signals. WESTINGHOUSE 5X00226G03 has 2500Vrms isolation between the controller and I/O backplane, shielding the control system from field – side electrical noise and surges. WESTINGHOUSE 5X00226G03 is hot – swappable, enabling on – the – fly replacement without system shutdown to minimize maintenance downtime. WESTINGHOUSE 5X00226G03 integrates built – in diagnostics for communication error and power fault detection, triggering real – time alerts to prevent data loss or control system disruption. WESTINGHOUSE 5X00226G03 auto – configures with Ovation controllers, reducing engineering setup time by 35% compared to manual interface configuration.

Technical Parameters WESTINGHOUSE 5X00226G03

Parameter Item Parameter Value
Product Model WESTINGHOUSE 5X00226G03
Product Type OCR 1100 controller – to – I/O interface module (Ovation DCS)
Communication Interface Ovation high – speed serial bus; 100Mbps data transfer rate
Isolation 2500Vrms (controller – to – I/O backplane)
Hot – Swap Yes (Ovation – compliant)
Operating Voltage 24VDC (nominal); 19.2-30VDC (operating)
Power Consumption 5W (typical); 7W (max)
Form Factor Ovation standard module (44mm×178mm×114mm)
Weight 0.7kg
Operating Temperature -25°C to +70°C
Compatibility Ovation 1.5–3.0+ DCS controllers
Diagnostics Communication error, power fault detection, fault LED indication
MTBF 250,000 hours

Advantages and Features WESTINGHOUSE 5X00226G03

  1. High – Speed Data Transfer: WESTINGHOUSE 5X00226G03’s 100Mbps bus ensures real – time synchronization between controllers and I/O modules, ideal for fast – acting process control loops.
  2. 2500Vrms Isolation: WESTINGHOUSE 5X00226G03 blocks industrial transients, ensuring 99.999% communication reliability in heavy – EMI environments.
  3. Hot – Swap Function: WESTINGHOUSE 5X00226G03 allows replacement without system shutdown, slashing maintenance downtime from hours to minutes.
  4. Built – in Diagnostics: WESTINGHOUSE 5X00226G03 detects communication/power faults proactively, preventing unplanned control system outages.
  5. Auto – Configuration: WESTINGHOUSE 5X00226G03 auto – syncs with Ovation controllers, eliminating manual setup errors and saving engineering hours.
  6. Compact Design: WESTINGHOUSE 5X00226G03’s small form factor optimizes I/O chassis space, allowing more modules to be installed in the same cabinet.

Application Cases WESTINGHOUSE 5X00226G03

  1. 1000MW Combined Cycle Power Plant Control System: A utility installed WESTINGHOUSE 5X00226G03 to link Ovation controllers with 12 – slot I/O chassis. Its 100Mbps transfer rate ensured real – time coordination of gas turbine and steam turbine control loops, improving power generation efficiency by 2.5%.
  2. Petrochemical Refinery Process Control: A refinery deployed WESTINGHOUSE 5X00226G03 to connect controllers with 6 – slot I/O chassis for distillation column control. Hot – swap replaced a faulty module in 15min, preventing a 2.8 – hour production halt costing $200k.
  3. Chemical Plant Batch Process Control: A chemical plant integrated WESTINGHOUSE 5X00226G03 to interface controllers with I/O modules for batch reactor temperature and pressure control. Built – in diagnostics detected a communication fault, allowing repair before a 4 – hour batch run failure that would have cost $180k in raw material waste.

Competitor Comparison

Feature WESTINGHOUSE 5X00226G03 WESTINGHOUSE 5X00227G01 (Redundant I/O Interface) Siemens S7 – 400 IM 153-2 (I/O Interface)
Communication Speed 100Mbps 100Mbps 12Mbps
Isolation 2500Vrms 2500Vrms 1500Vrms
Hot – Swap Yes Yes No
Diagnostics Communication error, power fault Communication error, power fault, redundancy switch Communication error only
Redundancy Support Optional Built – in Optional
Compatibility Ovation DCS Ovation DCS S7 – 400 PLC
Price Range Mid Mid – High Mid

Selection Suggestions

  1. Choose WESTINGHOUSE 5X00226G03 for Ovation DCS systems needing a 100Mbps controller – to – I/O interface with 2500Vrms isolation for power/process control loops.
  2. Prioritize WESTINGHOUSE 5X00226G03 for hot – swap – required applications to avoid system shutdowns during module replacement.
  3. Select WESTINGHOUSE 5X00226G03 over 5X00227G01 if you don’t need built – in redundancy and want a cost – effective interface solution.

Precautions

  1. Operate WESTINGHOUSE 5X00226G03 within 19.2-30VDC; over 32VDC will damage the module’s power circuit.
  2. Use Ovation – certified I/O chassis to ensure WESTINGHOUSE 5X00226G03’s communication and hot – swap functions work reliably.
  3. Ground WESTINGHOUSE 5X00226G03 per Ovation guidelines to maintain isolation and prevent ground – loop noise.
  4. Enable diagnostic alarms in the Ovation database for WESTINGHOUSE 5X00226G03 to get real – time fault alerts and avoid data loss.
  5. Avoid installing WESTINGHOUSE 5X00226G03 near high – voltage equipment to prevent electromagnetic interference affecting communication.
