WESTINGHOUSE 5X00063G01

Description

Product Description

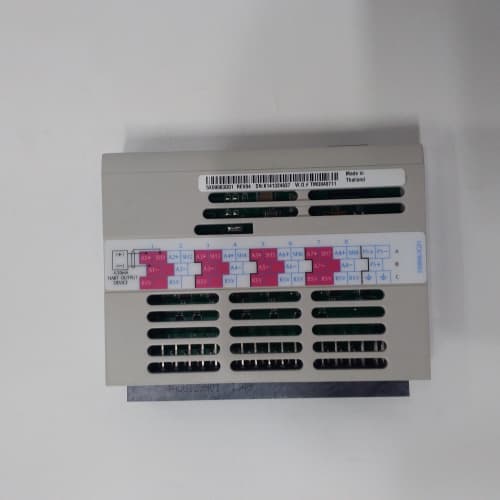

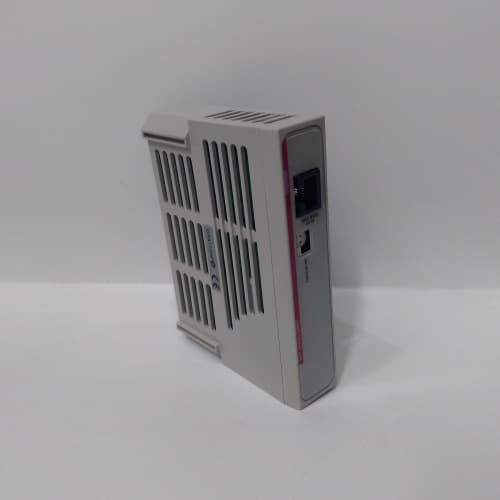

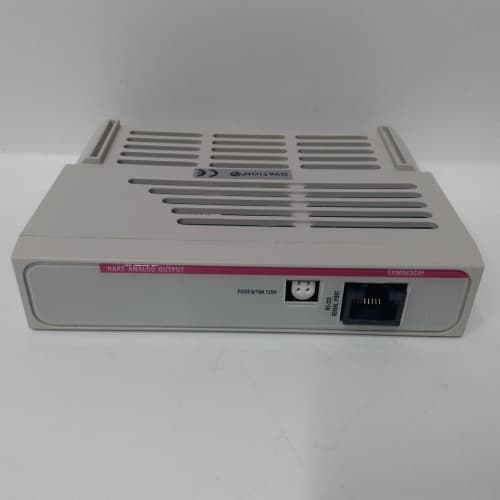

The WESTINGHOUSE 5X00063G01 is a specialized electronic module integral to the functionality of legacy Westinghouse distributed control systems (DCS), most notably the WDPF (Westinghouse Distributed Processing Family) or early Ovation™ platforms. This specific module typically serves as a Drop Interface Module (DIM) or high-speed communication interface card, acting as the crucial link between the system’s peer-to-peer Westnet data highway and a local processing unit or I/O drop. The primary role of the WESTINGHOUSE 5X00063G01 is to manage the robust, deterministic exchange of process data and control commands across the network, ensuring data integrity and synchronization for critical industrial applications. Engineered during an era of demanding reliability standards for power generation, each component like the WESTINGHOUSE 5X00063G01 was built to exacting specifications. The continued operation of many power plants and heavy industrial sites depends on the availability of such authentic, tested spare parts as the WESTINGHOUSE 5X00063G01 to maintain their long-lifecycle control assets.

Product Parameters

• Component Type: Communication Interface Module / Drop Interface Module (DIM).
• System Compatibility: Designed for Westinghouse WDPF or early Ovation DCS racks and chassis.
• Primary Function: Interfaces a local controller or I/O subsystem to the dual-redundant Westnet (or similar) data highway.
• Communication Protocol: Proprietary Westinghouse real-time network protocol (e.g., Westnet I/II) for deterministic, peer-to-peer communication.
• Data Handling: Manages high-speed, cyclic data transfer between the drop and the broader network for global database access.
• Redundancy Support: Often designed to support a redundant communication link for fault tolerance.
• Indicators: Features status LEDs for power, communication activity, and fault conditions.
• Power Requirements: Receives operational power via the system backplane from the chassis power supply.

Advantages and Features

• Deterministic Network Performance: Provides guaranteed, real-time data delivery critical for synchronized control across a distributed system, a hallmark of the WDPF platform.
• High Reliability and Robustness: Built with industrial-grade components to withstand the harsh electrical and environmental conditions of power plant environments.
• Seamless System Integration: As a genuine OEM module, the WESTINGHOUSE 5X00063G01 ensures perfect electrical, mechanical, and protocol-level compatibility, preserving system integrity.
• Peer-to-Peer Architecture: Facilitates direct communication between distributed processing units, reducing central controller load and improving system responsiveness.
• Proven Long-Term Service: Possesses a documented history of reliable service measured in decades, supporting the extended lifespan of critical infrastructure.

Application Cases in Industry

• Coal/Gas-Fired Power Plants: Connects burner management system (BMS) controllers, turbine governor controls, and boiler control units to the plant-wide DCS network.
• Combined Cycle Power Plants: Integrates gas turbine controls, heat recovery steam generator (HRSG) controls, and steam turbine controls onto a unified monitoring network.
• Large Industrial Boilers: Serves as the communication backbone for distributed control cabinets managing fuel, air, and feedwater loops.
• Legacy Process Industries: Used in older DCS installations in chemical, oil & gas, and metals production facilities where Westinghouse systems were deployed.

Comparison with Competing Products
As a proprietary legacy component, the WESTINGHOUSE 5X00063G01 does not have interchangeable competitors. A modern equivalent function would be a proprietary controller network interface (e.g., Emerson’s Ovation OVATIONNET card, Siemens’ SIMATIC NET CP for Profibus). Compared to modern, open-standard Ethernet-based modules, the WESTINGHOUSE 5X00063G01 and its Westnet protocol offer superior determinism for its era but lack the bandwidth, openness, and IT integration capabilities of contemporary Industrial Ethernet (e.g., PROFINET, EtherNet/IP). Its advantage is unwavering compatibility and proven performance within its specific, installed ecosystem. The disadvantage is technological obsolescence, dependency on a shrinking pool of expertise, and lack of modern cybersecurity features.

Selection Suggestions and Precautions

• Selection Advice:
  1. Purchase the WESTINGHOUSE 5X00063G01 strictly for a direct, form-fit-function replacement in an existing Westinghouse WDPF/Ovation system.
  2. Absolute verification of the module’s hardware revision (G01) and firmware version is mandatory. Mismatched versions can cause network failures.
  3. Source only from reputable suppliers specializing in legacy industrial automation, who can provide a comprehensive testing report and warranty.
  4. Consider the health of the entire communication network; recurring failures might indicate backplane or power supply issues in the chassis.
• Precautions:
  1. Obsolescence Management: This is a discontinued part. Procuring a spare WESTINGHOUSE 5X00063G01 is a maintenance action, not a long-term strategy. Develop a system migration plan.
  2. ESD Handling: Treat the module as an ESD-sensitive device. Use proper grounding straps and packaging during handling and transport.
  3. Configuration: The module may require specific switch settings or firmware aligned with the network address and parameters of the drop it serves. Documentation from the original system is vital.
  4. System Downtime: Replacement typically requires a controlled shutdown of the affected drop or chassis. Strict plant outage and LOTO procedures must be followed.
