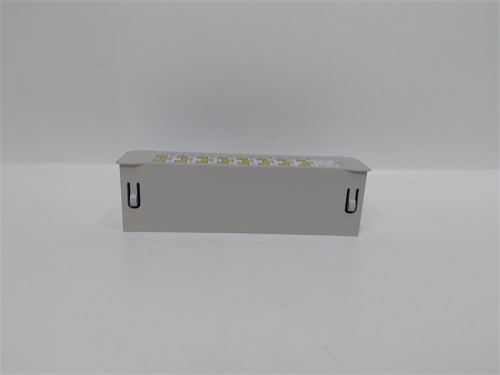

WESTINGHOUSE 1C31238H01

Description

Technical Parameters WESTINGHOUSE 1C31238H01

Advantages and Features WESTINGHOUSE 1C31238H01

1. Rugged Industrial Design: WESTINGHOUSE 1C31238H01’s flame-retardant housing and wide operating temperature range (-25°C to +85°C) ensure stable performance in high-humidity, high-vibration, and EMI-rich environments.
2. High-Density & Low Loss: 24 input channels in a compact form factor maximize I/O density, while ≤15mΩ contact resistance minimizes energy loss during signal transmission.
3. Strong Insulation & Safety: 1500V AC withstand voltage and ≥100MΩ insulation resistance prevent short circuits and electric arcs, enhancing system safety.
4. Flexible Deployment: Supports both DIN rail and screw mounting, adapting to dense wiring scenarios in control cabinets and reducing installation space.
5. Seamless System Compatibility: Integrates with mainstream PLCs, DCS, and remote I/O modules, facilitating quick commissioning and system expansion.

Application Cases

1. Automated Packaging Production Line: A food packaging plant deployed WESTINGHOUSE 1C31238H01 to detect workpiece positioning, conveyor speed, and emergency stop signals. The module’s EMI immunity resisted interference from nearby motors, improving line uptime by 22% and reducing false alarms.
2. Petrochemical Pump Control System: A refinery used WESTINGHOUSE 1C31238H01 to monitor pump start/stop statuses and valve position feedback. Its high insulation resistance and voltage withstand capability ensured safe operation in flammable and explosive environments, reducing unplanned downtime by 18%.
3. Metallurgical Equipment Monitoring: A steel mill integrated WESTINGHOUSE 1C31238H01 into its rolling mill control system to capture roller position and temperature switch signals. The module’s high-temperature resistance (-25°C to +85°C) withstood on-site heat radiation, maintaining signal accuracy for 24/7 operation.

Competitor Comparison

Selection Suggestions

1. Choose WESTINGHOUSE 1C31238H01 for Ovation DCS needing high-density (24-channel) digital input with rugged environmental adaptability.
2. Opt for WESTINGHOUSE 1C31238H01 in petrochemical, metallurgical, or manufacturing industries where high temperature, EMI, or voltage fluctuations are present.
3. Select WESTINGHOUSE 1C31238H01 when flexible mounting (DIN rail/screw) and high current capacity (10A) are required for heavy-duty field devices.
4. Use WESTINGHOUSE 1C31238H01 for system upgrades or new installations requiring low energy loss and strong insulation safety.

Precautions

1. Install WESTINGHOUSE 1C31238H01 in a well-ventilated control cabinet to avoid overheating, ensuring operating temperature stays within -25°C to +85°C.
2. Verify field device voltage/current does not exceed the module’s 250V/10A ratings to prevent contact damage or signal distortion.
3. Use shielded cables for wiring to enhance EMI immunity, especially in environments with nearby high-power motors or transformers.
4. Follow ESD protection protocols when handling the module, particularly during plug-in operations, to avoid static damage to internal components.
5. Regularly inspect terminal connections for tightness and oxidation, as loose contacts can cause signal loss or increased contact resistance.
6. Avoid installing WESTINGHOUSE 1C31238H01 near corrosive gases or liquids, as this may degrade the flame-retardant housing and insulation performance.
