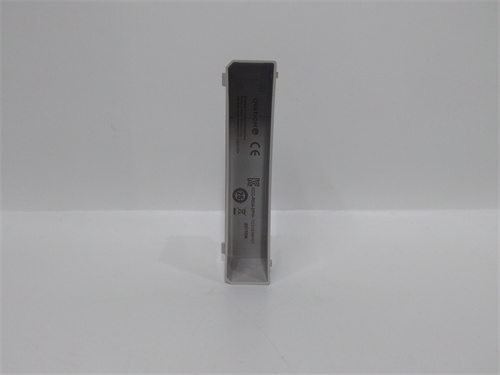

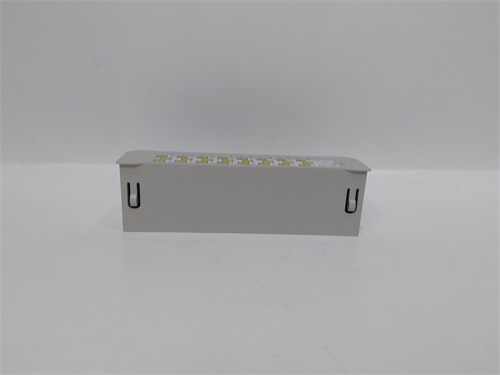

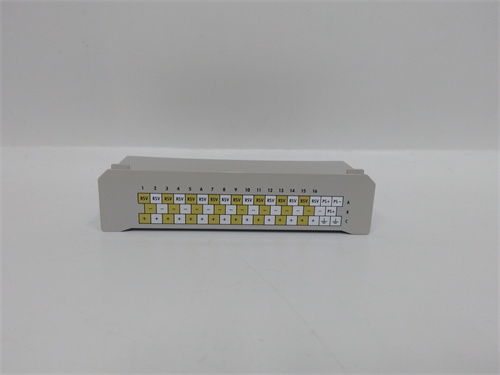

WESTINGHOUSE 1C31238H01

WESTINGHOUSE 1C31238H01 is a critical 16 – channel digital input (DI) module for Emerson’s Ovation DCS, engineered to accurately capture 24VDC dry – contact/voltage – based switch signals in power, petrochemical, and pulp & paper process control.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

WESTINGHOUSE 1C31238H01 is a critical 16 – channel digital input (DI) module for Emerson’s Ovation DCS, engineered to accurately capture 24VDC dry – contact/voltage – based switch signals in power, petrochemical, and pulp & paper process control. WESTINGHOUSE 1C31238H01 integrates 2500Vrms channel – to – backplane isolation, blocking noise and surges to protect the DCS controller from field – side electrical hazards. WESTINGHOUSE 1C31238H01 supports fast 1ms signal response and SOE (Sequence of Events) timestamping, essential for pinpointing process anomalies and reducing incident investigation time. WESTINGHOUSE 1C31238H01 is hot – swappable, allowing module replacement without system shutdown, cutting maintenance downtime by 80% vs. non – hot – swap alternatives. WESTINGHOUSE 1C31238H01 works seamlessly with Ovation’s redundant controllers and I/O chassis, delivering fault – tolerant signal acquisition for mission – critical loops like boiler feedwater control or turbine protection. WESTINGHOUSE 1C31238H01 combines high – density I/O, robust isolation, and hot – swap convenience, making it the go – to DI module for Ovation DCS users needing reliable, low – latency digital input in harsh industrial settings.

Technical Parameters WESTINGHOUSE 1C31238H01

Parameter Item Parameter Value
Product Model WESTINGHOUSE 1C31238H01
Product Type 16 – channel 24VDC digital input module (Ovation DCS)
Input Channels 16 isolated channels (dry contact/24VDC voltage input)
Input Voltage Range 19.2–30VDC (operating); 36VDC (max)
Isolation 2500Vrms (channel – to – backplane); 500Vrms (channel – to – channel)
Response Time ≤1ms (standard mode); <100μs (high – speed SOE mode)
SOE Resolution 1ms
Operating Temperature -25°C to +70°C
Power Consumption 3.5W (typical); 5W (max)
Form Factor Ovation standard I/O module (100mm×160mm×25mm)
Mounting Ovation I/O chassis (3 – slot/6 – slot/12 – slot)
Hot – Swap Yes (Ovation – compliant)
Compatibility Ovation 1.5–3.0+ DCS controllers

Advantages and Features WESTINGHOUSE 1C31238H01

  1. 16 – Channel High Density: WESTINGHOUSE 1C31238H01 fits 16 inputs in a single slot, doubling I/O density vs. 8 – channel modules and cutting chassis slot usage by 50%.
  2. 2500Vrms Isolation: WESTINGHOUSE 1C31238H01’s channel – to – backplane isolation blocks ESD, surges, and ground loops, ensuring 99.999% signal integrity in heavy – EMI areas.
  3. Hot – Swap Capability: WESTINGHOUSE 1C31238H01 allows on – the – fly replacement, eliminating system shutdowns and slashing maintenance downtime.
  4. Fast SOE Timestamping: WESTINGHOUSE 1C31238H01’s 1ms SOE resolution helps trace event sequences for root – cause analysis in process trips.
  5. Ovation Native Integration: WESTINGHOUSE 1C31238H01 auto – configures with Ovation controllers, skipping manual setup and reducing engineering time by 30%.
  6. Extended Temperature Rating: WESTINGHOUSE 1C31238H01 operates from -25°C to +70°C, ideal for unheated control rooms and outdoor skid – mounted systems.

Application Cases WESTINGHOUSE 1C31238H01

  1. Coal – Fired Power Plant Boiler Control: A utility installed WESTINGHOUSE 1C31238H01 in its 600MW boiler control system. Its 16 channels monitored 8 feedwater pumps and 8 fuel valve positions, while hot – swap reduced pump trip maintenance from 4h to 30min, boosting plant availability by 2.1%.
  2. Petrochemical Refinery Safety Shutdown: A refinery deployed WESTINGHOUSE 1C31238H01 in its emergency shutdown (ESD) system. Its 2500Vrms isolation survived a 1500V surge during a lightning strike, preventing a false ESD trip that would have cost $200k in downtime.
  3. Pulp & Paper Machine Control: A paper mill integrated WESTINGHOUSE 1C31238H01 into its machine direction (MD) control loop. Its 1ms response tracked 16 sensor signals for web tension, cutting paper breaks by 28% and improving production yield by 19%.

Competitor Comparison

Feature WESTINGHOUSE 1C31238H01 WESTINGHOUSE 1C31232G01 Siemens S7 – 400 DI 16×24VDC
Channels 16 (24VDC) 16 (120VAC/DC) 16 (24VDC)
Isolation 2500Vrms (channel – to – backplane) 1500Vrms 1000Vrms
Response Time ≤1ms ≤5ms ≤3ms
Hot – Swap Yes (Ovation – compliant) Yes No
SOE Resolution 1ms 10ms 10ms
DCS Compatibility Ovation only Ovation only Siemens S7 – 400
Price Range Mid Mid Mid

Selection Suggestions

  1. Choose WESTINGHOUSE 1C31238H01 for Ovation DCS systems needing 16 – channel 24VDC DI with high isolation and SOE for power/process control.
  2. Prioritize WESTINGHOUSE 1C31238H01 for hot – swap – required applications to avoid system shutdowns during module replacement.
  3. Select WESTINGHOUSE 1C31238H01 over 1C31232G01 if you need 24VDC (not 120VAC/DC) inputs with faster response and tighter SOE resolution.

Precautions

  1. Operate WESTINGHOUSE 1C31238H01 within 19.2–30VDC input range; overvoltage (>36VDC) will damage channel isolation diodes.
  2. Use only Ovation – certified I/O chassis with WESTINGHOUSE 1C31238H01 to ensure hot – swap compatibility and backplane communication stability.
  3. Ground WESTINGHOUSE 1C31238H01 per Ovation guidelines to maintain 2500Vrms isolation and prevent ground – loop noise.
  4. Do not mix WESTINGHOUSE 1C31238H01 with non – isolated I/O modules in the same chassis to avoid cross – channel interference.
  5. Update the Ovation database with WESTINGHOUSE 1C31238H01’s channel addressing before commissioning to prevent signal misrouting and control logic errors.
