WESTINGHOUSE 1C31233G04

Description

Product Overview and Description

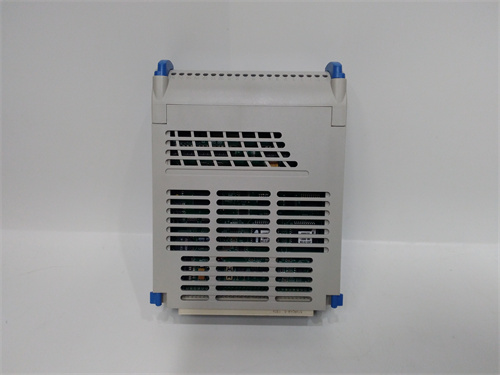

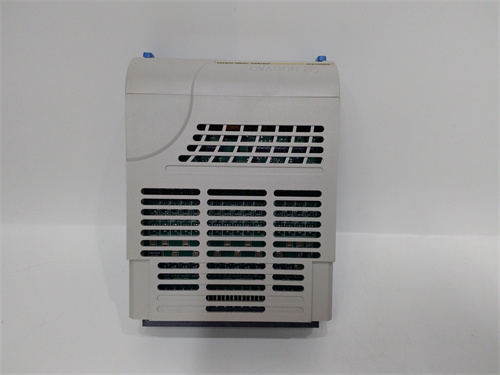

The WESTINGHOUSE 1C31233G04 is a specialized analog input or signal conditioning module from the Westinghouse (now part of Emerson) WDPF (Westinghouse Distributed Processing Family) or Ovation distributed control system (DCS). This module serves as a critical interface between field instrumentation and the control system’s processors. The primary function of the WESTINGHOUSE 1C31233G04 is to accept low-level analog signals from field transmitters—such as thermocouples, RTDs, or 4-20mA current loops—and condition, isolate, and digitize them for use by the DCS controller. It is a fundamental component for accurate process measurement within a legacy Westinghouse control architecture. Proper configuration and maintenance of this module are essential for ensuring data integrity in the control room. The reliability of the WESTINGHOUSE 1C31233G04 directly impacts the system’s ability to monitor and control key process variables accurately.

Detailed Product Parameters

• Function: Analog Input Module for Westinghouse WDPF or Ovation DCS.
• System Compatibility: Designed for installation in a Westinghouse I/O subsystem or drop, interfacing with the Westinghouse control network (e.g., Westnet II) or Ovation DCS bus.
• Input Types: Typically configured for specific signal types, such as thermocouple (J, K, T, etc.), RTD (Pt100, Pt1000), or low-level DC voltage/mA. The “G04” suffix often indicates a specific input range or configuration.
• Channel Count: Provides multiple isolated input channels (e.g., 8, 16) on a single module.
• Isolation: Features channel-to-channel and/or channel-to-system isolation to prevent ground loops and protect the DCS from field-side electrical transients.
• Signal Conditioning: Includes amplifiers, filters, and analog-to-digital converters (ADCs) with high resolution and accuracy suitable for process control.
• Diagnostics: Includes basic status indicators and may provide fault reporting back to the controller for open sensor, out-of-range, or module failure conditions.
• Connections: Interfaces to field wiring via a front-mounted removable terminal block.

Key Advantages and Features

1. High Accuracy and Stability: The WESTINGHOUSE 1C31233G04 is engineered for precise and stable measurement of analog signals, which is the foundation for effective process control, quality assurance, and safety monitoring.
2. Robust Electrical Isolation: The built-in isolation is critical for operating in industrial environments. It breaks ground loops, suppresses common-mode noise, and protects the sensitive control system electronics from voltage surges originating in the field.
3. High-Density Design: By accommodating multiple channels on a single module, it maximizes I/O density within control cabinets, saving space and reducing the number of modules required for large plants.
4. System Integration: As a genuine Westinghouse component, it offers guaranteed compatibility with the corresponding controller hardware and system software, ensuring reliable communication and simplified configuration.
5. Durability: Built to the industrial standards of its era, it is designed for reliable 24/7 operation in the temperature and electrical noise environments of power plants and heavy industrial facilities.

Primary Application Fields and Use Cases

This module is found in legacy Westinghouse DCS installations, predominantly in continuous process industries.

• Power Generation: The primary application is in fossil fuel (coal, gas) and nuclear power plants for measuring temperatures, pressures, flows, and levels throughout the boiler, turbine, and auxiliary systems.
• Industrial Process: Used in large industrial complexes that historically standardized on Westinghouse controls.
• Use Case Example: In a coal-fired power plant, multiple WESTINGHOUSE 1C31233G04 modules configured for thermocouple inputs are installed in remote I/O cabinets near the boiler. They are responsible for digitizing the millivolt signals from dozens of thermocouples measuring superheater and reheater steam temperatures. This accurate data is critical for the control system to properly attemperate the steam and protect the turbine from damage.

Comparison with Competing Products

• vs. Modern DCS I/O Modules (e.g., Emerson Ovation, Siemens): Newer systems offer higher channel density, greater intelligence, more advanced diagnostics, and faster communication (Ethernet). The WESTINGHOUSE 1C31233G04 represents an older, proprietary technology with more limited capabilities but is essential for maintaining the existing system.
• vs. Universal Signal Conditioners: Standalone transducers/isolators can perform similar signal conversion but create a decentralized architecture with more wiring, points of failure, and configuration complexity. The DCS module provides a centralized, software-configured solution.
• vs. Generic PLC Analog Cards: Cards for standard PLCs are designed for a different programming and networking environment. They lack the specific form factor, backplane communication protocol, and system-level integration of the purpose-built WESTINGHOUSE 1C31233G04.

Selection Suggestions and Important Precautions

• Selection Advice: The WESTINGHOUSE 1C31233G04 is strictly a replacement part for an existing Westinghouse system. Selection must be based on the exact part number from the system’s drawings or the label on the failed module. The “G04” suffix is critical. Verify the module’s signal type (TC, RTD, mA) matches the application.
• Precaution – Electrostatic Discharge (ESD): Handle as an ESD-sensitive component. Use proper grounding equipment when installing or handling the module.
• Precaution – Configuration: The module’s operation (input type, range, filtering) may be set by hardware jumpers or switches on the board, or by software in the controller. Document the configuration of the old module before replacement.
• Precaution – Calibration: While the module itself has a factory calibration, the entire measurement loop (sensor, wiring, module) should be verified periodically against a calibration standard to ensure ongoing measurement accuracy.
• Precaution – Obsolescence and Sourcing: This is a legacy component. Source from reputable industrial automation surplus specialists who can provide testing verification. Be aware that availability may be limited, and consider long-term support plans, including potential system migration.
