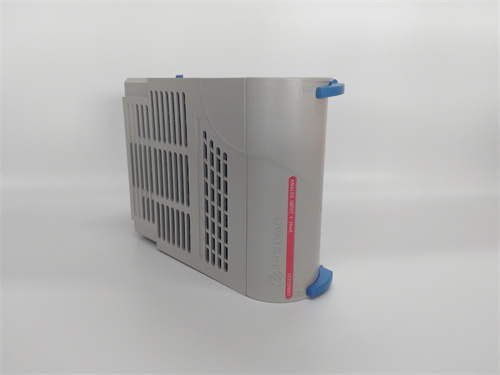

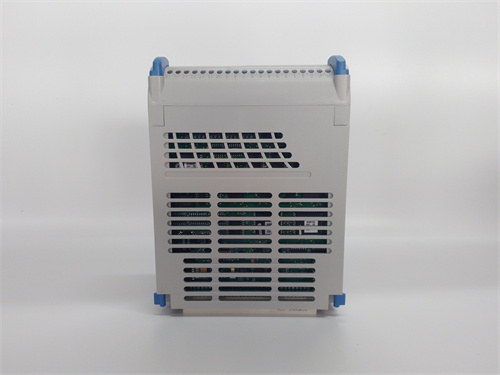

WESTINGHOUSE 1C31124G01

WESTINGHOUSE 1C31124G01 is a 16 – channel 24VDC digital output (DO) module for Emerson’s Ovation DCS, built to drive relays, solenoid valves, and contactors in power generation, petrochemical, and pulp & paper process control.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

WESTINGHOUSE 1C31124G01 is a 16 – channel 24VDC digital output (DO) module for Emerson’s Ovation DCS, built to drive relays, solenoid valves, and contactors in power generation, petrochemical, and pulp & paper process control. WESTINGHOUSE 1C31124G01 features 2500Vrms channel – to – backplane isolation, blocking industrial noise and surges to safeguard the DCS controller from field – side electrical risks. WESTINGHOUSE 1C31124G01 delivers 0.5A per – channel output current, supporting common industrial loads while maintaining stable switching performance. WESTINGHOUSE 1C31124G01 is hot – swappable, enabling on – the – fly replacement without system shutdown to minimize maintenance downtime. WESTINGHOUSE 1C31124G01 integrates built – in diagnostics for open – load and short – circuit detection, triggering alerts to prevent load damage and system malfunctions. WESTINGHOUSE 1C31124G01 seamlessly integrates with Ovation’s redundant controllers, ensuring reliable actuation for critical loops like boiler fuel control or turbine trip systems.

Technical Parameters WESTINGHOUSE 1C31124G01

Parameter Item Parameter Value
Product Model WESTINGHOUSE 1C31124G01
Product Type 16 – channel 24VDC digital output module (Ovation DCS)
Output Channels 16 isolated channels
Output Voltage 24VDC (nominal); 19.2–30VDC (operating)
Per – Channel Current 0.5A (continuous); 2A (peak, 1s)
Isolation 2500Vrms (channel – to – backplane); 500Vrms (channel – to – channel)
Switching Time ≤1ms (on/off)
Diagnostics Open – load detection, short – circuit protection, fault LED indication
Hot – Swap Yes (Ovation – compliant)
Operating Temperature -25°C to +70°C
Power Consumption 4W (typical); 6W (max)
Form Factor Ovation standard I/O module (100mm×160mm×25mm)
Mounting Ovation I/O chassis (3 – slot/6 – slot/12 – slot)
Compatibility Ovation 1.5–3.0+ DCS controllers

Advantages and Features WESTINGHOUSE 1C31124G01

  1. 16 – Channel High Density: WESTINGHOUSE 1C31124G01 packs 16 outputs into one slot, cutting chassis slot usage by 50% vs. 8 – channel alternatives and optimizing space.
  2. 2500Vrms Isolation: WESTINGHOUSE 1C31124G01 blocks ESD, surges, and ground loops, ensuring 99.999% signal integrity in heavy – EMI industrial environments.
  3. 0.5A Continuous Output: WESTINGHOUSE 1C31124G01 drives relays, solenoids, and small contactors directly, eliminating the need for external power drivers.
  4. Hot – Swap Function: WESTINGHOUSE 1C31124G01 allows replacement without shutdown, slashing maintenance downtime from hours to minutes.
  5. Built – in Diagnostics: WESTINGHOUSE 1C31124G01 detects open – load/short – circuit faults in real time, enabling proactive maintenance and preventing unplanned shutdowns.
  6. Ovation Native Compatibility: WESTINGHOUSE 1C31124G01 auto – configures with Ovation controllers, reducing engineering setup time by 30%.

Application Cases WESTINGHOUSE 1C31124G01

  1. Coal – Fired Power Plant Turbine Control: A 600MW plant installed WESTINGHOUSE 1C31124G01 to drive 16 turbine lubrication valve solenoids. Its 2500Vrms isolation survived a 1200V surge, avoiding a turbine trip that would have cost $800k in lost generation.
  2. Petrochemical Refinery ESD System: A refinery used WESTINGHOUSE 1C31124G01 in its emergency shutdown system to trigger 16 safety isolation valves. Hot – swap replaced a faulty module in 20min, preventing a 3 – hour production halt costing $150k.
  3. Pulp & Paper Machine Drive Control: A paper mill deployed WESTINGHOUSE 1C31124G01 to switch 16 motor contactors for a paper machine’s drive system. Built – in diagnostics detected a short – circuited contactor, allowing replacement before a catastrophic drive failure that would have stopped production for 12h.

Competitor Comparison

Feature WESTINGHOUSE 1C31124G01 WESTINGHOUSE 1C31129G01 (120VAC DO) ABB AC800M DO810 (16×24VDC)
Channels 16 (24VDC) 16 (120VAC) 16 (24VDC)
Isolation 2500Vrms (channel – to – backplane) 1500Vrms 1000Vrms
Per – Channel Current 0.5A (continuous) 0.3A (continuous) 0.5A (continuous)
Hot – Swap Yes (Ovation – compliant) Yes No
Diagnostics Open – load/short – circuit Open – load only Short – circuit only
DCS Compatibility Ovation only Ovation only AC800M only
Price Range Mid Mid Mid – High

Selection Suggestions

  1. Choose WESTINGHOUSE 1C31124G01 for Ovation DCS systems needing 16 – channel 24VDC DO with high isolation for power/process control.
  2. Prioritize WESTINGHOUSE 1C31124G01 for hot – swap – required applications to avoid system shutdowns during module replacement.
  3. Select WESTINGHOUSE 1C31124G01 over 1C31129G01 if you need 24VDC (not 120VAC) outputs with full open – load/short – circuit diagnostics.

Precautions

  1. Operate WESTINGHOUSE 1C31124G01 within 19.2–30VDC; over 36VDC will damage output channels.
  2. Use Ovation – certified I/O chassis to ensure WESTINGHOUSE 1C31124G01’s hot – swap and backplane communication work reliably.
  3. Ground WESTINGHOUSE 1C31124G01 per Ovation guidelines to maintain isolation and prevent ground – loop noise.
  4. Do not exceed WESTINGHOUSE 1C31124G01’s 0.5A continuous current per channel to avoid output transistor burnout.
  5. Enable diagnostic alarms in the Ovation database for WESTINGHOUSE 1C31124G01 to get real – time fault alerts and avoid unplanned downtime.
