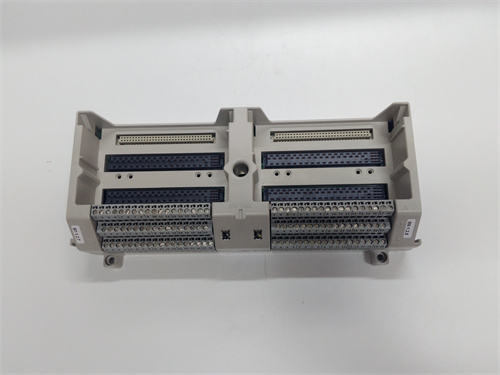

WESTINGHOUSE 1B30023H02

WESTINGHOUSE 1B30023H02 is a rugged relay output module designed for the Ovation Distributed Control System (DCS), specialized in converting low-voltage control signals into high-power switching commands for actuators, valves, and motors in power generation, oil & gas, and heavy manufacturing industries.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

WESTINGHOUSE 1B30023H02 is a rugged relay output module designed for the Ovation Distributed Control System (DCS), specialized in converting low-voltage control signals into high-power switching commands for actuators, valves, and motors in power generation, oil & gas, and heavy manufacturing industries. WESTINGHOUSE 1B30023H02 features 8 Form C (SPDT) relay channels with 250V AC/30V DC rated switching capacity, ensuring reliable load control for both AC and DC field devices. WESTINGHOUSE 1B30023H02 integrates channel-level isolation and surge protection, guarding against electromagnetic interference and voltage transients in harsh industrial environments. WESTINGHOUSE 1B30023H02 supports hot-swappable operation, allowing module replacement without chassis shutdown to maximize system uptime. Whether controlling boiler feed pumps in power plants or isolation valves in refineries, WESTINGHOUSE 1B30023H02 delivers safe, stable switching performance for mission-critical control loops.

Technical Parameters WESTINGHOUSE 1B30023H02

Parameter Item Parameter Value
Product Model WESTINGHOUSE 1B30023H02
Module Type Ovation 8-Channel Relay Output Module
Output Channels 8×Form C (SPDT) relays
Switching Rating 250V AC (5A resistive), 30V DC (5A resistive)
Isolation 1500Vrms (channel-to-channel; channel-to-backplane)
Response Time ≤5ms (contact closure/open)
Surge Protection 2kV transient suppression per channel
Communication Ovation DCS backplane interface
Power Supply +5V DC (chassis-fed, 1.0A max)
Operating Temperature -20°C to +70°C
Dimensions Single-slot Ovation chassis compatible (122mm×65mm×168mm)
Weight 0.5kg
Certifications UL 508, IEC 61508 SIL 2
Key Function High-power relay switching; channel isolation; hot-swappable

Advantages and Features WESTINGHOUSE 1B30023H02

  1. Dual-Voltage Switching Capability: WESTINGHOUSE 1B30023H02’s Form C relays support both 250V AC and 30V DC loads, eliminating the need for separate AC/DC output modules and reducing inventory costs.
  2. Robust Isolation & Surge Protection: 1500Vrms channel isolation and 2kV transient suppression prevent EMI interference and voltage spikes from damaging the module or field devices.
  3. Hot-Swappable Design: Replace WESTINGHOUSE 1B30023H02 without powering down the Ovation chassis, cutting maintenance downtime by up to 90% compared to non-hot-swappable alternatives.
  4. Visual Status Monitoring: Front-panel LED indicators for each channel provide instant visibility of relay contact state, simplifying on-site troubleshooting and fault diagnosis.
  5. SIL 2 Safety Compliance: Meets IEC 61508 SIL 2 standards, making it suitable for safety-related control applications in process industries.

Application Cases

  1. Coal-Fired Power Plant Auxiliary System Control: A 800MW power plant deployed WESTINGHOUSE 1B30023H02 to switch boiler feed pump motors and cooling tower fans. The module’s surge protection withstood grid voltage fluctuations, reducing unplanned pump downtime by 25%.
  2. Oil Refinery Isolation Valve Control: A refinery integrated WESTINGHOUSE 1B30023H02 into its crude distillation unit to control emergency isolation valves. Dual-voltage capability simplified wiring for mixed AC/DC valve actuators, and SIL 2 compliance ensured safe valve operation during process upsets.
  3. Municipal Wastewater Treatment Plant: A wastewater utility used WESTINGHOUSE 1B30023H02 to switch aeration blowers and sludge transfer pumps. Hot-swappable design allowed module replacement during peak flow periods, avoiding service disruptions for 150,000 local residents.

Competitor Comparison

Comparison Item WESTINGHOUSE 1B30023H02 Honeywell 8C-TDOR08 Relay Module Emerson DeltaV DO Relay Module
Channel Count 8 8 8
Switching Voltage 250V AC/30V DC 240V AC/24V DC 250V AC/30V DC
Isolation Rating 1500Vrms 1000Vrms 1500Vrms
Hot-Swap Support Yes No Yes
Safety Rating IEC 61508 SIL 2 IEC 61508 SIL 1 IEC 61508 SIL 2
Estimated Price (USD) ~$850 ~$720 ~$920

Selection Suggestions

  1. Choose WESTINGHOUSE 1B30023H02 for Ovation DCS systems requiring 8-channel relay output with dual AC/DC switching capability and SIL 2 safety compliance.
  2. Opt for WESTINGHOUSE 1B30023H02 in power and oil & gas applications where surge protection and EMI immunity are critical for reliable load control.
  3. Select WESTINGHOUSE 1B30023H02 when hot-swappable maintenance is a priority to minimize process downtime during module replacement.
  4. Use WESTINGHOUSE 1B30023H02 for mixed AC/DC load control scenarios to reduce module inventory and simplify system wiring.

Precautions

  1. Install WESTINGHOUSE 1B30023H02 in a compatible Ovation chassis to ensure proper backplane communication and power distribution.
  2. Verify that field load current and voltage do not exceed the module’s 5A/250V AC or 5A/30V DC ratings to prevent relay contact damage.
  3. Use twisted-pair shielded cables for control signal wiring to minimize electromagnetic interference in high-noise industrial environments.
  4. Follow ESD protection protocols when handling WESTINGHOUSE 1B30023H02, especially during hot-swap operations, to avoid static damage to internal components.
  5. Avoid daisy-chaining multiple high-current loads on a single relay channel; distribute loads across channels to extend relay service life.
  6. Regularly inspect front-panel LEDs and use Ovation System Studio software to check relay status logs, identifying potential contact wear before failures occur.
