VMIC+ASSY 12149 ZT5524A1A

Parameter VMIC+ASSY 12149 ZT5524A1A
Function 1 000 Vrms isolation & surge barrier 24-channel solid-state relay output
Isolation Voltage 1 000 Vrms channel-to-ground, 500 Vrms channel-to-channel 2 500 Vrms input-to-output
Surge Rating IEC 61000-4-5 Level 4 (4 kV) IEC 61000-4-4 Level 4 (2 kV EFT)
Switching Element Reinforced digital isolators (SiO₂) 24 × SPST SSR, 0.2 A continuous
Load Voltage — 30 VDC / 250 VAC
Load Current — 0.2 A continuous, 1 A (100 ms surge)
On Resistance — <0.5 Ω typical
Turn-On/Turn-Off Time <1 µs propagation <10 µs
Terminal Type Pluggable screw-clamp 0.2–4 mm² Pluggable screw-clamp 0.2–4 mm²
Status Indication 8 fault LEDs 24 SSR-status LEDs
Power Supply 5 V/0.3 A from VME or ext. 24 V 5 V/0.8 A logic, 24 V/0.1 A field
Operating Temperature –40 °C … +85 °C –40 °C … +85 °C
Certifications CE, UL, ATEX Zone 2, RoHS CE, UL, ATEX Zone 2, RoHS
Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: sales@plcfcs.com
  • Phone / Wechat：+86 15343416922

Description

产品名称

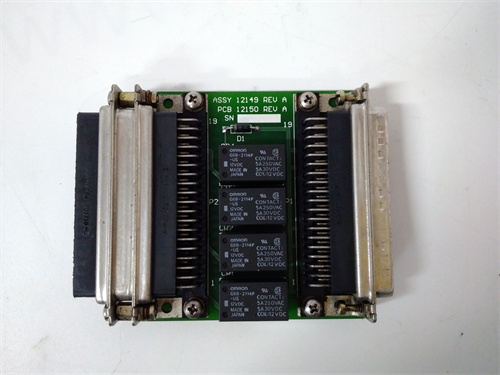

VMIC+ASSY 12149 & ZT5524A1A High-Voltage Isolation & Surge-Protection Extension Module

产品说明

VMIC+ASSY 12149 is the galvanic-isolation and surge-protection extension module designed by VMIC (now Emerson PACSystems) to stack directly onto the rear-transition terminal assembly VMIC+ASSY 11994R13. When paired with the ultra-fast solid-state relay board ZT5524A1A, the combination delivers 1 000 Vrms channel-to-ground isolation and 4 kV surge immunity while maintaining sub-10 µs switching times. VMIC+ASSY 12149 accepts all I/O signals from VMIC+ASSY 11994R13, isolates them through reinforced digital isolators, and routes them via rugged screw-clamp terminals. ZT5524A1A then provides 24 independent SPST solid-state relays rated for 250 VAC/30 VDC, allowing PLC systems to drive high-energy loads without additional contactors. Both VMIC+ASSY 12149 and ZT5524A1A are engineered for 6U VME64x or standalone DIN-rail mounting and operate over the full –40 °C … +85 °C industrial temperature range.

产品参数

Parameter VMIC+ASSY 12149 ZT5524A1A
Function 1 000 Vrms isolation & surge barrier 24-channel solid-state relay output
Isolation Voltage 1 000 Vrms channel-to-ground, 500 Vrms channel-to-channel 2 500 Vrms input-to-output
Surge Rating IEC 61000-4-5 Level 4 (4 kV) IEC 61000-4-4 Level 4 (2 kV EFT)
Switching Element Reinforced digital isolators (SiO₂) 24 × SPST SSR, 0.2 A continuous
Load Voltage — 30 VDC / 250 VAC
Load Current — 0.2 A continuous, 1 A (100 ms surge)
On Resistance — <0.5 Ω typical
Turn-On/Turn-Off Time <1 µs propagation <10 µs
Terminal Type Pluggable screw-clamp 0.2–4 mm² Pluggable screw-clamp 0.2–4 mm²
Status Indication 8 fault LEDs 24 SSR-status LEDs
Power Supply 5 V/0.3 A from VME or ext. 24 V 5 V/0.8 A logic, 24 V/0.1 A field
Operating Temperature –40 °C … +85 °C –40 °C … +85 °C
Certifications CE, UL, ATEX Zone 2, RoHS CE, UL, ATEX Zone 2, RoHS

优势和特点

• Stackable Architecture: VMIC+ASSY 12149 snaps directly onto VMIC+ASSY 11994R13 without cables, saving 30 % panel space.
• Medical-Grade Isolation: Reinforced SiO₂ isolators in VMIC+ASSY 12149 provide 1 000 Vrms continuous and 4 kV surge, exceeding IEC 60601-1 requirements.
• Ultra-Fast SSRs: ZT5524A1A delivers <10 µs switching times, ideal for PWM control of heaters or laser modulators.
• LED Diagnostics: Every relay in ZT5524A1A and every isolated channel in VMIC+ASSY 12149 has a bicolor LED for instant fault identification.
• Wide-Gauge Terminals: Both modules accept stranded wire up to 12 AWG, reducing installation torque and increasing vibration resistance.
• Redundant Power: VMIC+ASSY 12149 can be powered from the VME backplane or an external 24 V supply for fail-safe operation.

应用领域应用案例

• Offshore Gas Compression: A North Sea platform stacks VMIC+ASSY 12149 onto VMIC+ASSY 11994R13 to interface 24 high-pressure transmitters. The 4 kV surge rating withstands lightning-induced transients, eliminating false trips for 18 months.
• Semiconductor Etch Tool: A 300 mm fab uses ZT5524A1A to switch 24 heater zones at 2 kHz PWM, achieving ±0.1 °C temperature uniformity.
• Electric Vehicle Battery Test: A U.S. lab uses VMIC+ASSY 12149 plus ZT5524A1A to safely isolate 600 VDC battery-cycling relays controlled by a PACSystems PLC.

竞品对比

Feature VMIC+ASSY 12149 + ZT5524A1A NI PXI-2586 Acromag 806T-1500 GE IC693MDL940
Isolation Voltage 1 000 Vrms / 2 500 Vrms 150 Vrms 1 500 Vrms 150 Vrms
Surge Level IEC 61000-4-5 L4 IEC 61000-4-5 L2 IEC 61000-4-5 L4 IEC 61000-4-5 L1
Switching Speed <10 µs (SSR) <1 ms (reed) <1 ms (EMR) <10 ms (EMR)
Channel Count 24 SSR 16 relay 8 relay 16 relay
Hot-Swap Terminals Yes No Yes No
Temperature Range –40 °C … +85 °C 0 °C … +55 °C –40 °C … +70 °C 0 °C … +60 °C

选型建议

Choose VMIC+ASSY 12149 + ZT5524A1A when your application demands:
  1. Sub-10 µs SSR switching with 1 000 Vrms isolation.
  2. 4 kV surge immunity for offshore or heavy-industry environments.
  3. ATEX Zone 2 certification for explosive atmospheres.
    For cost-sensitive indoor panels, GE IC693MDL940 offers 16 EMR outputs at lower price but with slower switching and lower isolation. If software-centric PXI integration outweighs isolation, NI PXI-2586 provides excellent driver support but only 150 Vrms isolation.

注意事项

• Ensure the VME rear-transition slot depth is ≥35 mm when both VMIC+ASSY 12149 and ZT5524A1A are stacked.
• Use shielded twisted-pair for analog signals passing through VMIC+ASSY 12149 to maintain 90 dB CMRR at 100 kHz.
• Torque screw-clamp terminals to 0.5 N·m; over-torque can crack the housing.
• Verify that upstream analog boards (e.g., VMIC+ASSY 11993R2) are Rev D or later to enable automatic fault reporting from VMIC+ASSY 12149.
我们是您值得信赖的合作伙伴，我们提供 VMIC+ASSY 12149 和 ZT5524A1A 及其他自动化备件的销售和技术支持。给您特别的优惠折扣价格。请联系我们，我们将竭诚为您服务。
