VIBRO METER VMF-IOC4T 200560-101-017 200-560-000-111

Description

Product Description

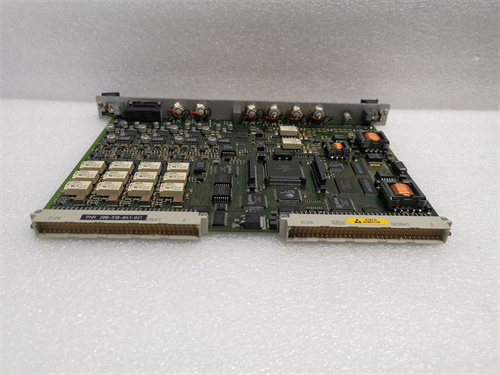

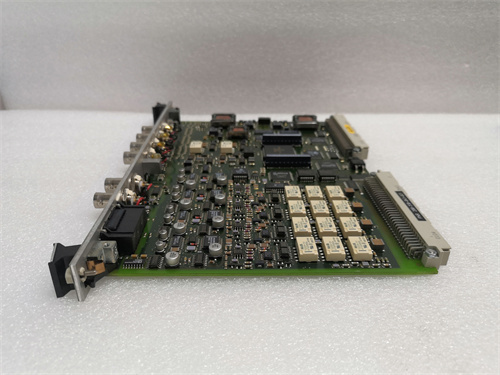

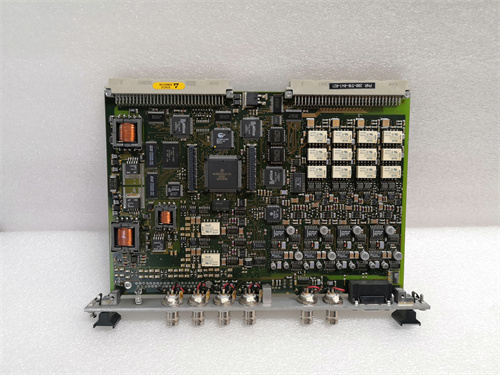

The VIBRO METER VMF-IOC4T 200560-101-017 (also referenced under part number 200-560-000-111) is a versatile 4-channel Input/Output Controller module designed for the VIBRO METER VM600 and VMF (Vibro Meter Frame) machinery protection and condition monitoring systems. This module serves as a fundamental building block, acting as the primary interface between field sensors and the system’s central processing unit. The VIBRO METER VMF-IOC4T 200560-101-017 is responsible for the critical tasks of acquiring raw analog signals from transducers, performing initial signal conditioning and digitization, and executing real-time monitoring and protection logic for up to four measurement points. Engineered for high reliability, this module is central to converting physical machine vibrations and positions into actionable data. You can review detailed technical specifications for this essential I/O module at VIBRO METER VMF-IOC4T 200560-101-017. Its design is optimized for integration within the modular VM600 rack, where the VIBRO METER VMF-IOC4T works in concert with other modules to provide a comprehensive monitoring solution. For applications requiring precise, multi-point monitoring with fast system response, implementing the VIBRO METER VMF-IOC4T 200560-101-017 is a strategic choice.

Product Parameters

• Channels: Four (4) independent analog input channels.
• Input Types: Software-configurable for a wide range of sensors including Eddy Current displacement probes (for vibration and position), velocity sensors, and accelerometers. Accepts industry-standard signals (e.g., -24 VDC gap voltage, -1 to -11 VDC for vibration).
• Analog-to-Digital Conversion: High-resolution, simultaneous sampling A/D converters for accurate waveform capture on all channels.
• Processing: Contains a local processor to run dedicated monitoring applications (APMs – Application Modules) for each channel, performing real-time computations like peak-to-peak, RMS, gap voltage, and speed.
• Outputs: Provides both configurable 4-20 mA analog outputs per channel and digital communication via the high-speed VMibus backplane to the system’s Rack Controller.
• Diagnostics: Continuous hardware and sensor diagnostics (OK/Not OK) for each channel.
• Power Supply: Powered through the VM600 rack’s backplane.

Advantages and Key Features

• High Channel Density & Performance: Four fully independent, high-fidelity measurement channels in a single-slot module optimize rack space and reduce cost per point.
• Software-Defined Flexibility: The function of each channel on the VIBRO METER VMF-IOC4T 200560-101-017 is not fixed in hardware but is determined by the loaded APM software, allowing a single module type to serve multiple roles (vibration, position, speed).
• Local Intelligence: By processing data locally, it ensures deterministic, fast response for protective alarms and trips, independent of network or central processor load.
• Seamless Integration: Designed specifically for the VM600 ecosystem, ensuring perfect compatibility and data integrity across the system.
• Advanced Diagnostics: Offers comprehensive fault detection for the entire measurement chain, from sensor to module, enhancing system reliability and maintenance planning.

Application Cases in Relevant Fields

• Gas Turbine Monitoring: Used to monitor both radial vibrations (X and Y directions) and axial position of a gas turbine generator, with all four channels of a single VIBRO METER VMF-IOC4T module potentially covering one bearing.
• Compressor Trains: Ideal for monitoring multi-stage compressors, where several I/O modules can be configured to handle vibration and position for multiple bearings and case vibrations.
• Pump Monitoring: Provides protection for high-energy boiler feed pumps or critical cooling water pumps in power plants and refineries.
• Hydro Turbines: Configured for low-speed applications to monitor guide bearing wear and shaft runout.

Comparison with Competing Products
This module competes directly with 4-channel input modules from other major system OEMs, such as the Bently Nevada 3500/42M (or 3500/25) or the GE Bently Nevada 3300/16-01-01-00-00. The key differentiator for the VIBRO METER VMF-IOC4T 200560-101-017 is its architecture within the VM600 system. Unlike traditional systems where a separate “monitor” card is needed for scaling/alarming, the IOC4T integrates this functionality via software. This makes it more flexible and potentially reduces the variety of spare modules needed. Compared to using discrete PLC analog input cards, the VMF-IOC4T provides vastly superior signal processing fidelity, dedicated protection logic, integrated sensor diagnostics, and machinery-specific engineering units out-of-the-box.

Selection Suggestions and Precautions

1. Confirm System Compatibility: Ensure you are selecting this module for a compatible VM600 or VMF series rack. Verify the rack controller model and firmware version support the VIBRO METER VMF-IOC4T 200560-101-017.
2. Software Applications (APMs): The module requires the appropriate Application Module software licenses to be loaded for each channel to define its function. Budget for and procure the necessary APM licenses (e.g., Vibration APM, Position APM).
3. Sensor Compatibility Check: Verify that your existing or specified sensors (probe, extension cable, driver) are compatible with the input ranges and excitation provided by the module.
4. Configuration Tools: Access to VM600 configuration software (e.g., VM600 Workbench) is mandatory for setup, scaling, and commissioning.
