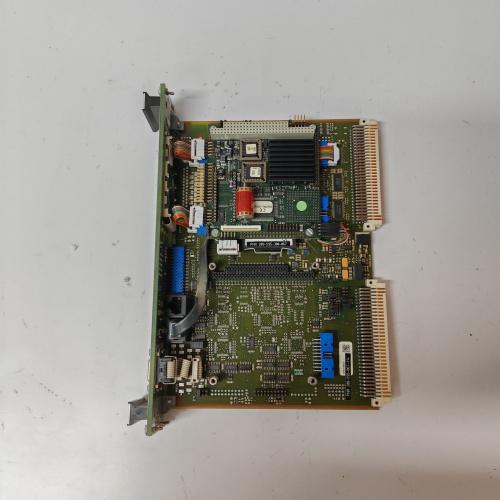

Vibro-Meter VMF-CPUM 200-595-046-114

Description

Product Description
The Vibro-Meter VMF-CPUM is a critical Central Processing Unit (CPU) Module designed for the VMF framework, a robust machinery protection and condition monitoring system. This specific component, with part number R200-595-046-114, serves as the computational and communications core of the VMF rack. The Vibro-Meter VMF-CPUM module orchestrates all system activities: it manages data acquisition from various monitoring modules (such as vibration, speed, and temperature cards), executes the system’s application logic and protection algorithms, handles internal diagnostics, and acts as the primary gateway for external communication with Distributed Control Systems (DCS), Programmable Logic Controllers (PLCs), and plant networks. The performance and reliability of the Vibro-Meter VMF-CPUM are paramount, as it ensures the integrity of the entire protection system, consolidating machine health data into actionable information and reliable shutdown commands.

Product Parameters

• Model: VMF-CPUM (Central Processing Unit Module) for the VMF System.
• Part Number: R200-595-046-114.
• Primary Function: System controller, data processor, and communication interface.
• Processing Power: Contains the microprocessor and memory to run the VMF system software and application configuration.
• Communication Ports: Typically equipped with multiple industrial communication interfaces, which may include RS-232/485 serial ports and an Ethernet port (10/100Base-T).
• Protocol Support: Commonly supports standard industrial protocols such as Modbus RTU, Modbus TCP/IP, and potentially OPC for seamless integration into wider automation architectures.
• System Integration: Manages the VMF backplane, coordinates all installed I/O modules, and stores the complete system configuration.

Advantages and Features

• Centralized System Intelligence: The Vibro-Meter VMF-CPUM provides a unified platform for complex protection logic, including voting schemes, derived calculations, and custom algorithms beyond basic channel monitoring.
• Seamless Plant Integration: Its built-in support for industry-standard protocols like Modbus TCP/IP allows for straightforward and reliable data exchange with virtually any modern DCS, PLC, or SCADA system, making the valuable machinery data readily accessible plant-wide.
• High Availability Design: The VMF system architecture often supports CPU redundancy. The VMF-CPUM module is designed for such critical applications, featuring failover capabilities to maximize system uptime.
• Advanced Diagnostics and Configuration: Offers comprehensive system health monitoring and detailed diagnostics for all connected modules. Configuration is performed via dedicated software, allowing for offline simulation and easy troubleshooting.
• Firmware-Based Upgradability: System capabilities and protocol support can often be enhanced through firmware updates, providing a degree of future-proofing for the protection system.

Application Cases in Application Fields
The Vibro-Meter VMF-CPUM is deployed as the brain of protection systems in high-value industrial settings:

• Electric Power Generation: In gas turbine power plants, the CPU integrates vibration, speed, and temperature data from the turbine, communicating trip signals to the turbine control system and operational data to the plant DCS for performance monitoring.
• Pipeline & Compression: At remote compressor stations, it protects large integral or centrifugal compressors, sending critical alarms to the station’s Safety Instrumented System (SIS) and compressor control PLC while providing data to a pipeline SCADA center.
• Heavy Industrial Manufacturing: Used on critical assets like large induced draft fans in steel mills or high-pressure pumps in chemical plants, where it provides direct Modbus connectivity to the facility’s main automation system for centralized monitoring.
• Marine Propulsion: Safeguards main propulsion diesel engines or turbine drives on vessels, integrating machinery safety data into the ship’s integrated automation system (IAS).

Comparisons with Competing Products

• Vs. Bently Nevada 3500/92 (System Interface) or 3500/22M (Framework Controller): The Vibro-Meter VMF-CPUM occupies a similar role. A key differentiator often lies in the system’s software ecosystem and the specific communication protocol offerings. The VMF system is recognized for its user-friendly configuration tools.
• Vs. Emerson Bently Nevada 3500/25 (TDI Interface): The VMF-CPUM generally provides more direct and versatile network connectivity (Ethernet) as a standard or core feature, whereas some older interface modules may require additional gateway hardware.
• Vs. Using a PLC as the Main Controller: While a PLC can perform logic, the VMF-CPUM is part of a dedicated, certified machinery protection system. It is specifically designed and tested for the high reliability, fast response times, and specialized diagnostics required for safety-critical machine protection, which a standard PLC is not pre-certified to provide.

Selection Suggestions and Precautions

1. Confirm System Compatibility: Absolutely verify that the R200-595-046-114 CPU module is compatible with your specific VMF rack model and the other installed I/O modules (e.g., vibration, relay cards). An incompatible CPU can cause system failure.
2. Define Communication Requirements: Before procurement, explicitly define the required network protocol (e.g., Modbus TCP/IP IP address scheme, Profibus node address) to ensure this specific CPU variant supports it natively or with the correct firmware.
3. Backup Configuration: The system configuration is stored on the VMF-CPUM module. Always create a complete backup of the configuration using the manufacturer’s software before replacing, upgrading, or performing maintenance on the CPU.
4. Consider Redundancy: For applications where unscheduled downtime is unacceptable, inquire about and implement a redundant CPU configuration. This requires specific hardware setup and configuration.
5. Software Version Management: Ensure the configuration software on your engineering PC is compatible with the firmware version running on the CPU module. Mismatches can prevent communication or configuration uploads/downloads.
