TRICONEX T8480 | 24V DC Digital Output Module, 32 Channels

Description

Product Introduction

That offshore platform in the Gulf of Mexico—the one with the Tricon v10 system protecting the production manifold—had a “channel fail” alarm during a routine test. The tech on shift couldn’t clear it. They swapped the solenoid, the cable, even the marshalling cabinet. Nothing. I pulled the T8480 module from the chassis and bench-tested it. Channel 18 had an intermittent open in the output circuit—the TMR voting logic was catching it, so the system stayed safe, but the alarm was real. One bad output transistor, one $5,000 module, one very expensive offshore service call.

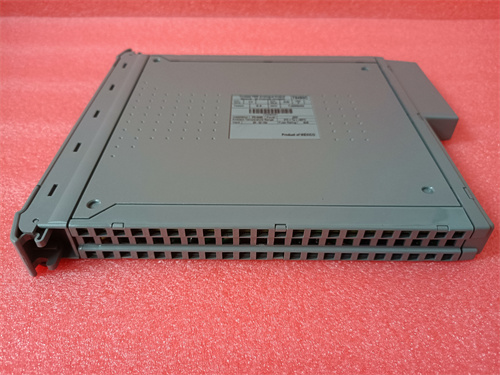

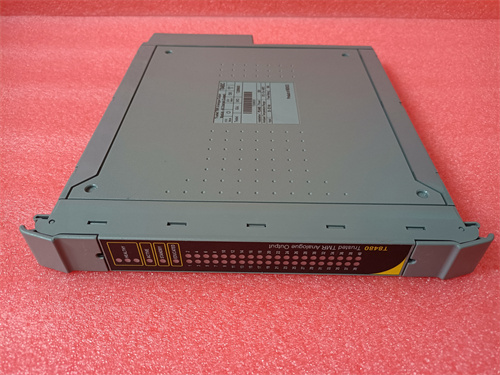

The TRICONEX T8480 is a 32-channel digital output module from the Tricon family. It’s built for the highest safety integrity levels—SIL 3 and above. Inside, it’s not one output circuit but three, voting 2-out-of-3 to determine the actual output state. If one circuit fails, the other two keep the output correct. The module also monitors the field wiring: open circuit, short circuit, and voltage levels. It reports faults to the main processor and to the front-panel LEDs. The T8480 lives in a Tricon chassis, next to the power supply and the main processor. In a refinery or offshore platform, it’s the final link to the field—solenoids, motor starters, alarms. If it fails, the process stops safely—but it stops.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A TMR safety module gets the most thorough test we do. Here’s our process.

1. Incoming Verification
   • Match the model: T8480. (There’s a T8480C variant—different revision.)
   • Visual inspection: Look for bent pins on the backplane connector. Check the front panel for scratches.
   • Inspect the PCB for conformal coating—should be even, no bubbles.
   • Verify the SIL certification mark is present.
2. Power-On Self-Test
   • Install the module in a Tricon test chassis with a known-good power supply and main processor.
   • Apply chassis power—watch the “PASS” LED.
   • Connect to the Tricon engineering workstation, verify the module is recognized and passes its internal diagnostics.
3. TMR Voting Test
   • Configure a channel for output.
   • Measure the output voltage at the field terminal with no load.
   • Simulate a fault in one of the three internal circuits (using test software).
   • Verify the output remains correct (voting works).
   • Repeat for all 32 channels (sample basis, 10% per test run).
4. Output Functional Test
   • Connect a 24V DC load (a 24V lamp or resistor) to each channel in sequence.
   • Command the channel on/off from the processor.
   • Verify the lamp lights, measure voltage drop (<1V at 0.5A).
   • Test all 32 channels simultaneously at 0.25A each (8A total)—monitor power supply voltage.
5. Line Monitoring Test
   • For a sample of channels, simulate open circuit (disconnect load).
   • Verify the fault is detected and reported.
   • Simulate short circuit (connect output to common).
   • Verify the fault is detected and the output is disabled (per design).
6. Isolation Test
   • 500V megger between field terminals (shorted) and backplane ground—>10 MΩ.
   • Repeat between each channel’s terminals and the next channel—>10 MΩ.
7. Thermal Soak
   • 4 hours at 55 °C in a thermal chamber, all outputs at 0.25A load.
   • Monitor for any fault indications or output dropouts.
8. Firmware Verification
   • Read the firmware version via the engineering workstation.
   • Log it in the test report.
   • If the customer requests a specific version, we verify before shipping.
9. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static bag.
   • Double-box with foam padding.
   • Test report included—voting test results, line monitoring check.

Field Replacement Pitfalls

I’ve swapped these in refineries, chemical plants, and offshore platforms. Here’s where people go wrong.

❗Line Monitoring Settings
The T8480 can be configured for different line monitoring thresholds. If you replace a module without uploading the old configuration, the new one may have default thresholds that don’t match your field wiring (e.g., expecting a 10kΩ pull-up when you have 1kΩ). Always back up the config first.

Field Power Polarity
The outputs are sourcing (PNP). That means the load must be connected between the output and common (0V). If you wire it between +24V and the output, it won’t work—and you might damage the module.

External Fusing
The module has no per-channel fuses. If a field wire shorts to ground, the internal output transistor will try to supply unlimited current—until it fails. Always use external fuses (0.5A fast-blow) on each channel.

TMR Voting Surprises
The TMR voting happens inside the module, but the main processor also does voting across multiple modules. If you replace a T8480, the system may see it as a new module and require a full reconfiguration. Follow the Tricon system’s “hot swap” procedure carefully.

Backplane Compatibility
The T8480 only works in Tricon chassis with the right backplane. There are older chassis (v9 vs v10) that have different pinouts. Check your chassis part number before ordering.

Nail these five, and your T8480 will keep that plant safe for years.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this module was manufactured by Triconex (Schneider), packed in its original box, and never installed. The output transistors have zero hours, the TMR voting logic has never been exercised, and the optoisolators are fresh.

Refurbished risk in plain terms
A refurbished T8480 often comes from a decommissioned safety system. It may have run for years in a critical application. The output transistors may have been stressed by countless operations and short circuits. The optoisolators age—their current transfer ratio drops. A refurbisher tests it at low current and calls it good. In a real fault, it might fail to turn on.

Real cost of a refurbished failure
If this module fails to energize a critical solenoid during an emergency, the result could be a fire, an explosion, or a release. The cost of that event is measured in lives, not dollars. Even if it’s just a production outage, the cost dwarfs the price difference.

What we provide as proof

• Triconex box (or photos).
• Serial number recorded.
• TMR voting test results.
• Line monitoring verification.
• 12‑month warranty.

Pricing context
We’re priced 40% above the cheapest “pulled” T8480s and 25% below Schneider’s current list price. That pays for the full TMR test, the thermal soak, and the warranty that covers replacement if a channel fails.

Performance Benchmarks & Test Results

Test conditions: Tricon test chassis, 24.0V DC field supply, 0.25A load per channel, ambient 24 °C.

We keep the full test data—ask, and we’ll email the PDF.
