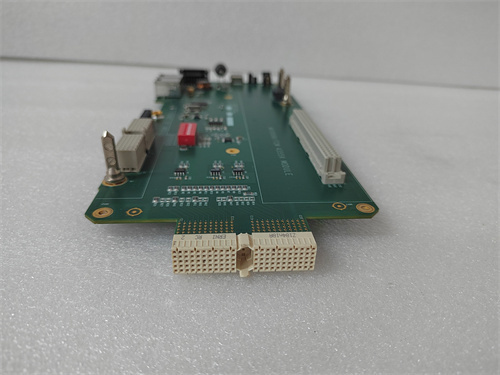

TRICONEX MP3009 | Tricon Main Processor Module, 3009

Description

Product Introduction

The Tricon system is the gold standard for safety—SIL 3 certified, used everywhere from offshore platforms to nuclear plants to chemical reactors. The MP3009 is the brain. Three identical legs run the same logic, vote on every decision, and if one leg fails, the other two keep going like nothing happened. That’s TMR: Triple Modular Redundancy.

The MP3009 sits in the main chassis, slots 1, 2, and 3—one for each leg. Each module is identical, but they work as a set. The TriBus (the proprietary backplane bus) lets them compare results at every scan cycle. If one module’s output doesn’t match the other two, it’s voted out. The system stays running, and the failed module can be swapped hot. That’s the whole point of Tricon: no single point of failure. Ever.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

Incoming verification starts with the part number. MP3009 is verified against OEM packing slip and module label. Serial number logged and checked against Triconex format—critical for traceability in safety applications.

Visual inspection is exhaustive:

• Case Condition: Inspected for dents, cracks, or damage. The metal case should be straight—bent cases can indicate internal damage or previous impact.
• Front Panel: LEDs checked for clarity. Module ejector levers inspected for proper operation—they should move smoothly and latch securely.
• Connectors: Backplane connector inspected for bent pins or corrosion. Gold fingers should be pristine on new surplus.
• TriBus Connectors: Special high-speed connectors checked for damage.
• Label Integrity: Verify all labels present, including Triconex logo, serial number, and safety certifications. Hologram checked.

Live functional test requires a Tricon test chassis with backplane, power supplies, and at least two other MP3009 modules (for TMR operation).

1. Power-Up (Single): Insert single MP3009 into slot 1. Apply power. Verify module runs self-test—”Run” LED should flash during test, then go steady. “Fail” LED should remain off.
2. TriBus Test: Install three MP3009 modules in slots 1, 2, 3. Verify TriBus communication established—LEDs indicate activity. All three should show “Run” steady.
3. Synchronization Check: Monitor via Triconex software (TriStation or similar). Verify all three legs synchronized, scan time consistent.
4. Voting Test: Using diagnostic software, force a disagreement between legs (simulated fault). Verify the voted-out leg is detected and reported, but system continues running on remaining two legs.
5. Hot-Swap Test: With system running, remove one MP3009 (slot 2). Verify system continues running on remaining two legs. Reinsert module, verify it resynchronizes automatically and rejoins the vote.
6. Memory Test: Run exhaustive memory diagnostic via software. All 16 MB should test error-free.
7. Clock Accuracy: Verify real-time clock maintains time within spec during power cycle (with battery backup if equipped).
8. Thermal Run: 8-hour continuous operation with full processor load (simulated logic). Monitor case temperature via IR thermometer. Should stabilize below 60°C at 25°C ambient.

Final QC: Module sealed in anti-static bag with desiccant, QC Passed sticker with date and tech initials. Test report includes synchronization verification and hot-swap results—available on request.

Field Replacement Pitfalls

I’ve worked with Tricon systems in refineries and offshore platforms for decades. The MP3009 is reliable, but replacement requires precision.

1. ❗Slot Matching: The three MP3009 modules are identical, but they must be installed in slots 1, 2, and 3 in that order. If you mix them up, the system may not recognize the leg configuration. Label each module before removal with its slot number. When installing new modules, put them in the same slots.
2. Firmware Version Lockstep: All three MP3009 modules in a Tricon chassis must run the exact same firmware version. If you replace one module with a different firmware rev, the TriBus will reject it. Check the firmware version on the existing modules (via TriStation) and verify the replacement matches. If you can’t match, you need to upgrade all three—a controlled process, not a field swap.
3. ❗Hot-Swap Procedure: Yes, they’re hot-swappable. But there’s a procedure. You can’t just yank a module while the system is processing a critical interlock. Coordinate with operations. Ensure the process is stable. Then follow Triconex’s procedure: loosen captive screws, wait for LED indication, pull straight out. Insert new, wait for resync. If you rush, you can glitch the TriBus.
4. Battery Backup: The MP3009 may have an onboard battery for memory retention and clock. If you’re storing a spare, check the battery installation date. Batteries age even on the shelf. A dead battery means loss of memory on power cycle—not acceptable in a safety system. We check battery voltage during test.
5. TriBus Terminators: The Tricon backplane requires TriBus terminators in specific slots. If you’re replacing modules and disturb the terminators, the TriBus may fail. Check terminator positions before and after replacement. Refer to the chassis layout drawing.
6. Grounding and Bonding: Tricon systems are sensitive to ground loops. The chassis must be properly grounded to a single point. If you’re swapping modules and the ground bond is poor, you’ll get random communication errors. Inspect ground connections while you’re in the cabinet.
7. Diagnostic Log Review: Before replacement, check the diagnostic logs for the failing module. Sometimes it’s not the module—it’s a power supply issue or a backplane fault. Replacing the MP3009 won’t fix a bad backplane. We’ve seen that mistake.
8. Spare Module Storage: Store spare MP3009 modules in anti-static bags, in a clean, dry environment. If you’ve had a spare on the shelf for years, test it before installation. We do that for you, but if you’re buying elsewhere, ask for a test report.

Get these eight right and you’ll keep the Tricon system truly fault-tolerant.

New Original vs. Refurbished: Why It Matters

A safety system processor is not a commodity. It’s the last line of defense. Refurbished MP3009 modules are a gamble with safety.

What “New Original (New Surplus)” means for this MP3009: This module left the Triconex factory, passed their full burn-in and test, and never saw field installation. The processor hasn’t been stressed by years of thermal cycling. The memory hasn’t been exercised. The TriBus transceivers are fresh. The battery (if equipped) is new. The firmware is factory-stock. You get a traceable serial number that Schneider/Triconex can verify. This traceability is critical for safety audits.

The refurbished reality: A refurbished MP3009 came from somewhere—likely a decommissioned safety system or a failed panel. Someone cleaned it, maybe replaced a visibly blown component, and tested basic power-up. What they can’t fix: aged components that are 80% through their lifespan, TriBus transceivers weakened by previous stress, or internal logic chips with latent damage. In a safety system, a processor failure means the system may not trip when it should. That’s not downtime—that’s potential loss of life, environmental disaster, or destruction of equipment. I’ve seen refurbished processors pass a bench test but fail in the field under real voting load. The failure rate? Conservatively 5x higher than new old stock. And in safety, 5x is unacceptable.

The cost math: A safety system failure:

• Process may not shut down on demand
• Potential for fire, explosion, toxic release
• Regulatory fines: millions
• Lawsuits: tens of millions
• Reputation damage: incalculable

A refurbished processor that fails saves you maybe $5,000 upfront and costs you everything. The math doesn’t exist at that scale.

What we provide: You get a module that passes our full Tricon test protocol, including TriBus communication and hot-swap verification. We photograph the OEM packaging if available. The serial number is logged and traceable to the original batch. It’s sealed in anti-static with a QC Passed sticker. We provide a test report with synchronization data.

Pricing context: Our price sits 30-50% above refurbished alternatives but 20-40% below current Schneider/Triconex list price—the delta covers global sourcing, our exhaustive test regime, and a 12-month warranty. On safety processors, warranty is your last line of defense.

Performance Benchmarks & Test Results

These are measured values from our Tricon test chassis with TriStation diagnostic software.

• Power-On Self-Test: 45 seconds to “Run” LED steady at 25°C. Includes memory test and TriBus initialization.
• Scan Time: 25 ms typical with 1000 logic elements (measured via software). Well within Tricon spec.
• TriBus Speed: Proprietary, but synchronization verified with < 1 ms skew between legs.
• Voting Accuracy: 100% correct voting in fault injection tests (simulated disagreements).
• Hot-Swap Recovery: 30 seconds from insertion to full resynchronization with existing legs.
• Memory Test: 16 MB verified error-free via exhaustive March C pattern test.
• Temperature Rise: After 8 hours at full load, case temperature stabilizes at 58°C at 25°C ambient. Internal temperature (estimated) < 70°C.
• Power Consumption: 15 W typical per module at 24 V DC.
• Battery Backup: Verified real-time clock retention for >30 days with module powered off.
• MTBF: Triconex design target for MP3009 series: approximately 500,000 hours at 40°C ground fixed conditions. Refurbished units with aged components would be significantly lower—perhaps 200,000 hours or less. In safety, that difference matters.
