TRICONEX IMFF4703X

Description

Product Description

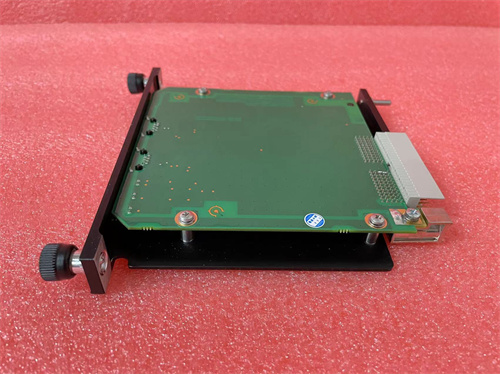

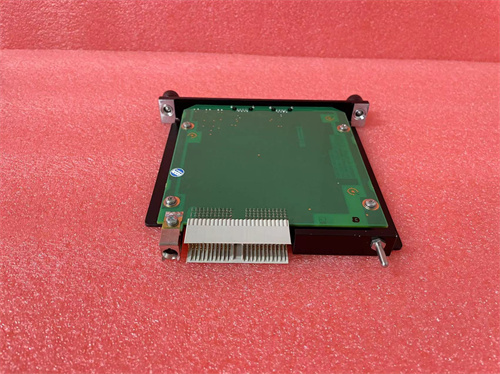

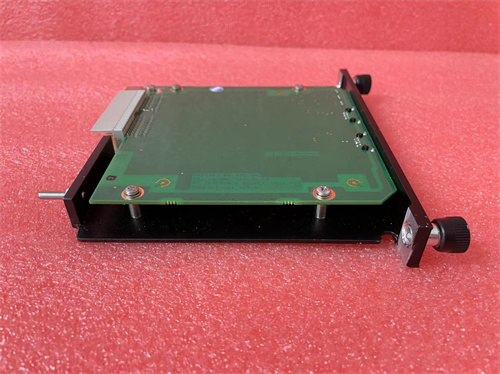

The TRICONEX IMFF4703X is a high-performance Main Processor Module (MPM) for the Triconex Tricon CX series of Triple Modular Redundant (TMR) Safety Instrumented Systems (SIS). This module serves as the central, fault-tolerant brain of the safety controller, executing the application logic that governs critical emergency shutdown (ESD), fire and gas (F&G), and burner management (BMS) systems. The primary function of the TRICONEX IMFF4703X is to provide three independent, synchronized processing channels that vote on all inputs, logic execution, and outputs to ensure that no single point of failure can compromise the safety function. It combines high-speed processing with the robust TMR architecture that Triconex is renowned for. Integrating the TRICONEX IMFF4703X into a safety system provides the highest level of availability and safety integrity, ensuring that protective actions are taken reliably when needed and that nuisance trips are minimized, thereby protecting both personnel/assets and production continuity.

Technical Parameters and Features

• Device Type: Main Processor Module (MPM) for Tricon CX TMR Safety System.
• Safety Architecture: Triple Modular Redundant (TMR). The module contains three identical, isolated processor channels (A, B, C) operating in parallel.
• Processing: Each channel features a powerful processor. The “F4703X” designation indicates a specific generation with enhanced performance, memory, and communication capabilities over earlier versions.
• Memory: Contains ample user memory for application logic and system memory for diagnostics and firmware. Memory is typically mirrored across all three channels.
• Communication Interfaces:
  • TriBus: The proprietary, high-speed TMR bus for communication between the three internal channels and with other TMR modules in the rack.
  • Control Network: Interfaces for the Tricon Control Network (TCN) or other supported networks (e.g., TriStation) for communication with engineering workstations, HMIs, and other control systems.
  • Ethernet Ports: Typically includes standard Ethernet ports for diagnostics and configuration.
• Diagnostics & Health Monitoring: Performs continuous, sophisticated self-diagnostics on each channel and cross-channel communication. Faults are reported in detail to the diagnostic software.
• Hot Swappable: The module can be replaced online without shutting down the Tricon system, supporting high availability.
• Safety Certification: Certified for use in Safety Integrity Level (SIL) 3 applications according to IEC 61508 and IEC 61511.

Advantages and Key Features

• Highest Fault Tolerance: The TMR architecture of the TRICONEX IMFF4703X provides 2-out-of-3 (2oo3) voting on all operations. This means the system can suffer a complete failure in any one of its three channels and still maintain both safe operation and continued control availability.
• High Availability and Safety: By combining fault tolerance with comprehensive diagnostics, the system achieves an extremely low Probability of Failure on Demand (PFD) for safety while also offering a high Mean Time Between Failures (MTBF), minimizing spurious trips.
• Powerful Processing for Complex Logic: The enhanced performance of the IMFF4703X generation allows it to handle large, complex safety applications with extensive logic, mathematical functions, and communications more efficiently than previous processors.
• Seamless System Integration: As the core of the Tricon ecosystem, it guarantees perfect compatibility and deterministic performance with Triconex I/O modules (analog, digital, communication) and the TriStation 1131 programming software.
• Proven in Critical Applications: The Tricon platform, with modules like the IMFF4703X, has a decades-long, global track record of reliability in the world’s most demanding safety applications in oil & gas, petrochemicals, and power generation.

Application Case Studies in Various Fields

• Offshore Oil & Gas Platform (ESD): A Tricon system with an IMFF4703X main processor executes the platform-wide emergency shutdown logic, processing inputs from wellhead pressure sensors, gas detectors, and manual shutdown stations to safely isolate sections of the platform.
• Gas Pipeline Compressor Station: Manages the safety interlocks and permissives for multiple gas turbine-driven compressors. The TMR design ensures a sensor failure does not cause an unnecessary station shutdown that would disrupt pipeline flow.
• Refinery Hydrocracker Unit: Serves as the Safety Instrumented System (SIS) for a high-pressure reactor, executing complex voting logic for temperature and pressure transmitters to initiate a safe depressurization sequence if dangerous conditions are detected.
• Coal-Fired Power Plant (BMS): Acts as the Burner Management System controller, providing fault-tolerant permissive and interlock logic for burner startup, flame monitoring, and emergency fuel cut-off to prevent furnace explosions.

Comparison with Competing Products

Compared to other safety system architectures like dual-channel (1oo2D) or using a general-purpose PLC certified for safety, the TRICONEX IMFF4703X and the TMR approach offer a distinct philosophy:

1. TMR vs. Dual Architecture: The IMFF4703X‘s 2oo3 voting provides higher availability than a 1oo2D system. In a 1oo2D system, a detected fault in one channel often causes a shutdown (safe but potentially costly). In a TMR system, a single fault is masked by the other two channels, allowing operation to continue until the next maintenance window.
2. Dedicated Safety Controller vs. Safety PLC: The Tricon system, centered on the IMFF4703X, is a dedicated safety controller with hardware-based fault tolerance. Some competing “safety PLCs” rely more on software-based redundancy and diagnostics, which can have different performance and certification implications.
3. Comprehensive vs. Simplified Diagnostics: The depth of cross-channel comparison and internal diagnostics in a TMR system like the Tricon is inherently very high, contributing to its safety rating. Other systems may achieve SIL 3 with different diagnostic strategies.

Selection Advice and Important Notes

• System Design by Experts: Designing a Tricon TMR system around the IMFF4703X requires specialized knowledge. Engage with Triconex (now part of Schneider Electric) or a certified system integrator for architecture, sizing, and module selection.
• Redundancy is Inherent: The TMR architecture itself is the redundancy. You do not purchase a redundant pair of IMFF4703X modules; the redundancy is built into the single module and its interaction with I/O modules.
• Mandatory Specialized Engineering Tools: Application development, configuration, and diagnostics are performed exclusively using the TriStation 1131 software suite. Access to this software and trained personnel is essential.
• Implement Rigorous Change Management: Any changes to the safety application logic running on the TRICONEX IMFF4703X must follow a strict safety lifecycle management process, including impact analysis, testing, and re-validation.
• Plan for Hot Swap Procedures: While hot-swappable, the replacement of a main processor module is a major procedure. Always follow the detailed factory instructions for removing and inserting the IMFF4703X to avoid disrupting the operating channels.
