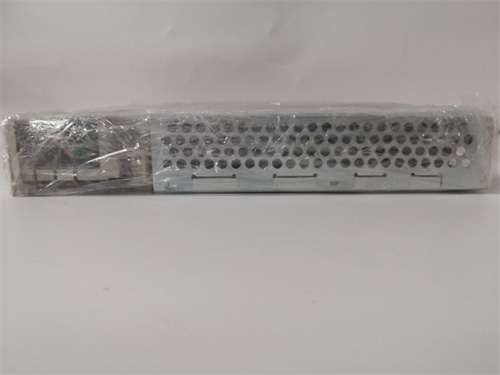

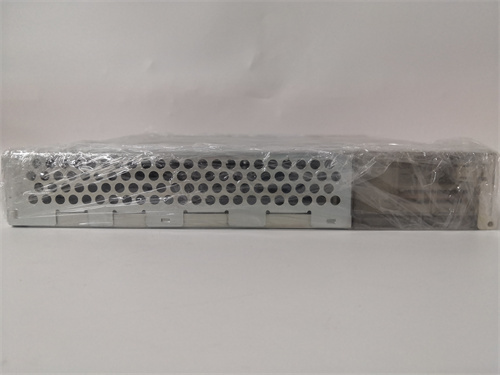

TRICONEX DI6503 Digital Input Module

Product Description

The TRICONEX DI6503 is a high-integrity digital input module for the Triconex/Tricon safety instrumented system (SIS), manufactured by Emerson. This module is a fundamental component of a Triple Modular Redundant (TMR) safety system, designed to reliably read the status of critical field devices such as emergency stop buttons, pressure safety switches, flame detectors, and valve position limit switches. Its primary function is to provide three isolated and independent signal paths for each input point, allowing the TMR system to perform continuous fault detection and 2-out-of-3 (2oo3) voting to achieve an extremely high level of safety availability and reliability. Engineered for the most demanding safety applications, the TRICONEX DI6503 ensures that no single point of failure can prevent the detection of a dangerous condition. For comprehensive safety manuals, certifications, and configuration details, please visit the official product resource: TRICONEX DI6503. The integration of the DI6503 module into a Tricon chassis is critical for building safety loops that meet stringent Safety Integrity Level (SIL 3) requirements. The module’s TMR architecture and robust design make the TRICONEX DI6503 a trusted component in industries where process safety is paramount, ensuring that safety-critical signals are accurately and deterministically communicated to the main safety controllers.

Product Parameters

• Product Model: TRICONEX DI6503
• System Platform: Triconex Tricon Safety Instrumented System (SIS).
• Module Type: TMR Digital Input Module.
• Input Channels: 16 or 32 channels (specific count depends on the exact variant of the DI6503 series).
• Input Type: Typically 24V DC, with configurable thresholds for sourcing or sinking field devices.
• TMR Architecture: Each input channel is triplicated internally with three independent input circuits, processors, and communication paths to the three main processors of the Tricon system.
• Isolation: High degree of isolation between channels and between the field side and the internal system.
• Diagnostics: Continuous online diagnostics for opens, shorts, and internal circuit failures. Diagnostics are performed on each of the three legs independently.
• Voting: The system performs 2-out-of-3 voting on the input data from the three legs to determine a valid state, rejecting a faulty signal from a single leg.
• Response Time: Very fast and deterministic response time, crucial for safety system performance.
• Safety Certification: Certified for use in Safety Instrumented Systems up to SIL 3 according to IEC 61508 and IEC 61511.

Advantages and Features

• Ultra-High Safety and Availability: The TMR design provides both high fault tolerance (no single point of failure) and high availability, ensuring the safety function is always executable and spurious trips are minimized.
• Continuous Online Diagnostics: The module constantly monitors itself and the field wiring for faults, providing immediate alarm if a dangerous undetected fault condition arises, which is a core requirement for maintaining SIL ratings.
• Fault Tolerance and Voting: The 2oo3 voting logic allows the system to identify and ignore a faulty input leg while continuing to operate safely, enabling maintenance to be performed without taking the safety system offline.
• Robust and Secure Design: Built to withstand harsh industrial environments with high EMI/RFI immunity and designed with secure firmware to protect against cyber threats to safety systems.
• Proven Safety Heritage: As part of the industry-leading Triconex platform, the DI6503 has a long, proven track record in the most critical safety applications worldwide, supported by extensive safety documentation and certifications.

Application Cases in Various Fields

• Oil & Gas (Offshore Platform ESD): Reads signals from emergency shutdown valves (ESDVs), pressure safety high (PSH) switches, and fire & gas detectors as part of the Emergency Shutdown System.
• Chemical Plant Burner Management: Monitors flame scanners, fuel valve position switches, and purge air flow switches to ensure safe start-up and operation of industrial furnaces and boilers.
• Power Generation (Turbine Overspeed Protection): Connects to magnetic pickups or proximity sensors on a turbine shaft to provide the critical speed input for the overspeed protection system.
• Pharmaceutical Manufacturing: Used in safety interlocks for high-pressure reactors or toxic chemical handling systems, where a reliable input from a pressure switch or area gas detector is required to initiate a safe shutdown.

Comparison with Competing Products

The TRICONEX DI6503 competes with safety-rated input modules from other SIS vendors like HIMA and Siemens (SIMATIC PCS 7 Safety). Its primary differentiator is its dedicated TMR hardware architecture. Unlike 1oo1D (one-out-of-one with diagnostics) or 1oo2 (one-out-of-two) systems used by some competitors, the DI6503‘s TMR design inherently provides both high safety integrity and high availability, making it the preferred choice for applications where both preventing accidents and avoiding costly nuisance trips are critical. Compared to standard PLC input modules, it is in a completely different class regarding safety certification, diagnostic coverage, and architectural robustness.

Selection Suggestions and Precautions

1. Safety System Engineering Mandatory: The TRICONEX DI6503 must be selected and applied as part of a full Safety Instrumented System (SIS) design governed by a Safety Requirements Specification (SRS) and IEC 61511. It is not a substitute for a standard PLC input module.
2. Tricon System Compatibility: It must be used with a compatible Tricon TMR chassis, power supply, and main processor. Mixing non-Triconex or incompatible modules will void safety certifications and compromise system integrity.
3. Field Device Compatibility: Ensure the field devices (switches, sensors) are compatible with the module’s input specifications (voltage, current, sourcing/sinking). Use approved intrinsic safety barriers if installed in a hazardous area.
4. Configuration and Certification: Configuration must be done using the certified Triconex TriStation 1131 software by qualified personnel. The final application logic and hardware configuration must be validated and documented as part of the overall SIS safety validation.
