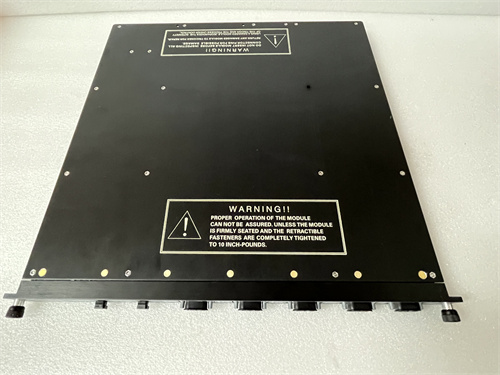

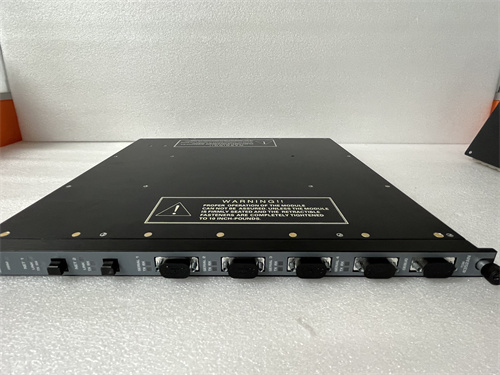

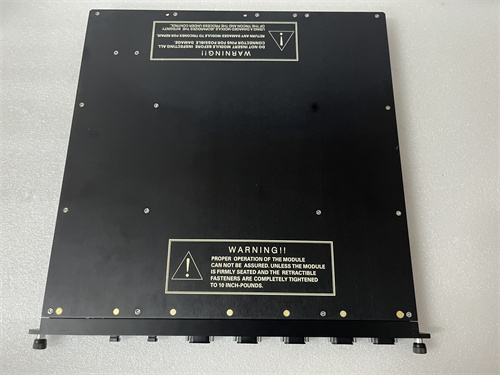

TRICONEX 4352AN

Description

Product Description
The TRICONEX 4352AN is a critical and highly specialized Analog Output Module designed for the Triconex (now part of Schneider Electric) Tricon CX series of high-integrity Safety Instrumented Systems (SIS) and Turbomachinery Control (TMC) systems. This module is engineered to provide a robust, fault-tolerant interface for sending analog control commands from the safety system to final control elements in the field, such as control valves, variable speed drives, or positioning systems. The primary function of the TRICONEX 4352AN is to convert digital commands from the Tricon’s Triple Modular Redundant (TMR) processors into precise, isolated 4-20 mA analog output signals. In safety applications, these outputs are often used for modulating control in Safety Instrumented Functions (SIFs), such as gradually closing a valve to safely depressurize a system. For engineers designing complex safety shutdown systems that require proportional control, the reliability and accuracy of the 4352AN module are non-negotiable. Its design ensures that even in the event of an internal fault, the output will fail in a predetermined safe state, a fundamental requirement for SIS components.

Product Parameters

• Module Type: Analog Output (AO) Module.
• Product Family: Triconex Tricon CX Series Safety System.
• Channels: Typically provides multiple, isolated analog output channels (e.g., 4 or 8 channels).
• Output Signal: Standard 4-20 mA current loop output.
• Resolution: High resolution (e.g., 16-bit) for precise control signal generation.
• Accuracy: High accuracy specification suitable for demanding control applications.
• Isolation: Channel-to-channel and channel-to-system isolation to prevent ground loops and ensure signal integrity.
• Diagnostics: Comprehensive onboard diagnostics monitor module health, output circuit integrity, and field wiring conditions (open circuit, short circuit).
• Safety Architecture: Integrates into the TMR architecture. The module contains three independent output circuits per channel, voted internally to produce a single, highly reliable output.
• Hot-Swappable: Designed to be inserted and removed from the Tricon CX rack without powering down the system, supporting high availability.
• Certifications: Certified for use in safety applications up to SIL 3 according to IEC 61508.

Advantages and Features

• Triple Modular Redundant (TMR) Design: The internal TMR circuitry provides an extremely high level of fault tolerance and diagnostic coverage, which is essential for achieving the high Safe Failure Fraction (SFF) required for SIL 3 loops.
• Predictable Fail-Safe Behavior: The module is designed to de-energize or drive the output to a pre-configured safe state (e.g., 4 mA or 20 mA) upon detection of a fault or loss of communication, ensuring the safety function is maintained.
• High Accuracy and Stability: Provides precise and drift-free analog output, which is critical for modulating control actions in safety-related applications like blowdown or anti-surge control.
• Seamless System Integration: Fully integrated into the Tricon system’s engineering (Tristation 1131) and diagnostic environment, providing a unified workflow for configuration, testing, and troubleshooting.
• Robust Industrial Design: Built to withstand the electrical noise, temperature variations, and vibration found in industrial process environments.

Application Cases in Application Fields

• Oil & Gas (Compressor Anti-Surge Control): Providing the analog output to modulate a recycle or blow-off valve as part of a safety-critical anti-surge controller for a centrifugal compressor.
• Chemical Processing (Emergency Depressurization): Controlling a proportional vent valve to safely and gradually depressurize a high-pressure reactor during a safety shutdown sequence.
• Power Generation (Turbine Control): Used in a TMC system to provide the analog speed reference signal to a turbine’s governor.
• Pharmaceutical (Batch Reactor Safety): Modulating a cooling water valve to control the temperature of an exothermic batch reaction as part of a Safety Instrumented Function (SIF).

Comparisons with Competing Products
The TRICONEX 4352AN competes with analog output modules from other dedicated safety system vendors:

• HIMA HIMatrix F-IO Modules: Both are designed for SIL 3 applications. The 4352AN is distinguished by its internal TMR hardware architecture, whereas HIMA often uses a different (e.g., 1oo2D) hardware philosophy.
• Emerson DeltaV SIS CHARMs: The DeltaV SIS uses a different, highly integrated approach within a process DCS. The 4352AN is part of a standalone, specialized TMR safety controller.
• Siemens SIMATIC ET 200SP F-AO: Part of the S7-1500F/TF ecosystem. The Tricon system, including the 4352AN, is often selected for its long-proven track record in the most critical hydrocarbon and turbine control applications.

The key advantage of the TRICONEX 4352AN is its proven deployment in the most critical modulating safety loops, its hardware-based TMR redundancy at the I/O channel level, and its extensive field history in extreme process conditions.

Selection Suggestions and Precautions

1. Safety Function Specification: The module must be specified as part of a formally designed Safety Instrumented Function (SIF). Define the required fail-safe state (e.g., 4 mA = valve closed) during the SIF design phase.
2. Load Compatibility: Verify that the module’s output can drive the connected field device (e.g., valve positioner) at the required loop resistance (e.g., up to 750 ohms).
3. Configuration and Testing: Each channel must be carefully configured in the Tristation 1131 software for range, fail-safe state, and diagnostics. The entire SIF, including the analog output, must be validated through testing.
4. Wiring and Grounding: Follow Triconex installation guidelines precisely. Use shielded cable for analog signals and ensure proper grounding at a single point to avoid ground loops that could induce noise or errors.
5. Use of Genuine Parts: For safety-critical systems, only use genuine Triconex/ Schneider Electric 4352AN modules. The use of non-certified parts can invalidate the safety certification and compromise the integrity of the safety loop.
