TRICONEX 4351B for Sale | Tested & Certified

Description

Product Introduction

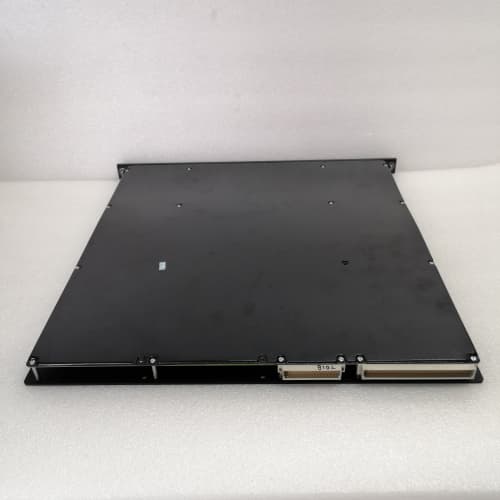

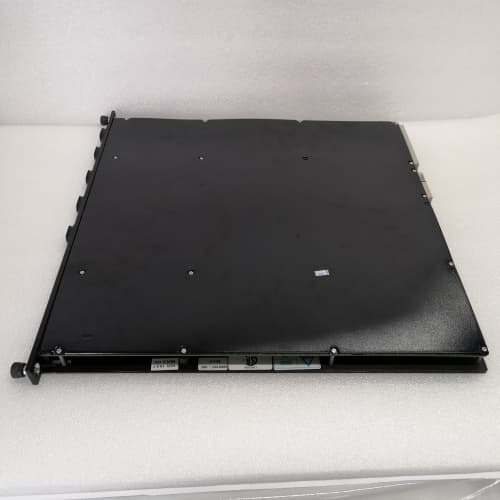

The Triconex 4351B is the 32-channel analog input module for Tricon v9 and v10 safety systems. If you’re in a refinery, offshore platform, or chemical plant, this is the card reading pressure transmitters, level sensors, and flow transmitters that feed the safety logic solver.

It’s triple modular redundant. Three independent legs on one board. Each channel is voted 2-out-of-3 to generate a single process value. The “B” revision improved common-cause failure immunity over the earlier 4351A. We’ve seen these run for 15+ years in sour gas service without a hiccup—provided the field wiring hasn’t been butchered.

4. Key Technical Specifications

 Product Introduction

The Triconex 4351B is the 32-channel analog input module for Tricon v9 and v10 safety systems. If you’re in a refinery, offshore platform, or chemical plant, this is the card reading pressure transmitters, level sensors, and flow transmitters that feed the safety logic solver.

It’s triple modular redundant. Three independent legs on one board. Each channel is voted 2-out-of-3 to generate a single process value. The “B” revision improved common-cause failure immunity over the earlier 4351A. We’ve seen these run for 15+ years in sour gas service without a hiccup—provided the field wiring hasn’t been butchered.

Compatible Replacement Models

When replacing a 4351B, you need to understand the chassis compatibility and termination panel requirements. Mixing revisions can cause diagnostics to fail:

• ✅ Drop-in Replacement: 4351B (same part number). If your chassis is a v9 or v10, the 4351B is the correct module. A new 4351B will slide in, and the Tricon will recognize it and load the configuration automatically. No firmware flashing required at the module level.
• ⚠️ Software Compatible: 4351A. This is the earlier revision. It will physically fit in a v9/v10 chassis and pass analog values. However, the diagnostics are different. The system may report “Module mismatch” or fail to recognize channel line-monitoring features. We’ve seen plants mix them in a pinch, but it’s not recommended for long-term SIL compliance.
• ❌ Hardware Incompatible: 4351C. Actually, there isn’t a 4351C. But the 4352B (Analog Output) or 4353 (RTD) modules will not work. Also, 4351B modules from v8 systems use different backplane keying. If you try to force a v8 module into a v9 chassis, you’ll bend pins. Verify chassis compatibility before ordering.

Frequently Asked Questions (FAQ)

Q: What’s the difference between 4351A and 4351B?
Two main things. First, the 4351B improved electromagnetic compatibility (EMC)—better filtering on the inputs. Second, the line monitoring circuitry was redesigned. The 4351A used a constant current source that sometimes interfered with smart transmitters. The 4351B uses a different method that plays nicer with HART devices. If you have HART, you want the B.

Q: Can I hot-swap a 4351B in a running Tricon?
Yes, the Tricon is designed for online replacement. Pull the old module, insert the new one. The system will run on the two remaining legs while the slot is empty. However—and this matters—if the module was in a “failed” state, verify the root cause before swapping. We’ve seen plants swap three times only to find a shorted field device was taking down the input channel.

Q: What termination panel do I need for the 4351B?
Typically, you’ll use a Triconex 9662-32 or 9662-32S termination panel. The 9662-32S adds surge suppression. These panels connect to the 4351B via a 50-pin ribbon cable. If you’re replacing a 4351A with a 4351B, the same panel works—wiring is identical. But check the cable; older cables may have poor shielding.

Q: My 4351B shows “Channel Failed” on input 17. Is the module bad?
Not necessarily. Disconnect the field wiring at the termination panel. Jumper the input across a known good 250-ohm resistor to simulate 4-20mA. If the channel reads correctly, the field wiring or transmitter is the issue. If it still fails, the input circuit on that specific leg is likely damaged. Since it’s TMR, you may have one leg failed but the channel still passes due to 2-out-of-3 voting. Replace the module eventually, but the process will keep running.

Q: What causes these modules to fail?
In our experience: surges from lightning and ground loops. The 4351B has isolation, but a direct hit on a long cable run can jump the gap. Also, moisture in field junction boxes—water wicks into the cable and corrodes the termination panel connections, sending weird voltages back to the module. Check your panel seals.

Q: Does the 4351B support HART communication?
It passes the analog signal, but it does not decode HART digital data. The module filters out the HART frequency shift keying (FSK). If you need to talk to HART devices for configuration or diagnostics, you need a HART multiplexer or a handheld communicator connected at the field device or termination panel.

Q: What’s the expected lifespan of a 4351B?
Schneider lists a mean time between failures (MTBF) in the hundreds of thousands of hours. Real-world? We replace them for two reasons: channel failure from field surges, or system upgrades. The capacitors on the power supply rails will eventually drift, but we’ve pulled 20-year-old 4351Bs that still passed full factory calibration. Keep spares, but don’t replace them on a schedule unless your site has a history of failures.
