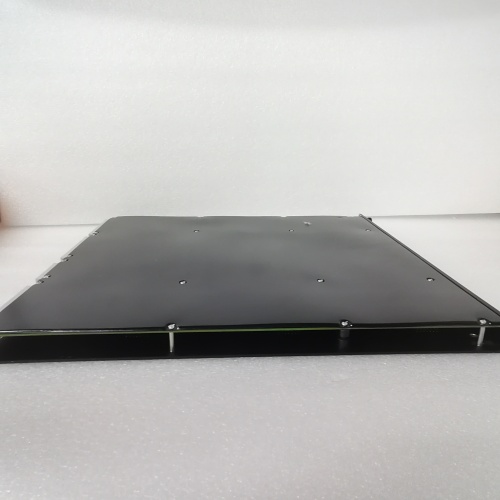

TRICONEX 4329

Description

Product Description

The TRICONEX 4329 is a critical Analog Input (AI) Module for the Triconex Tricon safety instrumented system (SIS). This module is designed to interface with analog field instruments, such as transmitters measuring pressure, temperature, level, or flow, and convert their signals into high-integrity digital data for use by the Triple Modular Redundant (TMR) safety controllers. The 4329 module provides 8 channels of analog input, with each channel independently conditioned, isolated, and monitored. Its primary function is to deliver accurate, reliable, and voted analog process values to the safety logic solvers, which is essential for executing safety functions like trips and interlocks based on precise process conditions. The robust design and comprehensive diagnostics of the TRICONEX 4329 make it a foundational component for building Safety Integrity Level (SIL) 2 and SIL 3 loops in critical process safety applications.

Product Parameters

• Module Type: Analog Input Module (8 channels)
• Compatible System: Triconex Tricon Safety Instrumented System (TMR)
• Number of Channels: 8
• Input Signal Type: Typically accepts 4-20 mA (standard process current) or voltage signals (e.g., 1-5V DC).
• Input Resolution: High-resolution analog-to-digital conversion (e.g., 16-bit).
• Isolation: Channel-to-channel and channel-to-system isolation for safety and noise immunity.
• Accuracy: High accuracy suitable for safety-related measurements (e.g., ±0.1% of full scale).
• Diagnostics: Extensive built-in diagnostics for each channel, including wire break (open circuit), short circuit, and out-of-range detection.
• TMR Architecture: The module operates in a TMR configuration internally; the three separate channels process each input, and the results are voted upon by the main controller.
• Communication: Connects to the Tricon backplane for communication with the main processors.
• Status Indicators: Per-channel LED status indicators and module health LEDs.
• Safety Certification: Suitable for use in systems requiring up to SIL 3 certification per IEC 61508/61511.

Advantages and Features

• High Safety Integrity: The TRICONEX 4329 is designed with TMR principles and extensive diagnostics to prevent dangerous failures and ensure the validity of analog data used in critical safety decisions, supporting SIL 3 applications.
• Excellent Accuracy and Stability: Provides precise and drift-free measurement over time, which is crucial for safety functions that depend on accurate process variable monitoring (e.g., high-pressure trip).
• Comprehensive Fault Detection: Advanced diagnostics can identify field wiring problems (open circuit, short circuit) and internal module faults, allowing for maintenance before the loss of safety function and minimizing spurious trips.
• Robust Noise Immunity: High levels of isolation and filtering protect the integrity of the low-level analog signals from electromagnetic interference (EMI) prevalent in industrial plants.
• Hot Swappable: Designed to be replaced without powering down the entire Tricon system, supporting online maintenance and minimizing process downtime.

Application Cases in Various Fields

• Oil & Gas Refineries: Reading 4-20 mA signals from pressure transmitters on distillation columns or temperature transmitters on reactor vessels to initiate emergency shutdowns.
• Chemical/Petrochemical Plants: Monitoring level in hazardous chemical storage tanks or flow rates in pipelines for high/low level or flow safety interlocks.
• Power Generation (Gas Turbines): Measuring critical bearing temperatures or vibration levels to trip the turbine before mechanical damage occurs.
• Pharmaceutical Manufacturing: Monitoring pressure and temperature in sterile reactors to ensure they remain within safe operating limits.

Comparisons with Competing Products

1. Vs. Standard PLC Analog Input Cards: Standard analog input modules lack the TMR architecture, the level of diagnostic coverage (e.g., on-line circuit monitoring), and the certified design for safety applications. They are not suitable for SIL 2/3 loops where the TRICONEX 4329 is required.
2. Vs. Other Safety System AI Modules (e.g., HIMA, ABB): Competing safety system vendors offer analogous modules. The 4329 is distinguished by its integration into the Tricon TMR ecosystem, offering proven performance, a specific diagnostic philosophy, and support within the Triconex engineering toolset. The three-channel internal processing is a hallmark of the Tricon approach.
3. Vs. Using Multiple Single-Channel Isolators: While isolators can provide signal conditioning, they do not provide the integrated voting, centralized diagnostics, and safety certification of a dedicated safety system module like the 4329.
4. Key Differentiator: Its role as an intrinsically safe, diagnosable, and voted analog front-end for a TMR safety controller is its primary value, ensuring data integrity for the most critical measurements.

Selection Suggestions and Precautions

1. Signal Type and Range Matching: Confirm that the field transmitter’s output signal (e.g., 4-20 mA) matches the configured input range of the TRICONEX 4329 channel. Mismatches will result in incorrect scaling in the logic solver.
2. Proper Field Wiring Practices: Use shielded, twisted-pair cables for analog signals. Ground the shield at one end only (typically at the system ground bar in the Tricon cabinet) to prevent ground loops. Follow Triconex installation guidelines meticulously.
3. Utilize Diagnostics in Logic: Configure the safety application logic to react to diagnostic faults from the 4329 module (e.g., channel fault) appropriately, often by initiating a predefined safe state or alarming for maintenance.
4. Calibration and Loop Checking: While the module itself is highly accurate, the entire loop (transmitter, wiring, 4329 input) should be verified and calibrated during commissioning to ensure the engineering units in the controller reflect the true process value.
5. Hot-Swap Procedure: If replacing a module online, follow the specific Triconex hot-swap procedure to avoid disturbing the communication on the bus. Have the replacement module ready and the procedure documented.
6. Configuration in Triconex Software: The module must be correctly configured within the Triconex Tristation 1131 engineering software, including channel assignment, signal type, and alarm limits.
7. Source from Authorized Channels: Due to its safety-critical nature, always procure the TRICONEX 4329 module from Schneider Electric/Triconex or an authorized distributor to guarantee authenticity, certification, and access to firmware updates and technical support.
