TRICONEX 4119

Description

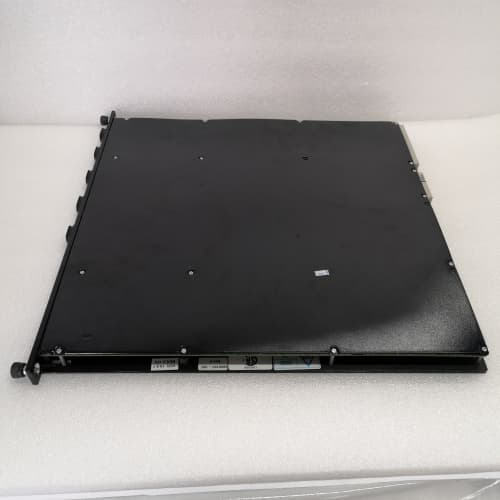

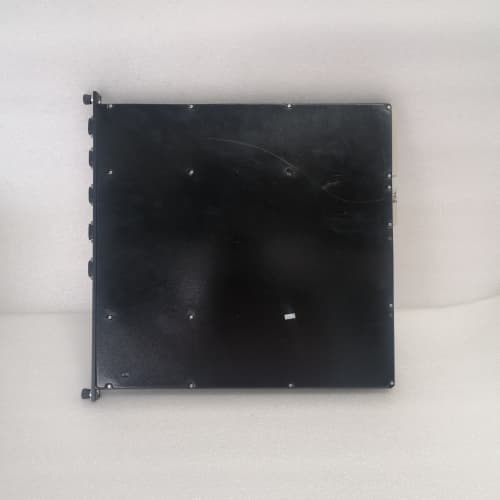

TRICONEX 4119 Product Overview

TRICONEX 4119 is a specialized communication module designed for the Triconex safety instrumented system (SIS) platform, which is part of Schneider Electric’s industrial safety portfolio. As a critical component in high-integrity safety applications, this module facilitates reliable communication between the Triconex safety controller and external systems such as distributed control systems (DCS), HMIs, and plant networks while maintaining the strict separation required for safety integrity. The TRICONEX 4119 is engineered to provide secure, robust data exchange without compromising the safety functions of the main processor. The TRICONEX 4119 is widely recognized in the process safety industry for its reliability and adherence to stringent safety standards. When implementing or maintaining safety systems in hazardous processes, the TRICONEX 4119 represents a genuine, high-integrity communication solution.

Product Parameters and Technical Specifications

The technical specifications of the TRICONEX 4119 highlight its capabilities as a safety-grade communication interface.

• Model Number: 4119
• Series: Triconex Safety System
• Product Type: Communication Module / Network Interface Module
• Primary Function: Provides communication gateway functionality between Triconex safety controllers and external networks, HMIs, or plant control systems.
• Communication Protocols: Supports various industrial protocols including Modbus (RTU/ASCII), and possibly others depending on specific configuration.
• Port Configuration: Typically features multiple communication ports for connecting to different networks or devices simultaneously.
• Isolation: Includes optical isolation to protect the safety system from electrical transients on external communication lines.
• Redundancy Support: Designed to operate in Triconex’s triple modular redundant (TMR) architecture, ensuring communication integrity even in the event of module failure.
• Mounting: Engineered for Triconex chassis installation with secure backplane connections.
• Diagnostics: Comprehensive self-diagnostic capabilities that continuously monitor module health and communication integrity.
• Indicators: Front-panel LED status indicators for power, communication activity, and module health.

Advantages and Core Features

The TRICONEX 4119 offers distinct advantages for safety-critical industrial applications. Its primary feature is the ability to provide external communication access to safety system data without creating pathways that could compromise safety integrity. The module implements strict data separation and validation, ensuring that external requests cannot interfere with safety functions. Furthermore, the TRICONEX 4119 supports redundant communication paths, maintaining data availability even if one communication channel fails. The module includes comprehensive diagnostic coverage, continuously monitoring its own operation and reporting any anomalies to the main processor for appropriate action. With its rugged construction, the 4119 is designed for continuous operation in harsh industrial environments typical of refineries, chemical plants, and other process facilities. The TRICONEX 4119 also features hot-swappable capability, allowing replacement without shutting down the safety system, minimizing process disruption while maintaining protection. The module’s compatibility with Triconex’s TMR architecture ensures that communication functions benefit from the same high-integrity design principles as the safety logic processor.

Application Cases in Key Industries

The TRICONEX 4119 is deployed in high-hazard industries where safety instrumented systems protect people, equipment, and the environment.

• Oil and Gas Production: Used on offshore platforms and remote wellhead sites to communicate safety system status to central control rooms while maintaining safety integrity.
• Petrochemical Processing: Employed in ethylene crackers, polymerization units, and other high-hazard processes where safety system data must be accessible to operators.
• Refining Operations: Integrated into FCC units, hydrotreaters, and alkylation units where safety system communication is essential for situational awareness.
• Power Generation: Utilized in turbine and boiler safety systems where critical status information must be communicated to plant control systems.
• Chemical Manufacturing: Deployed in batch and continuous processes handling hazardous materials, providing safe access to safety system data for operator displays and historical archiving.
• Pipeline Systems: Applied in compressor and pump stations along pipelines for safety system status monitoring and remote indication.

Competitive Comparison

When compared to safety communication modules from competing platforms like HIMA (HIMax) or Honeywell (Safety Manager), the TRICONEX 4119 offers specific advantages within the Triconex ecosystem. While HIMA modules may offer similar communication capabilities, the TRICONEX 4119 provides seamless integration with Triconex’s proven TMR architecture, which has decades of installed base in critical applications. Compared to standard industrial communication modules from Siemens or Rockwell, the 4119 incorporates additional safety-specific features, including enhanced diagnostics and guaranteed separation between safety and non-safety data paths. The TRICONEX 4119 also benefits from Triconex’s extensive safety certifications (TÜV, IEC 61508), ensuring compliance with the most stringent international safety standards. For facilities already using Triconex safety systems, the TRICONEX 4119 represents the only communication solution that maintains the integrity of the safety certification while providing seamless integration with existing engineering tools and practices.

Selection Suggestions and Precautions

When selecting or deploying a TRICONEX 4119, several critical factors require careful consideration.

1. System Compatibility: Verify that the TRICONEX 4119 is compatible with your specific Triconex chassis and main processor model. Different system generations may require specific module revisions.
2. Protocol Requirements: Confirm that the 4119 supports the exact communication protocols required for your application (Modbus RTU, Modbus ASCII, etc.) and that configuration tools are available.
3. Safety Integrity Level (SIL): Ensure that the TRICONEX 4119 deployment maintains the required SIL rating for your overall safety function, considering communication as part of the safety loop.
4. Network Security: Implement appropriate network security measures (firewalls, data diodes) when connecting the TRICONEX 4119 to plant networks to protect the safety system from cyber threats.
5. Configuration Expertise: Ensure personnel configuring the 4119 have appropriate Triconex training and experience, as improper configuration can compromise communication reliability.
6. Redundancy Configuration: If using redundant communication paths, properly configure both TRICONEX 4119 modules and verify automatic switchover functionality during commissioning.
7. Wiring Practices: Follow Triconex recommended wiring practices, including proper shielding and termination, to ensure reliable communication in electrically noisy environments.
8. Genuine Sourcing: Source TRICONEX 4119 modules from authorized distributors to ensure authenticity, as counterfeit or improperly refurbished modules in safety applications can have catastrophic consequences for both personnel safety and environmental protection
