Description

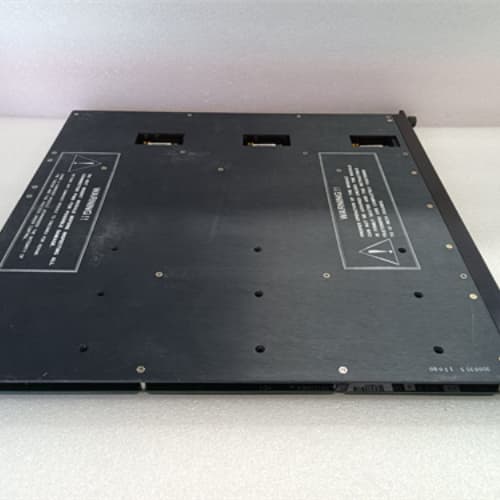

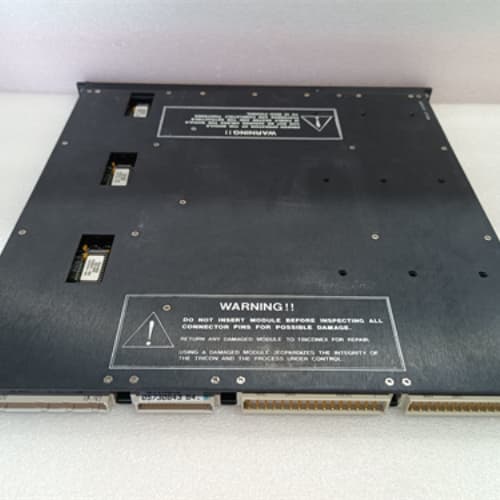

TRICONEX 3700A: Main Processor Module for Tricon v9 Safety System

Product Description

The TRICONEX 3700A is the central Main Processor Module (MPM) for the Tricon v9 Triple Modular Redundant (TMR) safety instrumented system (SIS). This module is the computational heart of the controller, executing the user-configured safety logic across its three independent channels. The TRICONEX 3700A performs continuous diagnostics, synchronizes the three channels, executes the application program, and manages communication with other modules and networks. Its TMR architecture ensures that a fault in any single channel is voted out by the other two, maintaining both the safety function and high system availability. The reliable operation of the entire safety shutdown system is dependent on the integrity of the TRICONEX 3700A. For system architects and maintenance engineers, this processor is the core component of a certified safety solution.

Product Parameters

• Product Type: Main Processor Module (MPM)
• Manufacturer: Triconex (Schneider Electric / Emerson)
• Part Number: 3700A
• Compatible System: Tricon v9 TMR Controller
• Architecture: Triple Modular Redundant (TMR), containing three independent 32-bit processors.
• Memory: Contains user memory for the safety application logic and firmware.
• Communication Ports: Includes ports for the TriStation programming terminal and the TriNet network (Tricon’s peer-to-peer network).
• Diagnostics: Extensive continuous self-diagnostics for CPU, memory, and channel synchronization.
• Voting: Performs 2-out-of-3 (2oo3) voting on all inputs, logic execution, and outputs.
• Hot Swap: Not typically hot-swappable; replacement usually requires a planned controller shutdown.

Advantages and Features

The paramount advantage of the TRICONEX 3700A is its fault-tolerant TMR design, which provides the highest level of hardware safety integrity and availability without the need for external redundancy systems. It features comprehensive fault detection and isolation, ensuring that any single fault does not prevent the system from taking a safe action. The module executes safety logic with a deterministic scan time, which is critical for meeting safety response time requirements. Its integrated design simplifies safety system architecture by consolidating processing and voting into a single module slot. The TRICONEX 3700A is a certified component for use in Safety Integrity Level (SIL) 3 applications per international standards.

Application Cases in Various Fields

This processor is the brain of Tricon systems in the most critical safety applications. In Oil & Gas refineries and offshore platforms, the TRICONEX 3700A executes the logic for Emergency Shutdown (ESD) and Fire & Gas (F&G) systems. Within Chemical and Petrochemical plants, it controls safety interlocks for reactors, distillation columns, and high-pressure pipelines. For Power Generation (including nuclear), it manages burner management systems (BMS) and turbine overspeed protection. It is also deployed in Pharmaceutical manufacturing for critical batch safety and in Marine applications for engine room safety shutdown.

Comparisons with Competing Products

The TRICONEX 3700A represents the classic TMR approach to safety controllers. Competing systems from HIMA often use a diversified, failsafe CPU architecture, while other vendors may use 1oo2D (one-out-of-two with diagnostics) configurations. Compared to using a standard PLC with safety-rated software, the TRICONEX 3700A provides a physically redundant hardware platform that is inherently fault-tolerant, often leading to higher availability and simplified safety certification for complex loops. Its primary competitive edge is its proven track record, extensive installed base, and the comprehensive toolset (TriStation 1131) designed specifically for safety programming.

Selection Suggestions and Precautions

1. System Version Compatibility: The TRICONEX 3700A is specifically for the Tricon v9 system. It is not compatible with older (v8) or newer (v10, Trident) chassis without careful verification. The chassis and I/O modules must also be v9 compatible.
2. Application Backup is Essential: The safety application program is stored in the TRICONEX 3700A‘s memory. Before any intervention, a verified and current backup of the application logic must be available. Loss of this program without a backup can be catastrophic.
3. Replacement Procedure: Replacing the main processor is a major activity. It typically requires a complete and safe shutdown of the Tricon controller, which may necessitate a planned process outage or a bypass of the safety function under strict management-of-change procedures.
4. Firmware and Application Download: A new or replacement TRICONEX 3700A module will need to have the correct firmware version installed and then have the specific site application logic downloaded from the TriStation 1131 engineering workstation.
5. Certification and Validation: Any replacement of a safety system’s main processor, including the TRICONEX 3700A, must be followed by a thorough validation test to ensure the system operates exactly as per the Safety Requirements Specification (SRS). This is a mandatory step in the safety lifecycle. Work should be performed by or under the supervision of Triconex-certified personnel.
