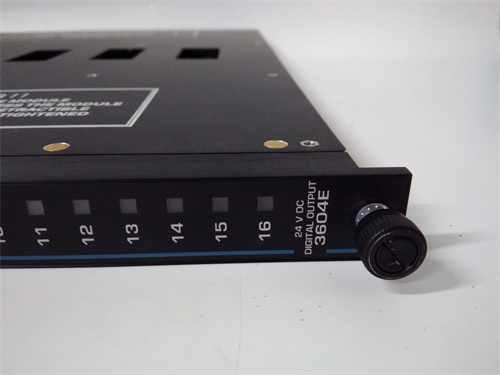

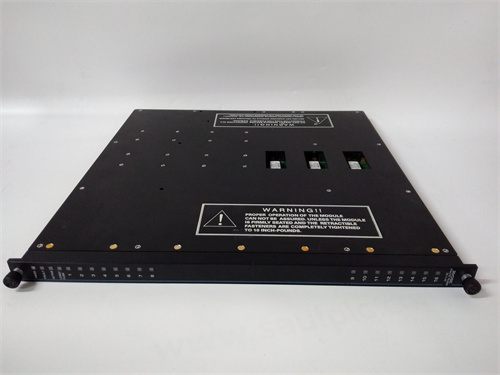

TRICONEX 3604E | TMR Analog Input Module, 32 Channels

Description

Product Introduction

That offshore platform in the North Sea—the one with the Tricon v10 system protecting the production manifold—had a “channel fail” alarm during a routine test. The tech on shift couldn’t clear it. They swapped the transmitter, the cable, even the marshalling cabinet. Nothing. I pulled the 3604E from the chassis and bench-tested it. Channel 17 had an intermittent open in the input circuit—the TMR voting logic was catching it, so the system stayed safe, but the alarm was real. One bad input channel, one $8,000 module, one very expensive offshore service call.

The TRICONEX 3604E is a 32-channel analog input module from the Tricon family. It’s built for the highest safety integrity levels—SIL 3 and above. Each input is actually three independent circuits, voting 2-out-of-3 to determine the correct value. If one circuit fails, the other two keep the reading accurate. The module also monitors the field wiring: open circuit, short circuit, and out-of-range conditions. It reports faults to the main processor and to the front-panel LEDs. The 3604E lives in a Tricon chassis, next to the power supply and the main processor. In a refinery or offshore platform, it’s reading pressures, temperatures, and flows that can trip the process if they go out of bounds.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A TMR analog module gets the most thorough test we do. Here’s our process.

1. Incoming Verification
   • Match the model: 3604E. (There’s a 3604E1 variant—different firmware.)
   • Visual inspection: Look for bent pins on the backplane connector. Check the front panel for scratches.
   • Inspect the PCB for conformal coating—should be even, no bubbles.
   • Verify the SIL certification mark is present.
2. Power-On Self-Test
   • Install the module in a Tricon test chassis with a known-good power supply and main processor.
   • Apply chassis power—watch the “PASS” LED.
   • Connect to the Tricon engineering workstation, verify the module is recognized and passes its internal diagnostics.
3. TMR Voting Test
   • Inject a 12 mA signal into a channel.
   • Simulate a fault in one of the three internal circuits (using test software).
   • Verify the reported value remains correct (voting works).
   • Repeat for a sample of channels.
4. Input Accuracy Test
   • Connect a precision current source (Fluke 753) to each channel.
   • Inject 4.00, 12.00, and 20.00 mA.
   • Read the value from the processor.
   • Must be within ±0.1% of span (0.016 mA at 20 mA).
   • Test all 32 channels simultaneously—no crosstalk.
5. Line Monitoring Test
   • For a sample of channels, simulate open circuit (disconnect current source).
   • Verify the fault is detected and reported.
   • Simulate short circuit (connect input to common).
   • Verify the fault is detected.
   • Simulate out-of-range (<4 mA or >20 mA)—verify fault reported.
6. Isolation Test
   • 500V megger between field terminals (shorted) and backplane ground—>10 MΩ.
   • Repeat between each channel’s terminals and the next channel—>10 MΩ.
7. Thermal Soak
   • 4 hours at 55 °C in a thermal chamber, all inputs at 12 mA.
   • Monitor readings for drift—must stay within spec.
8. Firmware Verification
   • Read the firmware version via the engineering workstation.
   • Log it in the test report.
   • If the customer requests a specific version, we verify before shipping.
9. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static bag.
   • Double-box with foam padding.
   • Test report included—TMR voting results, calibration data.

Field Replacement Pitfalls

I’ve swapped these in refineries, chemical plants, and offshore platforms. Here’s where people go wrong.

❗Loop Power
The 3604E does NOT provide 24V loop power. It’s a 250Ω resistor across the input. If you wire a 2-wire transmitter directly to it without an external supply, you’ll read 4 mA (the burden resistor) but the transmitter won’t power up. Use an external supply or a loop-powered isolator.

Line Monitoring Settings
The module can be configured for different line monitoring thresholds. If you replace a module without uploading the old configuration, the new one may have default thresholds that don’t match your field wiring. Always back up the config first.

Field Wiring Polarity
The inputs are polarity-sensitive. If you reverse the wires, you’ll get a negative reading (or zero). Check the wiring diagram.

TMR Voting Surprises
The TMR voting happens inside the module, but the main processor also does voting across multiple modules. If you replace a 3604E, the system may see it as a new module and require a full reconfiguration. Follow the Tricon system’s “hot swap” procedure carefully.

Grounding
The inputs are differential, but they’re not fully floating—they reference the module’s internal ground. If your transmitter is grounded at the sensor end, you can create a ground loop. Use isolated transmitters or signal isolators.

Nail these five, and your 3604E will keep that plant safe for years.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this module was manufactured by Triconex (Schneider), packed in its original box, and never installed. The ADC has zero hours, the TMR voting logic has never been exercised, and the input circuits are unused.

Refurbished risk in plain terms
A refurbished 3604E often comes from a decommissioned safety system. It may have run for years in a critical application. The analog components drift with age—an ADC that was within 0.1% ten years ago might be 0.5% off now. A refurbisher tests it at a few points and calls it good. In a real fault, it might be inaccurate.

Real cost of a refurbished failure
If this module reads a pressure 2% low, the safety system might not trip when it should. The result could be a fire, an explosion, or a release. The cost of that event is measured in lives, not dollars.

What we provide as proof

• Triconex box (or photos).
• Serial number recorded.
• TMR voting test results.
• Calibration data (4, 12, 20 mA).
• 12‑month warranty.

Pricing context
We’re priced 40% above the cheapest “pulled” 3604Es and 25% below Schneider’s current list price. That pays for the full calibration, the TMR test, and the warranty that covers replacement if a channel drifts.

Performance Benchmarks & Test Results

Test conditions: Tricon test chassis, 24V DC backplane, Fluke 753 source, ambient 24 °C.

We keep the full calibration data—ask, and we’ll email the PDF.
