TRICONEX 3511

Description

Product Overview and Description

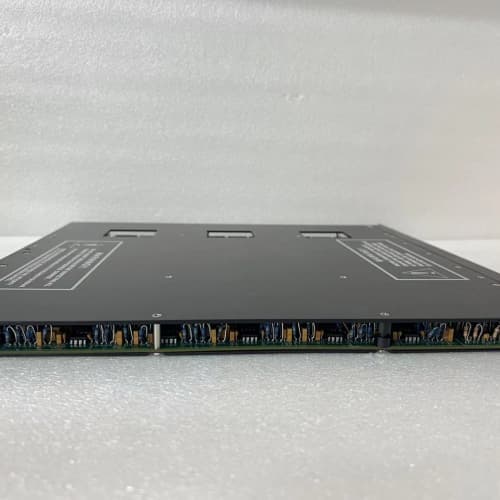

The TRICONEX 3511 is a high-reliability digital output module designed for use in the Triconex Tricon safety system, the industry standard for fault-tolerant, triple-modular redundant (TMR) process and critical control applications. This module is a critical component for issuing discrete control commands to final elements in safety instrumented systems (SIS), such as solenoid valves, motor starters, alarms, and indicator lights. The TRICONEX 3511 is engineered to provide safe, reliable, and deterministic output signals for emergency shutdown (ESD), fire and gas (F&G), burner management (BMS), and other high-integrity safety applications.

The 3511 module is designed for operation in harsh industrial environments and features triple modular redundancy (TMR) architecture, meaning it contains three independent output channels that vote on each output command. This ensures that a single component failure does not compromise the safety function and prevents spurious trips. The use of the TRICONEX 3511 guarantees the highest level of safety integrity (SIL 3 certified) and availability for critical processes in oil and gas, refining, chemical, power generation, and other industries.

Technical Parameters

Based on the analysis of Triconex product documentation, the TRICONEX 3511 possesses the following key characteristics:

• Device Type: Digital Output Module for the Triconex Tricon safety system.
• Architecture: Triple Modular Redundant (TMR) – three independent output channels per point.
• Number of Channels: Typically 32 channels of digital output.
• Output Type: Solid-state DC outputs (typically 24V DC or 48V DC).
• Output Current: Capable of sourcing sufficient current for typical industrial loads (e.g., 0.5A or 1.0A per point, with derating for temperature).
• Fault Tolerance: TMR design allows any single channel to fail without affecting the output state or causing a spurious trip.
• Diagnostics: Comprehensive online self-diagnostics continuously monitor output circuits, detecting faults such as open circuits, short circuits, and stuck outputs.
• Isolation: Optoelectronic isolation between field outputs and the module’s internal logic.
• Indication: Front-panel LED indicators for output status, module health, and diagnostics.
• Power Supply: Powered via the Tricon chassis backplane.
• Mounting: Installs into a dedicated slot in the Tricon chassis.
• Certification: Certified for use in SIL 3 safety applications according to IEC 61508.
• Part Number: TRICONEX 3511 is the specific model identifier for this digital output module.

Advantages and Key Features

The TRICONEX 3511 offers several critical advantages for safety applications:

• TMR Fault Tolerance: The triple modular redundant architecture of the 3511 is its defining feature. It can withstand a failure in any one of its three internal channels without impacting the output, providing both high safety integrity and high availability.
• SIL 3 Certification: Designed specifically for the most demanding safety applications, the TRICONEX 3511 is certified to meet the rigorous hardware integrity requirements of Safety Integrity Level 3.
• Comprehensive Online Diagnostics: The module continuously performs comprehensive self-diagnostics, detecting faults in real-time and reporting them to the main processor. This allows for planned maintenance rather than unexpected failures.
• Line Monitoring: The 3511 can monitor field wiring for open circuits and short circuits, providing valuable diagnostic information to operators and maintainers.
• Proven Technology: The TRICONEX 3511 has been deployed in thousands of critical applications worldwide, proving its reliability and performance in the most demanding industrial environments.

Application Cases in Key Industries

The TRICONEX 3511 is essential in any industry where reliable, high-integrity discrete control is required:

• Oil & Gas Production: On offshore platforms, the 3511 outputs trip signals to solenoid valves on emergency shutdown valves (ESDVs) and blowdown valves. It also drives alarms and annunciators in the control room.
• Refining and Petrochemicals: In refineries, the TRICONEX 3511 controls solenoid valves on critical isolation valves in hydroprocessing units and catalytic crackers. It also starts and stops motors on critical pumps.
• Pipeline Transportation: On compressor and pumping stations, the module outputs commands to shutdown compressors and pumps upon detection of unsafe conditions.
• Power Generation: In turbine control, the 3511 provides trip outputs to steam and gas turbines on overspeed, over-temperature, or loss of flame.
• Chemical Processing: For high-hazard batch processes, the TRICONEX 3511 controls isolation valves and dump valves for emergency relief and containment.

Comparison with Competitors

In the safety system digital output module market, the primary competitors to Triconex are HIMA, ICS Triplex (Rockwell Automation), and Yokogawa.

• TRICONEX 3511 vs. HIMA Digital Output Modules: HIMA offers comparable TMR or 1oo2 output modules. The 3511 with its TMR architecture is specifically designed for applications requiring the highest availability, where even a single de-energized output due to a fault is unacceptable.
• TRICONEX 3511 vs. ICS Triplex Trusted Output Modules: Both provide TMR outputs. The TRICONEX 3511 is a long-standing, widely adopted solution with a vast installed base, particularly in oil and gas and refining.
• TRICONEX 3511 vs. Yokogawa ProSafe Output Modules: Yokogawa offers highly reliable solutions. The TRICONEX 3511 benefits from being part of the Tricon system, which is often specified by engineering contractors for large-scale projects due to its proven track record.

Selection Recommendations and Precautions

1. System Compatibility: The TRICONEX 3511 is designed for specific Tricon chassis and processor models. Verify the compatibility of the module’s revision with your existing Tricon system (e.g., Tricon v9, v10) before ordering.
2. Voltage and Current Ratings: Verify that the output voltage (e.g., 24V DC) and current rating of the 3511 are sufficient for the loads you intend to drive, considering inrush currents for solenoids and other inductive loads.
3. Field Wiring Monitoring: If line monitoring features are required, ensure proper configuration and termination resistors are used on the TRICONEX 3511 outputs to enable open/short circuit detection.
4. External Protection: For inductive loads such as solenoid valves, consider external surge suppression (e.g., freewheeling diodes) to protect the 3511 output circuits from back-EMF.
5. Qualified Personnel: Configuration, installation, and maintenance of the TRICONEX 3511 and the Tricon system must only be performed by personnel specifically trained on Triconex safety systems.
