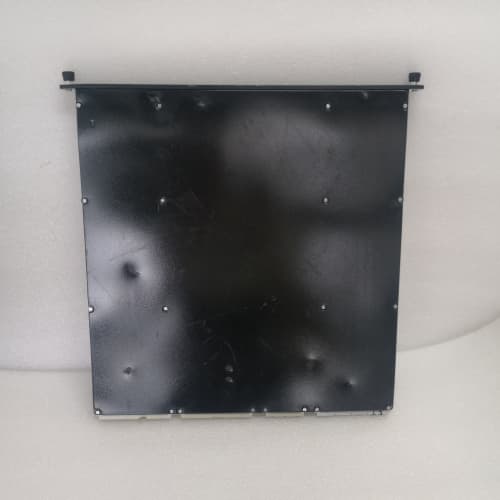

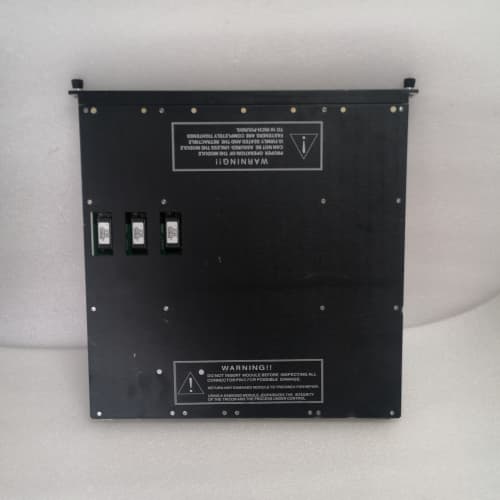

TRICNOEX 3503E

Description

TRICONEX 3503E Product Overview

TRICONEX 3503E is a high-integrity digital output module designed for the Triconex safety instrumented system (SIS) platform, which is part of Schneider Electric’s industrial safety portfolio. As a critical component in safety-critical applications, this module provides reliable, fail-safe digital output signals to field devices such as solenoids, motor starters, and alarm indicators. The TRICONEX 3503E is engineered to operate within Triconex’s triple modular redundant (TMR) architecture, ensuring that safety functions remain operational even in the event of component failures. The TRICONEX 3503E is widely recognized in the process safety industry for its exceptional reliability and adherence to stringent international safety standards. When implementing or maintaining safety instrumented systems in hazardous processes, the TRICONEX 3503E represents a genuine, high-integrity output solution.

Product Parameters and Technical Specifications

The technical specifications of the TRICONEX 3503E highlight its capabilities as a safety-grade digital output module.

• Model Number: 3503E
• Series: Triconex Safety System
• Product Type: Digital Output Module
• Output Channels: Typically 32 channels of digital output (specific configuration may vary)
• Output Type: Sourcing (PNP) or sinking (NPN) depending on specific variant and configuration
• Voltage Rating: 24 VDC nominal, compatible with industrial field device requirements
• Current Rating: Each channel capable of driving typical industrial loads within specified limits
• Isolation: Optical isolation between field outputs and the internal logic circuits for protection against electrical transients
• Diagnostics: Comprehensive online self-diagnostics that continuously monitor output states, load conditions, and internal circuitry
• Redundancy: Designed for TMR operation, with each output controlled by three independent main processors
• Fault Tolerance: Capable of tolerating a single module failure while maintaining correct output states
• Mounting: Engineered for Triconex chassis installation with secure backplane connections
• Compliance: Certified for use in SIL 2 and SIL 3 applications per IEC 61508 standards

Advantages and Core Features

The TRICONEX 3503E offers distinct advantages for safety-critical industrial applications. Its primary feature is the TMR architecture, where three independent channels within the module process each output signal and vote on the correct state, ensuring that any single failure cannot cause an incorrect output. The module includes comprehensive online diagnostics that continuously monitor output device health, detecting faults such as open loads or short circuits and reporting them to the main processor for appropriate action. Furthermore, the TRICONEX 3503E incorporates line monitoring capabilities that verify field wiring integrity without affecting the output state. The module’s fail-safe design ensures that outputs default to a safe state in the event of power loss or detected internal faults. With its rugged construction, the 3503E is designed for continuous operation in harsh industrial environments typical of refineries, chemical plants, and other high-hazard facilities. The TRICONEX 3503E also features hot-swappable capability, allowing replacement without shutting down the safety system, minimizing process disruption while maintaining protection.

Application Cases in Key Industries

The TRICONEX 3503E is deployed in high-hazard industries where safety instrumented systems protect people, equipment, and the environment.

• Oil and Gas Production: Used on offshore platforms to actuate emergency shutdown valves (ESDs) and blowdown valves during process upsets.
• Petrochemical Processing: Employed in ethylene plants and polymerization units to activate safety showers, deluge systems, and equipment isolation.
• Refining Operations: Integrated into FCC units, hydrotreaters, and crude units to drive solenoid valves for emergency isolation and pressure relief.
• Power Generation: Utilized in turbine and boiler safety systems to trip equipment upon detection of unsafe operating conditions.
• Chemical Manufacturing: Deployed in batch and continuous processes handling hazardous materials to initiate emergency procedures and equipment isolation.

Competitive Comparison

When compared to safety output modules from competing platforms like HIMA (F-format) or Honeywell (Safety Manager), the TRICONEX 3503E offers specific advantages within the Triconex ecosystem. While HIMA modules may offer similar SIL ratings, the TRICONEX 3503E provides seamless integration with Triconex’s proven TMR architecture, which has decades of installed base in critical applications. Compared to standard industrial output modules from Siemens or Rockwell, the 3503E incorporates additional safety-specific features, including comprehensive online diagnostics, line monitoring, and guaranteed fail-safe behavior. The TRICONEX 3503E also benefits from Triconex’s extensive safety certifications (TÜV, IEC 61508), ensuring compliance with the most stringent international safety standards. For facilities already using Triconex safety systems, the TRICONEX 3503E represents the only output solution that maintains the integrity of the safety certification while providing seamless integration with existing engineering tools and practices.

Selection Suggestions and Precautions

When selecting or deploying a TRICONEX 3503E, several critical factors require careful consideration.

1. System Compatibility: Verify that the TRICONEX 3503E is compatible with your specific Triconex chassis and main processor model. Different system generations may require specific module revisions.
2. Output Requirements: Confirm that the 3503E output type (sourcing/sinking), voltage, and current capabilities match your specific field device requirements.
3. Safety Integrity Level (SIL): Ensure that the TRICONEX 3503E deployment maintains the required SIL rating for your overall safety function, considering output de-energization times and diagnostic coverage.
4. Load Compatibility: Verify that connected field devices (solenoids, relays, etc.) are compatible with the 3503E output characteristics, including inrush current and inductive load handling.
5. Wiring Practices: Follow Triconex recommended wiring practices, including proper shielding and segregation from power wiring, to maintain signal integrity and noise immunity.
6. Configuration Expertise: Ensure personnel configuring the 3503E have appropriate Triconex training and experience, as improper configuration can compromise safety integrity.
7. Genuine Sourcing: Source TRICONEX 3503E modules from authorized distributors to ensure authenticity, as counterfeit or improperly refurbished modules in safety applications can have catastrophic consequences.
