Description

Product Name

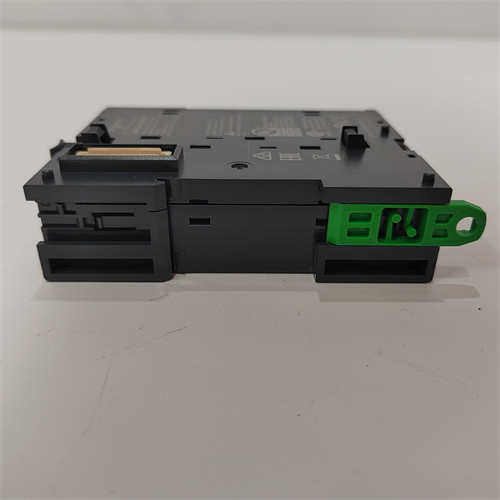

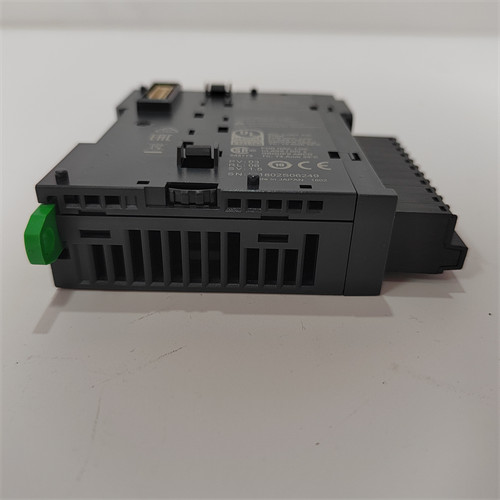

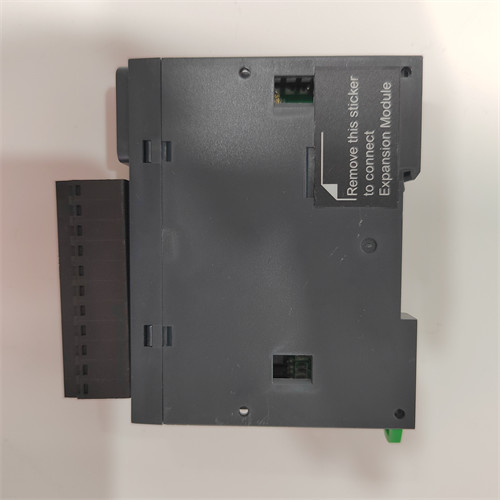

SCHNEIDER TM3AQ4

Product Description

The SCHNEIDER TM3AQ4 is a versatile and innovative modular input/output (I/O) expansion module designed for use with Schneider Electric’s Modicon M221 and M241 series PLCs. This module enhances the capabilities of your automation system by allowing seamless integration of additional I/O channels based on your specific application requirements. The TM3AQ4 is engineered to facilitate efficient data processing and real-time control, making it an ideal choice for various industrial automation environments.

Product Parameters

• Type: Analog Input Module
• Input Channels: 4 (current and voltage)
• Rated Voltage: 24V DC
• Input Range: 0-20mA, 4-20mA, 0-10V, 0-5V
• Resolution: 12 bits
• Communication Protocol: Modbus
• Power Consumption: 2.5W

Advantages and Features

The SCHNEIDER TM3AQ4 offers numerous advantages, including:

• High Precision: With a resolution of 12 bits, this module delivers high measurement accuracy for process control.
• Versatility: Supports multiple input types (current and voltage), making it adaptable to various sensors and devices.
• Compact Design: Its modular design allows for easy installation and expansion of your PLC system without occupying significant panel space.
• Impressive Compatibility: Specifically designed to work optimally with the Modicon series PLCs, ensuring smooth integration.
• Diagnostics: Integrated diagnostic features help in quick troubleshooting and maintenance, enhancing operational uptime.

Application Fields and Case Studies

The TM3AQ4 is widely utilized across several industries including:

• Manufacturing: For monitoring and controlling various production processes.
• Food and Beverage: Essential for temperature and pressure monitoring in processing environments.
• Water Treatment: Used in monitoring and control applications within water purification systems.

In a notable application, a food processing plant implemented the SCHNEIDER TM3AQ4 to monitor liquid ingredients with analog sensors, enhancing the precision of ingredient mixing and significantly improving product quality.

Competitive Comparison

Compared to other brands such as Allen-Bradley and Siemens, the SCHNEIDER TM3AQ4 stands out due to its:

• Cost Effectiveness: Often more competitively priced while providing excellent functionality.
• Broader Input Range Support: Accommodates a wide variety of sensor types, allowing for greater flexibility in system configuration.
• Seamless Integration: The module boasts optimized compatibility with Schneider’s PLCs, ensuring easier setup and configuration.

Selection Advice

When choosing the SCHNEIDER TM3AQ4, consider:

• Your specific input/output needs (volume, type of signals).
• Compatibility with existing PLC systems, particularly Schneider PLCs.
• The processing environment and any potential installation constraints, such as space.

Precautions

Ensure that the power supply meets the specifications outlined in the product parameters to avoid damage to the module. Moreover, consider shielding for analog inputs in electrically noisy environments to maintain signal integrity.

We are your trusted partner, and we provide sales and technical support for the SCHNEIDER TM3AQ4 and other automation spare parts. Enjoy exclusive discount pricing by contacting us, and we will be dedicated to serving you.
