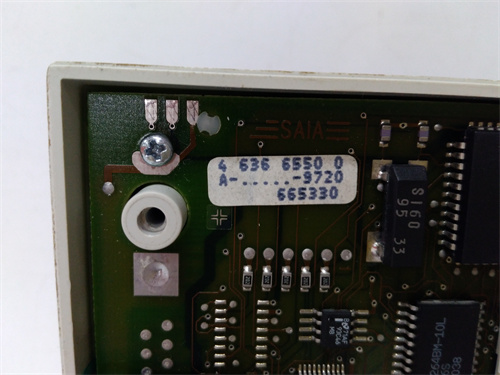

SAIA PCD4.D1XX 463665500

Description

Product Description

The SAIA PCD4.D1XX, with the specific material number 463665500, is a versatile and programmable digital input module for the Saia-Burgess (now Saia) PCD family of programmable logic controllers. This module expands the controller’s capability to monitor the state of on/off field devices by providing a bank of isolated digital input channels. The SAIA PCD4.D1XX is designed to interface with a wide range of DC field signals, converting them into logic levels the PCD CPU can process.

Product Parameters

• Manufacturer / Brand: Saia-Burgess / Saia.
• Series: PCD4 (Modular I/O System for PCD Controllers).
• Model: PCD4.D1XX (Digital Input Module).
• Material Number: 463665500.
• Function: 16-Channel Digital Input Module.
• Input Channels: Typically 16 isolated digital inputs.
• Input Voltage: Designed for DC voltage inputs, commonly 24V DC. The “XX” in the model may specify the exact voltage range or a specific variant.
• Input Type: Configurable as sinking (NPN) or sourcing (PNP) inputs, providing flexibility for different field wiring conventions.
• Isolation: Channel-to-channel and channel-to-system isolation for noise immunity and protection.
• Diagnostic LEDs: Includes a status LED per channel to indicate the active state of each input.
• Connection: Uses a removable screw terminal block or a connector for reliable field wiring.
• Mounting: Mounts on a standard DIN rail and connects to the PCD base unit or extension bus via a system bus connector.
• Power Consumption: Draws power from the PCD system bus; specific current consumption is defined in the datasheet.

Advantages and Features

• High Density: Provides 16 input points in a compact module, maximizing I/O count within a limited panel space.
• Wiring Flexibility: The sinking/sourcing configurable inputs allow the SAIA PCD4.D1XX to interface seamlessly with both NPN and PNP type field sensors without requiring additional interface components.
• Excellent Noise Immunity: Electrical isolation between channels and from the system bus protects the sensitive controller electronics from transients and noise present on field wiring.
• Easy Installation and Maintenance: The use of pluggable terminal blocks simplifies wiring and allows for module replacement without disturbing field wires.
• Seamless System Integration: Fully compatible with the Saia PCD hardware and software ecosystem, automatically recognized and configured within the PG5 programming software.

Application Cases in Industry

• Building Automation: Reads the status of door contacts, occupancy sensors, and manual override switches in a HVAC or lighting control panel.
• Material Handling: Monitors photoelectric sensors, limit switches, and tray present signals on conveyor sorting systems and automated storage/retrieval systems.
• Packaging Machinery: Acquires signals from product presence sensors, safety gate interlocks, and jam detection switches on form-fill-seal and cartoning machines.
• Water Management: Interfaces with float switches for tank level monitoring, pump running status feedback, and alarm acknowledgments in pumping stations.
• Commercial Laundry Equipment: Reads door lock status, water level switches, and temperature thermostat outputs in industrial washers and dryers.

Comparison with Competing Products

Competing products are digital input modules from other European PLC manufacturers, such as Siemens (SIMATIC ET 200SP DI) or WAGO (750-5xx series). The SAIA PCD4.D1XX differentiates itself through its native and optimized integration within the Saia PCD environment and its flexible sinking/sourcing input design. Compared to a standard fixed-type input module, the PCD4.D1XX offers greater application flexibility. Its primary advantage is for users standardized on the Saia platform, where it offers plug-and-play compatibility, straightforward configuration in PG5 software, and reliable performance that matches the controller’s lifecycle.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the SAIA PCD4.D1XX to add digital input capacity to an existing Saia PCD system or when designing a new system with Saia PCD controllers.
  2. Verify the required input voltage (e.g., 24V DC) and ensure your field power supply matches. Confirm the “XX” suffix in your specific order code.
  3. Plan your wiring by grouping signals with common characteristics (e.g., all 24V DC sensors) on the same module for simplicity.
• Precautions:
  1. Field Power Supply: Use a clean, regulated, and isolated 24V DC power supply for the field sensors. A noisy or unstable supply can cause erratic input readings.
  2. Correct Wiring Mode: Determine if your field devices (sensors, switches) are NPN (sinking) or PNP (sourcing) outputs and ensure the corresponding wiring to the PCD4.D1XX terminal block is correct. Refer to the wiring diagram in the manual.
  3. Fusing: Consider adding external fuses on the common supply line for each group of inputs to protect the module wiring in case of a field short circuit.
  4. Grounding: Follow good panel practices by properly grounding the field supply and the PLC system at a single point to avoid ground loops.
  5. Module Handling: While modules are robust, avoid excessive force when inserting or removing them from the base unit. Use the exact material number 463665500 for procurement to ensure you receive the correct variant. Source from authorized Saia distributors for guaranteed compatibility and support.
