SAIA PCD2.M110

Description

Product Overview

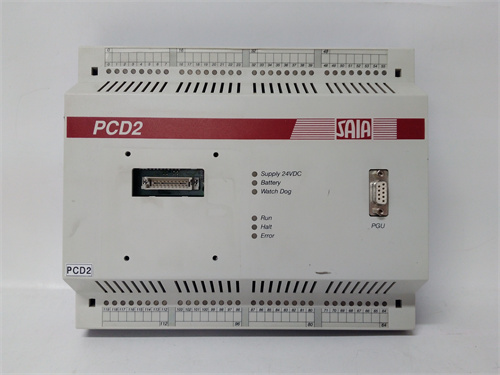

The SAIA PCD2.M110 is a compact and capable programmable logic controller (PLC) from the Saia-Burgess PCD2 series, now part of the Siemens Switzerland portfolio under the Saia PCD brand. This unit represents a step up from the PCD1 series, offering a more powerful CPU and enhanced expansion capabilities while maintaining a compact, integrated design. It combines a central processing unit, a set of digital and analog I/O, and multiple communication ports into a single housing, making it suitable for more complex small to medium-sized automation tasks. The primary function of the SAIA PCD2.M110 is to execute sophisticated user-defined control logic, handling advanced sequencing, process control, data handling, and network communication. For comprehensive technical documentation, programming guides, and wiring schematics, please refer to the official product resource: SAIA PCD2.M110. This PLC is a popular choice for system integrators in building automation and OEM machinery who require more power and connectivity than micro-PLCs offer, but in a space-efficient format.

Product Parameters and Specifications

• Function: Compact Programmable Logic Controller (Integrated CPU with I/O).
• CPU & Memory: Features a more powerful microprocessor than the PCD1 series, with increased program memory and data memory for handling complex applications.
• Integrated I/O: Typically includes a combination of digital inputs (24V DC), digital outputs (relay or transistor), and analog inputs (voltage/current). The specific M110 variant defines the exact count and mix (e.g., 14 DI, 10 DO, 2 AI).
• Communication Ports: A key strength, commonly including:
  • SAIA S-Bus: For connecting Saia expansion modules (digital, analog, special function).
  • Serial Ports (RS-485/RS-232): For programming (PG5 software), Modbus RTU master/slave communication, or connection to peripherals.
  • Ethernet Port: For programming, HMI connectivity, Modbus TCP/IP, FTP, and web server functionality.
• Real-Time Clock (RTC): Often includes a built-in battery-backed real-time clock for time-based operations and event logging.
• Programming: Programmed using Saia’s powerful PG5 Suite software, supporting IEC 61131-3 languages like Function Block Diagram (FBD), Ladder Diagram (LD), and Structured Text (ST).
• Power Supply: Operates on 24V DC or a wide-range AC voltage (e.g., 100-240V AC).

Advantages and Key Features

The SAIA PCD2.M110 offers significant advantages for growing automation projects. Its enhanced processing power allows it to manage more complex logic and data processing tasks efficiently. The integrated Ethernet port is a major feature, providing easy, high-speed connectivity for modern HMIs, SCADA systems, and peer-to-peer communication, which is often an add-on for competitors. The controller maintains the high I/O density and integration of the Saia PCD line, reducing hardware footprint. It boasts a robust and flexible communication suite, supporting both fieldbus (Modbus) and IT protocols natively. The PG5 programming environment is a strong asset, offering advanced debugging and simulation tools. Furthermore, the SAIA PCD2.M110 supports a wide range of expansion modules via the S-Bus, allowing for substantial system scalability without changing the core CPU.

Application Cases in Industry

This PLC is ideal for applications that outgrow micro-PLCs but do not justify a large, modular system. In Building Management Systems (BMS), it controls complex HVAC units, lighting management, and access control systems with network connectivity. For OEM Machinery, such as packaging machines, small assembly lines, or test stands, the SAIA PCD2.M110 provides the necessary I/O, analog processing, and Ethernet connectivity for data logging and integration into factory networks. Within Water and Wastewater, it manages pump control panels with flow and level analog inputs, communicating via Modbus TCP to a central SCADA. It is also widely used in Energy Management systems for submetering and load control in commercial buildings.

Comparison with Competing Products

Compared to the Saia PCD1 series, the PCD2.M110 offers a more powerful CPU, integrated Ethernet, and often more memory, positioning it as a natural upgrade. Against other compact PLCs like the Siemens SIMATIC S7-1200 basic unit, the SAIA PCD2.M110 often competes favorably on built-in features (like having analog I/O and Ethernet as standard in many variants) and the included functionality of the PG5 software. Compared to the Allen-Bradley Micro800 series, the Saia PLC offers a different programming philosophy and a more established presence in European building automation. Its key differentiator remains the powerful yet cost-effective combination of local I/O, processing, and built-in communication ports in one unit.

Selection Suggestions and Precautions

• Selection Advice:
  1. I/O Audit: Carefully review the fixed I/O configuration of the M110 variant. Ensure the number and type of digital inputs/outputs and analog inputs meet your application’s core needs with some spare capacity.
  2. Communication Protocol Needs: Confirm the built-in serial and Ethernet ports support the required protocols (Modbus RTU/TCP, etc.) for your project. The SAIA PCD2.M110 is typically strong in this area.
  3. Expansion Planning: If the integrated I/O is insufficient, plan for S-Bus expansion modules early. Consider the total number of modules and cable length limits of the S-Bus.
  4. Software Proficiency: Ensure access to and familiarity with the PG5 Suite software, as it is required for configuration, programming, and commissioning.
• Important Precautions:
  1. Power Supply and Grounding: Provide a clean, stable power supply per specifications. Proper functional grounding of the PLC is crucial for noise immunity and stable Ethernet communication.
  2. Ethernet Network Security: When connecting the PCD2.M110 to a plant network, implement basic cybersecurity measures such as changing default passwords, disabling unused services, and considering network segmentation/firewalls.
  3. Battery for Real-Time Clock: If the unit has a removable battery for the RTC, check its condition periodically and replace it as needed to prevent time loss on power outages.
  4. Firmware Updates: Check for and apply firmware updates from Saia/Siemens to ensure stability, security, and access to new features.
