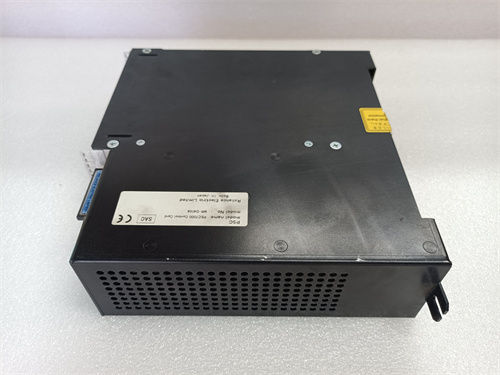

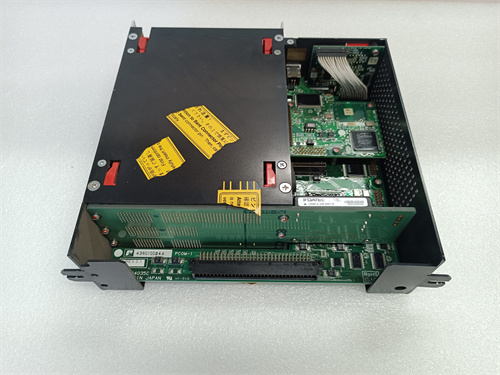

RELIANCE WR-D4008

Description

Product Overview and Description

The RELIANCE WR-D4008 is a high-performance, rack-mounted Digital Input (DI) module designed for use within the Reliance Electric AutoMate family of programmable logic controllers. This module serves as a crucial interface, allowing the PLC system to monitor the status (ON/OFF) of field devices such as switches, sensors, and pushbuttons by converting 24V DC signals into logic levels the processor can understand. The RELIANCE WR-D4008 module is engineered for industrial reliability, providing eight isolated input channels in a compact form factor. When integrating this module into an AutoMate rack, users benefit from a seamless expansion of control system I/O capacity.

Product Parameters

• Module Type: Digital Input (Sinking/Sourcing).
• Number of Channels: 8 isolated inputs.
• Input Voltage: 24V DC nominal.
• Input Current: Typically 5-7 mA per point at 24V DC.
• On-State Voltage Range: 15-30V DC.
• Off-State Voltage: 0-5V DC.
• Isolation: Channel-to-channel and channel-to-bus.
• Compatibility: Designed for AutoMate series PLC racks (e.g., AutoMate 40, 70 series).
• Indication: LED status indicator per channel for easy diagnostics.
• Connector: Removable screw terminal or spring clamp terminal block (varies by shipment).

Advantages and Key Features

1. High-Density Design: The eight-channel configuration of the RELIANCE WR-D4008 maximizes I/O point count per slot, optimizing rack space and reducing cost per point.
2. Robust Electrical Isolation: Provides isolation between field wiring and the controller’s backplane, protecting the PLC from voltage transients and electrical noise common in industrial environments.
3. Wide Voltage Acceptance: The 15-30V DC input range ensures stable operation even with line voltage fluctuations or drops.
4. Diagnostic LED Indicators: Each channel features a bright LED, allowing for instant visual confirmation of the input status, which drastically reduces troubleshooting time during commissioning or maintenance.
5. Proven Reliability: Built to industrial standards, the RELIANCE WR-D4008 is known for its long-term operational stability in demanding applications.

Application Cases in Various Fields

• Material Handling: Monitoring position of pallet stops, conveyor belt run status, and bin level indicator switches in AS/RS systems.
• Packaging Machinery: Reading the state of product-in-place sensors, safety gate interlocks, and wrapper feed alarms.
• Automated Assembly: Detecting part presence at robotic workstations, confirming cylinder extended/retracted positions via solenoid valve feedback, and checking fixture clamp status.
• Building Management: Monitoring the status of security door contacts, fire alarm panel outputs, and pump run feedback signals.

Comparison with Competing Products

Compared to generic or low-cost DI modules, the RELIANCE WR-D4008 offers superior integration and support. Unlike some third-party modules that may require custom configuration or lack certified compatibility, the WR-D4008 is natively supported by Reliance AutoMate programming software, ensuring automatic recognition and simplified configuration. Its isolation specifications are typically higher than those found on economy-grade modules, offering better protection. When compared to other premium brand modules (e.g., Allen-Bradley, Siemens), the RELIANCE WR-D4008 often presents a cost-competitive alternative for existing Reliance AutoMate systems without sacrificing performance, though the ecosystem is more specialized than the market leaders.

Selection Suggestions and Precautions

• Selection Advice:
  • System Compatibility: Confirm that your existing PLC rack is an AutoMate 40 or 70 series chassis. The WR-D4008 is not compatible with other PLC families like Allen-Bradley or Siemens.
  • Sourcing vs. Sinking: Verify the wiring scheme of your field devices to ensure they match the module’s capability (most 24V DC modules like this can be wired in either configuration, but the common terminal must be connected correctly).
  • Power Supply: Ensure your 24V DC power source for the inputs has sufficient current capacity (≥ 60 mA for all 8 points active).
• Important Precautions:
  • Always de-energize the PLC rack and field power before installing or removing the RELIANCE WR-D4008 module.
  • Follow proper industrial wiring practices: use correct wire gauge, provide strain relief, and separate AC power and communication cables from DC signal wiring to prevent noise coupling.
  • For applications with high inductive loads (e.g., solenoid coils), consider using suppression devices at the load to protect the input circuits from voltage spikes.
  • Always reference the official installation manual for the most accurate and safety-critical information.V
