RELIANCE WR-D4005

Description

Product Overview and Description

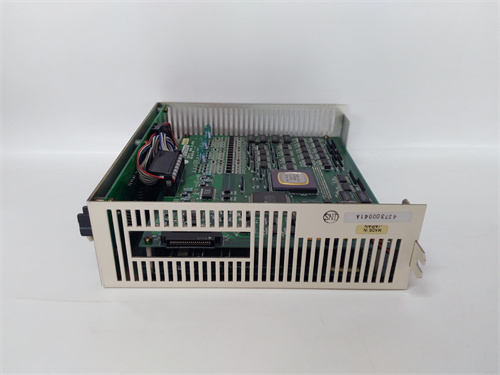

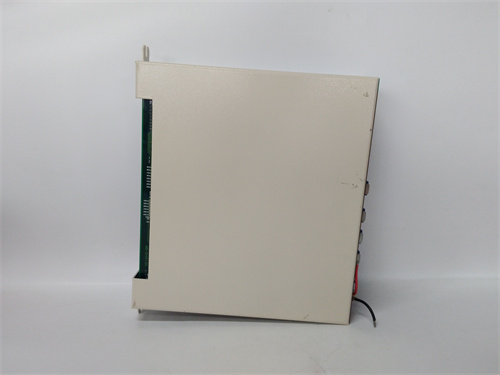

The RELIANCE WR-D4005 is a versatile, rack-mounted Digital Output (DO) module designed for the Reliance Electric AutoMate family of programmable logic controllers. This module functions as a critical interface, enabling the PLC’s logic to control real-world actuators by switching 24-48V DC loads such as solenoid valves, relay coils, indicator lamps, and small motor starters. Engineered for industrial durability, the RELIANCE WR-D4005 provides five isolated solid-state output channels. Its integration into an AutoMate rack expands the control system’s capability to interact with machinery directly and reliably.

Product Parameters

• Module Type: Digital Output (Solid-State, Sourcing).
• Number of Channels: 5 isolated outputs.
• Output Type: Solid-state, DC (Transistor).
• Output Voltage Range: 24-48V DC.
• Maximum Continuous Current per Point: 0.5 A.
• Maximum Inrush Current per Point: 1.0 A for 100 ms.
• Off-State Leakage Current: < 1.0 mA.
• On-State Voltage Drop: < 1.5 V.
• Switching Speed: < 1 ms.
• Isolation: Channel-to-channel and channel-to-bus.
• Compatibility: AutoMate 40 and 70 series PLC racks.
• Indication: LED status indicator per channel.
• Protection: Short-circuit and overload protection (per channel or global, as specified).
• Connector: Removable screw terminal block.

Advantages and Key Features

1. Solid-State Reliability: The RELIANCE WR-D4005 uses transistor outputs, offering fast switching, no moving parts to wear out, and silent operation compared to mechanical relay modules, leading to longer service life.
2. Integrated Protection: Built-in protection against short-circuit and overload conditions helps safeguard both the module and the connected field devices from electrical damage, enhancing system uptime.
3. Clear Diagnostic Feedback: Each of the five channels features a bright LED that provides immediate visual confirmation of the commanded output state, streamlining commissioning and maintenance processes.
4. Wide Voltage Range: The 24-48V DC operating range offers flexibility in interfacing with standard industrial control voltages without requiring external conversion.
5. Compact and Robust Design: The module’s form factor maximizes panel space efficiency, and its construction is designed to withstand the vibration and electrical noise typical of factory environments.

Application Cases in Various Fields

• Machine Automation: Directly controlling pneumatic solenoid valves for cylinder actuation, energizing pilot relays for motor contactors, and powering stack lights or alarm beacons on custom machinery.
• Process Control: Actuating dosing pumps, opening/closing small proportional valves, and controlling agitator motors in batch processing systems managed by an AutoMate PLC.
• Packaging Lines: Triggering glue applicators, activating product diverters, and controlling feed mechanisms on form-fill-seal machines.
• Test Stands & Assembly Fixtures: Powering clamps, actuators, and tooling in automated work cells where the RELIANCE WR-D4005 provides reliable, fast-cycle control.

Comparison with Competing Products

Compared to generic or low-cost transistor output modules, the RELIANCE WR-D4005 offers superior integration and protection features. Many economy modules lack robust short-circuit protection, risking damage during field wiring errors. The WR-D4005 is natively designed and tested for the AutoMate platform, ensuring guaranteed compatibility and ease of configuration in Reliance programming software. When compared to relay output modules (even within the Reliance range), the solid-state RELIANCE WR-D4005 provides much faster switching speed and higher cycle life but requires careful consideration of load type; it is not suitable for AC loads or DC loads requiring isolation via dry contacts. It represents a balanced choice for DC load control within its current rating.

Selection Suggestions and Precautions

• Selection Advice:
  • Load Compatibility: Confirm your loads (valves, relays, lamps) are DC-operated and fall within the 24-48V DC, 0.5A per point specification. Do not use for AC loads.
  • Inductive Load Protection: For inductive loads like solenoid coils, it is highly recommended to use an external flyback (freewheeling) diode across the load to suppress voltage spikes that can damage the transistor outputs.
  • Heat Dissipation: Ensure adequate ventilation in the control cabinet, especially when operating multiple outputs near their maximum current rating, as the solid-state components generate heat.
  • Sourcing Configuration: Remember this is a sourcing output module; the common terminal must be connected to the DC negative (-) side of the power supply.
• Important Precautions:
  • Always de-energize the PLC rack and the field output power supply before wiring the RELIANCE WR-D4005.
  • Strictly adhere to the specified current limits. Exceeding the 0.5A continuous rating will trigger protection circuits and can permanently damage the output channel.
  • Do not use the outputs to directly control large motor starters or heavy AC loads; always use an appropriately rated interposing relay or contactor.
  • Verify the field power supply is properly sized to handle the total current draw of all active outputs plus inrush currents.
  • Always consult the official RELIANCE WR-D4005 installation manual for the most current and detailed safety and wiring guidelines.
