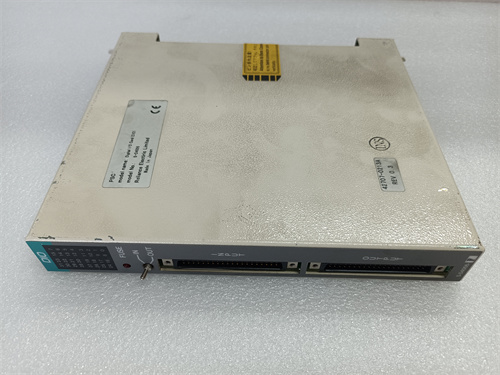

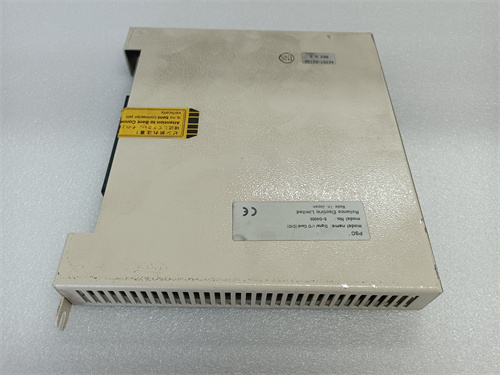

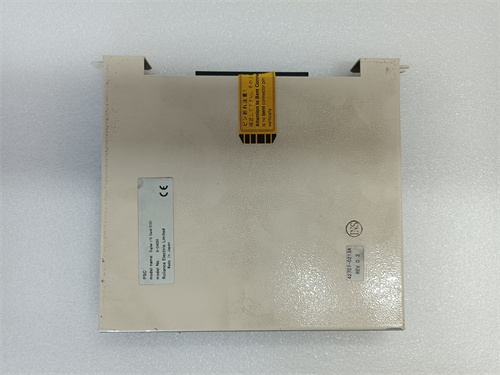

RELIANCE ELECTRIC S-D4006 | DC Drive Power Module, 400A

Description

Product Introduction

That paper mill in Wisconsin—the one with the Reliance MaxPak III drives on the winders—had a drive fault last year. The winder stopped, and the maintenance crew couldn’t get it running. The fault log on the S-D4006 showed “field loss.” The techs checked the field wiring, the motor, even the fuses. Nothing. I pulled the drive’s field regulator board and found a blown optocoupler. One 5 part, one 15,000 drive, one week of lost production.

The RELIANCE ELECTRIC S-D4006 is a digital DC drive from the MaxPak III family, designed for four-quadrant control of DC motors up to 400A, 460V. It’s a complete controller—armature converter, field regulator, logic power supply, and control electronics all in one chassis. The “S-D4006” model indicates a 400A, 460V configuration. It accepts speed or torque references from a PLC or manual control, and provides closed-loop control with tachometer or encoder feedback. In a paper mill, it might drive a 300HP winder; in a steel mill, a 500HP coiler.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A large DC drive requires a thorough test. Here’s our process.

1. Incoming Verification
   • Match the model: S-D4006. (Check the nameplate for voltage and current ratings.)
   • Visual inspection: Open the cabinet—look for loose connections, bulging capacitors, burnt components.
   • Check the cooling fan—should spin freely.
   • Inspect the power terminals—no corrosion.
2. Power-On Self-Test
   • Apply control power (115V AC for logic).
   • Watch the front panel LEDs—should cycle and then show “ready.”
   • Connect to the drive via the serial port (if available).
   • Verify the drive parameters can be read.
3. Low-Voltage Test
   • Connect a small DC motor (5HP) or a resistive load.
   • Apply low armature voltage (50V) and verify rotation/direction.
   • Test forward and reverse.
   • Test speed control loop with tachometer feedback.
4. Field Regulator Test
   • Connect a field load (resistive or small motor field).
   • Command field current at various setpoints.
   • Verify actual current matches command within 2%.
5. Protection Test
   • Simulate field loss—drive should trip.
   • Simulate overcurrent—drive should trip.
   • Verify fault codes are displayed.
6. High-Voltage/High-Current Test
   • For a full-load test, we need a large load bank or motor. We do this for critical applications only.
   • At minimum, we test at 10% load to verify power section operation.
7. Isolation Test
   • 500V megger between power terminals and ground—>10 MΩ.
   • 500V megger between control terminals and ground—>10 MΩ.
8. Thermal Test
   • Run at 50% load for 1 hour, monitor temperature rise.
   • Fan should cycle on/off as needed.
9. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in protective plastic.
   • Skid-mount for shipping (50 kg is heavy).
   • Test report included—parameter list, test results.

Field Replacement Pitfalls

I’ve worked on these in paper mills, steel mills, and test labs. Here’s where people go wrong.

❗Field Loss Detection
The drive has field loss detection. If you’re using a motor with a separate field supply, make sure the field current is high enough to be detected. Too low, and the drive may nuisance trip.

Tachometer Polarity
The tachometer feedback is polarity-sensitive. If you reverse the wires, the speed loop will be positive feedback—the motor will run away. Check polarity before running.

Armature Voltage Selection
The drive must be configured for the correct armature voltage. If you set it for 460V and apply 230V, it may not regulate properly. Check the motor nameplate.

Grounding
The drive must be properly grounded. A poor ground can cause noise on the analog inputs and erratic operation.

Parameter Backup
These drives have dozens of parameters. Before replacing a drive, back up the old parameters. Loading them into the new drive saves hours of setup.

*Nail these five, and your S-D4006 will run that motor for years.*

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this drive was manufactured by Reliance Electric, packed in its original crate, and never installed. The capacitors have zero hours, the power semiconductors are unused, and the fan hasn’t run.

Refurbished risk in plain terms
A refurbished Reliance drive often comes from a decommissioned mill. The capacitors are aged—they dry out and lose capacitance. The power semiconductors may have been stressed by countless starts and stops. A refurbisher tests it at low power and calls it good. In the field, at full load, it may fail.

Real cost of a refurbished failure
If this drive fails, the production line stops. In a paper mill, that’s tens of thousands of dollars per hour. The cost of one outage dwarfs the price difference.

What we provide as proof

• Reliance crate (or photos).
• Serial number recorded.
• Test report (low voltage, protection tests).
• 12‑month warranty.

Pricing context
We’re priced 30% above the cheapest used Reliance drives and 20% below the original list price. That pays for the fresh components and the warranty.

Performance Benchmarks & Test Results

Test conditions: 115V AC control power, 50V DC armature test, resistive load.

We keep the full test data—ask, and we’ll email the PDF.
