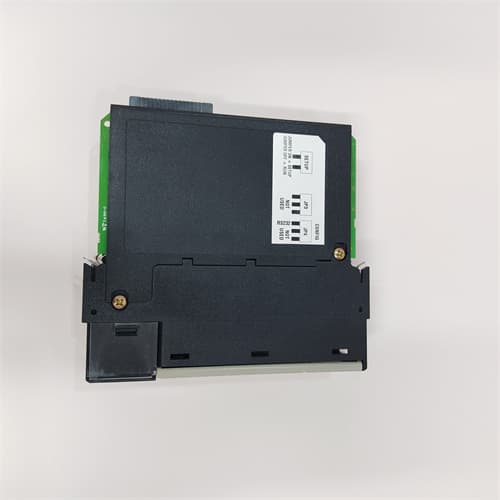

PROSOFT MVI56-MBP

Description

Product Overview and Description

The PROSOFT MVI56-MBP is a Modbus Plus communication module designed to interface Rockwell Automation ControlLogix programmable logic controllers (PLCs) with Modbus Plus networks. This module, part of ProSoft Technology’s extensive in-chassis communication solution portfolio, installs directly into a ControlLogix rack and acts as a gateway, enabling seamless data exchange between the ControlLogix processor and Modbus Plus devices such as PLCs, drives, operator interfaces, and SCADA systems. The PROSOFT MVI56-MBP is a critical component for integrating Rockwell Automation platforms into existing Modbus Plus networks or for connecting Modbus Plus equipment to modern ControlLogix systems.

The MVI56-MBP module is engineered for reliable operation in industrial environments and features a powerful coprocessor that handles all Modbus Plus protocol processing, offloading this task from the main ControlLogix processor. This ensures deterministic communication and preserves PLC performance for core control tasks. The use of the PROSOFT MVI56-MBP allows system integrators and end-users to leverage the strengths of both Rockwell Automation and Modbus Plus technologies, creating flexible and integrated automation solutions.

Technical Parameters

Based on the analysis of ProSoft Technology’s MVI56 family documentation, the PROSOFT MVI56-MBP possesses the following key characteristics:

• Device Type: Modbus Plus Communication Module for ControlLogix.
• Compatible Platforms: Rockwell Automation ControlLogix (1756 series) PLCs.
• Form Factor: 1756 I/O module form factor, installs directly into ControlLogix rack.
• Protocol Support: Modbus Plus (Master and Slave modes).
• Communication Speed: Supports standard Modbus Plus data rates (1 Mbps).
• Data Transfer: Bi-directional data exchange with ControlLogix processor via the ControlLogix backplane.
• Memory: Onboard memory for data mapping and protocol handling.
• Configuration: Configured using ProSoft Configuration Builder (PCB) software.
• Diagnostics: Front-panel LED indicators for module status, network activity, and data transfer.
• Power Supply: Powered via the ControlLogix backplane.
• Supported Nodes: Capable of communicating with multiple Modbus Plus devices on the network.
• Part Number: PROSOFT MVI56-MBP is the specific model identifier for this Modbus Plus interface module.

Advantages and Key Features

The PROSOFT MVI56-MBP offers several key advantages for integrating Rockwell Automation systems:

• Seamless Integration: The MVI56-MBP installs directly into the ControlLogix rack, appearing as a standard 1756 I/O module. This provides seamless integration with Rockwell’s programming environment and simplifies system architecture.
• Protocol Offloading: The module’s onboard processor handles all Modbus Plus protocol processing, offloading this task from the ControlLogix CPU. The PROSOFT MVI56-MBP ensures that the PLC’s resources are dedicated to control tasks while the module manages communication.
• Flexible Data Mapping: The MVI56-MBP allows flexible mapping of Modbus Plus data to ControlLogix tags, simplifying data access in the PLC program.
• Dual-Port Operation: Many ProSoft modules support both master and slave modes, allowing the PROSOFT MVI56-MBP to function flexibly in various network configurations.
• Diagnostic Capabilities: Comprehensive diagnostics with status LEDs and software-accessible diagnostics help maintainers quickly identify and resolve communication issues.

Application Cases in Key Industries

The PROSOFT MVI56-MBP is used in a wide variety of applications across multiple industries:

• Oil and Gas Production: The MVI56-MBP connects ControlLogix-based wellhead control systems to Modbus Plus SCADA networks, enabling centralized monitoring and control of remote facilities.
• Water and Wastewater Treatment: In treatment plants, the PROSOFT MVI56-MBP interfaces ControlLogix controllers with Modbus Plus-based pump drives, flow meters, and water quality analyzers.
• Manufacturing and Assembly: The module connects ControlLogix PLCs to Modbus Plus-enabled robotic controllers, vision systems, and material handling equipment on factory floors.
• Power Generation: In power plants, the MVI56-MBP links ControlLogix-based balance-of-plant controls with Modbus Plus turbine control systems or generator protection relays.
• Infrastructure and Building Automation: The PROSOFT MVI56-MBP interfaces ControlLogix systems with Modbus Plus-based HVAC controllers, power monitors, and lighting systems.

Comparison with Competitors

In the market for communication modules for Rockwell Automation platforms, ProSoft’s primary competitors include Spectrum Controls and Woodhead (if applicable), as well as Rockwell’s own communication solutions.

• PROSOFT MVI56-MBP vs. Rockwell Native Solutions: Rockwell does not offer a native Modbus Plus module for ControlLogix. The PROSOFT MVI56-MBP fills this gap, providing a seamless and reliable solution where none exists from the primary manufacturer.
• PROSOFT MVI56-MBP vs. Generic Gateways: External protocol gateways (Ethernet to Modbus Plus) require separate hardware and wiring, adding complexity. The MVI56-MBP eliminates these components by residing directly in the ControlLogix rack, providing a cleaner and more integrated solution.
• PROSOFT MVI56-MBP vs. Spectrum Controls: Spectrum Controls offers some communication modules, but ProSoft is widely recognized as the market leader in this space, with a broad portfolio and extensive field experience. The PROSOFT MVI56-MBP is a proven, industry-standard solution.

Selection Recommendations and Precautions

1. Compatibility Check: The PROSOFT MVI56-MBP is designed for ControlLogix systems. Verify compatibility with your specific ControlLogix chassis, power supply, and controller model.
2. Firmware Revision: Check the firmware version of the MVI56-MBP to ensure compatibility with your ControlLogix firmware and the Modbus Plus network requirements.
3. Configuration Software: You will need ProSoft Configuration Builder (PCB) software to configure the PROSOFT MVI56-MBP. Ensure you have access to this software and the necessary license (if required).
4. Network Termination: Modbus Plus networks require proper termination. When installing the MVI56-MBP, ensure your network cabling includes appropriate termination resistors to prevent signal reflections.
5. ESD Precautions: The module contains sensitive electronic components. Follow strict Electrostatic Discharge (ESD) precautions when handling or installing the PROSOFT MVI56-MBP.
