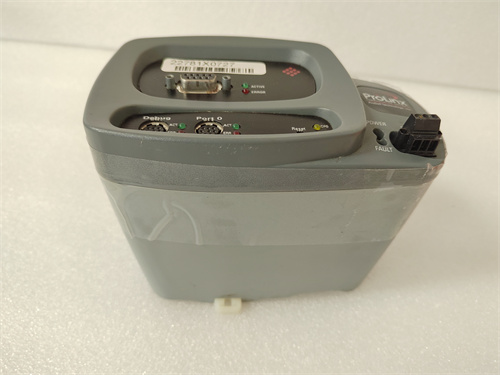

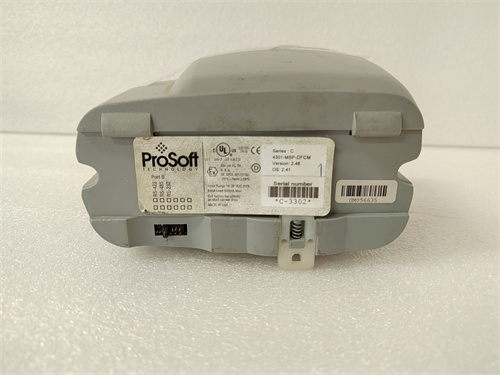

PROSOFT 4301-MBP-DFCM

Description

Product Overview and Key Specifications

The PROSOFT 4301-MBP-DFCM is a highly specialized and certified communications module that functions as a gateway between Modbus Plus (MB+) networks and DeviceNet fieldbus systems. As a product from ProSoft Technology, a leader in industrial connectivity solutions, this module is engineered to seamlessly bridge two distinct industrial protocols, enabling data exchange and control interoperability in heterogeneous automation environments. The PROSOFT 4301-MBP-DFCM serves as a critical network interface, allowing legacy Modbus Plus devices, such as PLCs and drives, to communicate directly with modern DeviceNet sensor and actuator networks. This dedicated protocol converter eliminates the need for complex custom programming in a host controller, streamlining system integration and modernization efforts. For projects requiring a reliable bridge between these two prevalent industrial networks, the PROSOFT 4301-MBP-DFCM is an industry-standard solution.

Key technical parameters for the PROSOFT 4301-MBP-DFCM include:

• Product Type: Standalone Protocol Gateway/Bridge
• Network Side A: Modbus Plus (MB+) network connection, acting as a Modbus Plus slave/node.
• Network Side B: DeviceNet network connection, acting as a DeviceNet slave.
• Data Mapping: Provides configurable data mapping tables (typically via ProSoft Configuration Builder software) to transfer up to 2000 words (4000 bytes) of data between networks.
• Power Supply: 24V DC, standard for industrial control panels.
• Isolation: 1500V RMS optical isolation between the Modbus Plus and DeviceNet networks for noise immunity and protection.
• Certifications: UL, cUL, CE marked, and often certified for use in Class I, Division 2 hazardous locations.
• Diagnostics: Extensive status LEDs for power, network activity, and error conditions on both sides.

Advantages and Distinctive Features

The primary advantage of the PROSOFT 4301-MBP-DFCM is its role as a dedicated, transparent gateway that requires no programming in the connected PLCs. Its plug-and-play configuration via PC software significantly reduces engineering time and complexity compared to implementing communication logic in a controller’s ladder code. The module’s robust design and high-voltage isolation ensure reliable operation in electrically noisy industrial environments, protecting sensitive network segments from ground loops and transient spikes. The transparent data bridging capability of the PROSOFT 4301-MBP-DFCM allows engineers to integrate new DeviceNet equipment into existing Modbus Plus systems (or vice-versa) without costly and risky changes to the core control program, thereby future-proofing industrial assets.

Application Scenarios and Use Cases

This gateway is indispensable in modernization and expansion projects within facilities that have a legacy Modbus Plus backbone. A typical application is in water/wastewater treatment plants, where a legacy Modicon Quantum PLC on Modbus Plus needs to integrate a new system of DeviceNet-enabled variable frequency drives (VFDs) for pump control. Another common use case is in manufacturing facilities, such as automotive assembly lines, where a new robotic cell with DeviceNet I/O blocks must be controlled by a legacy Modbus Plus-based host controller. The PROSOFT 4301-MBP-DFCM also finds use in material handling systems to connect DeviceNet photoelectric sensors and motor starters to a supervisory Modbus Plus network. By deploying the PROSOFT 4301-MBP-DFCM, plants can implement phased upgrades, extending the life of proven Modbus Plus systems while adopting the device-level benefits of DeviceNet.

Comparison with Competing Products

Compared to alternative methods of connecting MB+ and DeviceNet, such as using a general-purpose PLC with dual communication cards and extensive custom messaging code, the PROSOFT 4301-MBP-DFCM offers superior simplicity, reliability, and performance. It is a purpose-built appliance. Competing gateways from other connectivity specialists (e.g., HMS Networks/Anybus, Contemporary Controls) may offer similar functionality, but ProSoft’s deep experience with Rockwell/Allen-Bradley and Schneider Electric/Modicon ecosystems often translates to better out-of-the-box compatibility and support. The PROSOFT 4301-MBP-DFCM is specifically optimized for this protocol pair, whereas more generic multi-protocol gateways might require more complex setup and may not offer the same depth of feature support for both networks.

Selection Guidelines and Important Considerations

Careful planning is essential to ensure the gateway meets the application’s data throughput and functional requirements.

1. Traffic Volume Assessment: Analyze the amount and frequency of data (number of registers/coils) that must be transferred between the two networks. Ensure the data capacity (e.g., 2000 words) of the PROSOFT 4301-MBP-DFCM is sufficient.
2. Network Topology Planning: Determine the physical location of the gateway. It must be placed within the cable length limits of both the Modbus Plus trunk (with proper termination) and the DeviceNet trunk/drop lines.
3. Configuration Software: Ensure access to the necessary ProSoft Configuration Builder (PCB) software and a connection cable (typically serial or USB) to set up the module’s data mapping tables before deployment.
4. Addressing Conflicts: Carefully plan the node addresses. The module will occupy one node address on the Modbus Plus network and one on the DeviceNet network. These must be unique and non-conflicting within their respective networks.
5. Power and Environment: Verify the 24V DC power supply is adequately rated and provide proper fusing. Install the module in an enclosure suitable for its operating temperature and the environmental conditions of the plant floor.
