NI+SCXI-1160 SCXI-1193

Description

Product Name

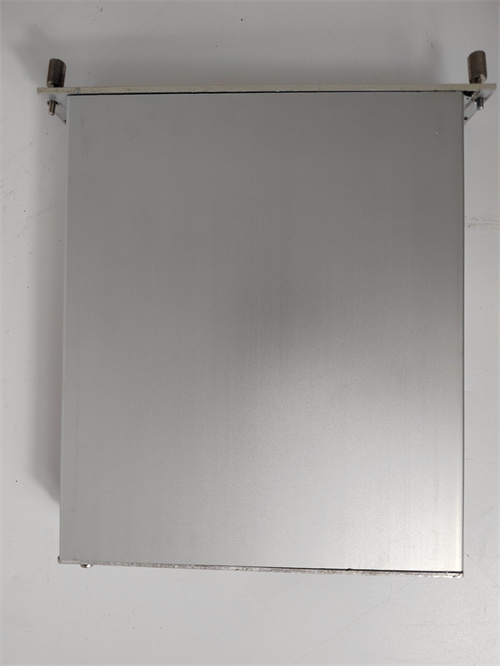

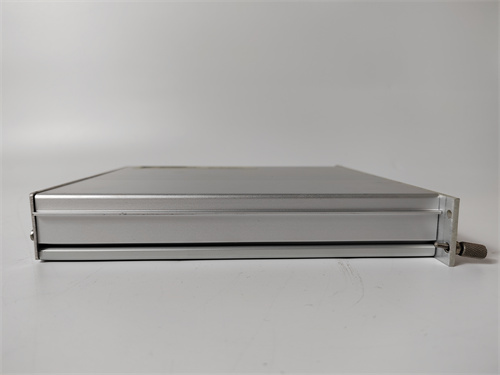

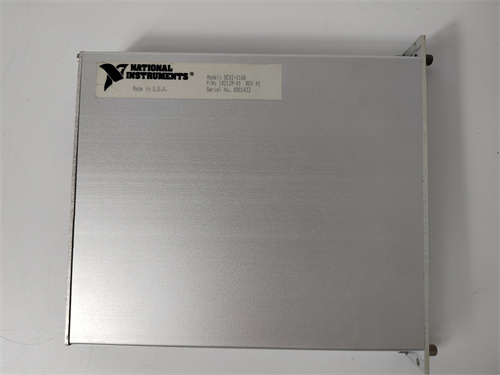

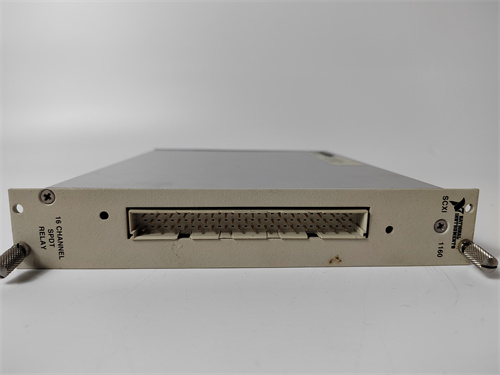

NI SCXI-1160 and SCXI-1193

Product Description

The NI SCXI-1160 and SCXI-1193 are components of the National Instruments SCXI (Signal Conditioning Express Interface) system, designed to provide flexible and high-performance signal conditioning for a variety of applications. The SCXI-1160 is an isolated input module with multiple channels, offering excellent noise immunity, while the SCXI-1193 is a versatile output module that enables precise control for your devices. Together, these modules enhance the functionality of your automation systems, ensuring accurate data measurement and control.

Product Specifications

• NI SCXI-1160:
  • Input types: Voltage, Current
  • Number of channels: 16
  • Isolation voltage: 500V
  • Range: ±10V, 0–20 mA
  • Accuracy: ±0.1%
• NI SCXI-1193:
  • Output types: Voltage, Current
  • Number of channels: 8
  • Output range: ±10V, 0–20 mA
  • Resolution: 16-bit
  • Isolation voltage: 500V

Advantages and Features

The NI SCXI-1160 provides high isolation, which protects the measuring equipment from electrical noise and transients from the environment. Its multiple channels allow for simultaneous data acquisition, making it ideal for complex automation setups. The SCXI-1193, on the other hand, excels at providing precise and reliable outputs, ensuring your control signals are accurate and repeatable. The modular design of both products allows for easy scalability and integration into existing systems.

Application Fields and Case Studies

The NI SCXI-1160 and SCXI-1193 are widely used in various industries such as manufacturing, process control, and laboratory research. For example, in a manufacturing setting, the SCXI-1160 is employed to monitor temperature and pressure signals from machinery, while the SCXI-1193 can be used to control actuators and valves for automated processes. A notable case involved a laboratory utilizing both modules to accurately measure and control chemical reactions, thereby improving the reproducibility of experiments.

Competitor Comparison

When compared to competitors like the Allen-Bradley analog I/O modules, the NI SCXI-1160 and SCXI-1193 stand out due to their high channel density and superior isolation specs. While many competitors offer isolated modules, few match the comprehensive feature set and integration capabilities of the NI modules, making them a preferred choice for demanding applications.

Selection Recommendations

When selecting between NI SCXI-1160 and SCXI-1193, consider your specific application requirements. If your focus is on high channel count analog input with noise immunity, the SCXI-1160 is the ideal choice. Conversely, for applications requiring multiple, precise control outputs, the SCXI-1193 will serve you best. Evaluate your system architecture, desired performance, and future scalability when making your decision.

Precautions

Ensure proper power supply and grounding for both NI SCXI-1160 and SCXI-1193 to avoid signal integrity issues. Regularly calibrate the modules to maintain accuracy, and consult the NI documentation for installation guidelines and best practices.

We are your trusted partner, providing a wide range of products including NI SCXI-1160 and SCXI-1193, along with other automation spare parts. We offer special discount pricing and technical support for our products. Please contact us, and we will be eager to assist you.
