NI+SCXI-1104C SCXI-1126

Description

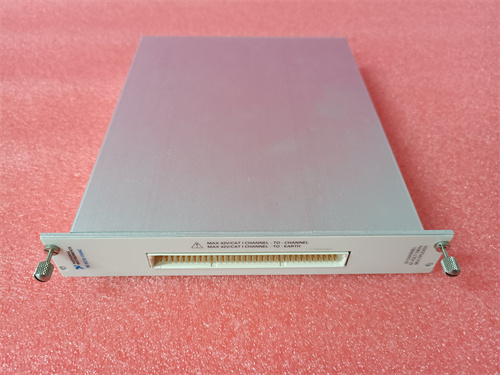

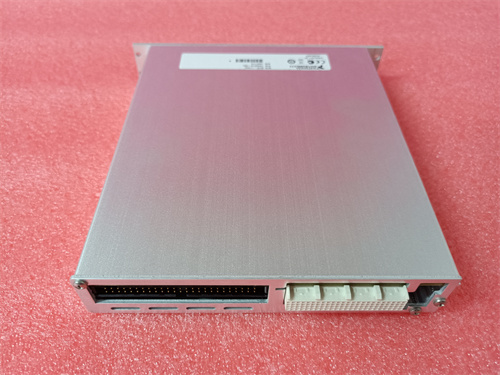

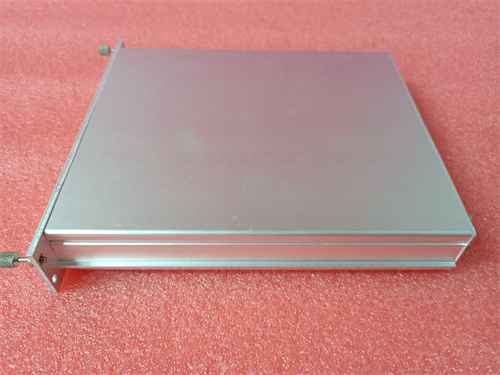

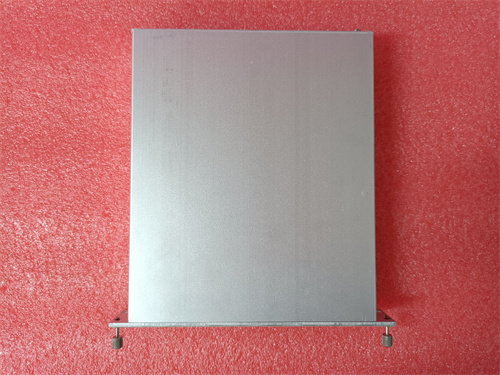

Product Name: NI SCXI-1104C and SCXI-1126

Product Description

The NI SCXI-1104C and SCXI-1126 are advanced modules designed for signal conditioning and data acquisition in a variety of automation applications. These modules are part of the National Instruments (NI) SCXI (Signal Conditioning eXtensions for Instrumentation) system, providing high-performance signal processing capabilities. The SCXI-1104C is a multifunction analog input module, while the SCXI-1126 offers an advanced functionality for temperature measurement and isolation.

Product Specifications

• NI SCXI-1104C:
  • Channels: 32 single-ended or 16 differential
  • Sampling rate: Up to 1 MS/s
  • Input voltage range: ±10V
  • Noise performance: 0.5 mV
• NI SCXI-1126:
  • Channels: 8 thermocouple inputs
  • Temperature range: -200 to 1800 °C
  • Resolution: 24 bits
  • Isolation: 2500V (continuous)

Advantages and Features

The NI SCXI-1104C and SCXI-1126 both feature robust design and high precision for demanding environments. The SCXI-1104C is capable of handling high-speed data acquisition with its impressive sampling rate, making it ideal for time-critical applications. The SCXI-1126 excels in temperature measurements with its extensive range and high resolution, allowing for accurate readings in industrial processes.

Both modules are designed with flexibility in mind, supporting a range of input types and configurations. Integrated isolation in the SCXI-1126 significantly enhances safety in industrial applications, protecting sensitive equipment from potential electrical damage.

Application Fields and Case Studies

These modules are highly applicable in industries such as manufacturing, automotive, aerospace, and environmental monitoring. For instance, the NI SCXI-1104C is widely used in automotive testing, where multiple sensor inputs are required simultaneously for monitoring various parameters such as pressure and temperature. Similarly, the SCXI-1126 is used in environmental labs for monitoring temperature conditions in sensitive experiments, ensuring compliance with safety standards.

A notable case study involves an automotive company that utilized the NI SCXI-1104C for engine testing. The module’s ability to handle multiple input channels simultaneously enabled the company to achieve precise control and monitoring, resulting in a more efficient testing process.

Competitive Analysis

When compared to similar products in the market, the NI SCXI-1104C and SCXI-1126 stand out due to their exceptional performance and reliability. Competing modules often lack the same level of integration and isolation capabilities, making NI’s offerings a preferred choice for critical applications. The versatility and high performance of these modules provide an edge for users who need high-quality data acquisition solutions.

Selection Recommendations

When selecting between the NI SCXI-1104C and SCXI-1126, consider your specific application needs. If your project requires high-speed data acquisition with multiple channels, the SCXI-1104C is ideal. However, if your application focuses on precise temperature measurements, the SCXI-1126 would be the better option.

Additionally, ensure that your existing system is compatible with these modules. Verify power requirements and necessary software drivers for seamless integration.

Precautions

While using the NI SCXI-1104C and SCXI-1126, it is important to adhere to the specified operating ranges to avoid damage. Proper installation and configuration are crucial to ensure optimal performance. Regular calibration and maintenance are recommended to sustain accuracy and reliability.

We are your trusted partner, providing sales and technical support for the NI SCXI-1104C and SCXI-1126 as well as other automation spare parts. Enjoy special discount pricing by contacting us, and we will be at your service with dedication.
