NI+PXI-6608 185745H-02

Description

Product Name

NI+PXI-6608 185745H-02

Product Description

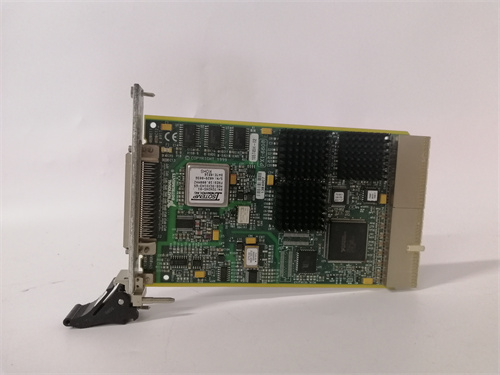

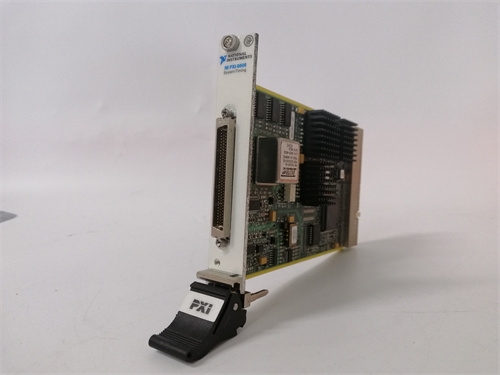

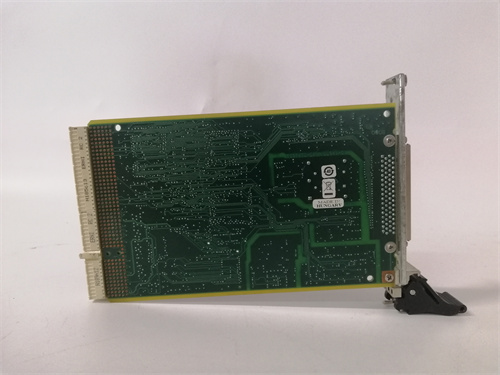

The NI+PXI-6608 185745H-02 is a high-performance timing and synchronization module from National Instruments designed for use in PXI systems. It serves as an essential component for applications that require precise timing and high accuracy in data acquisition and control tasks. This module integrates multiple advanced features to provide reliable system performance and could seamlessly integrate into various automated systems, making it an ideal choice for engineers and system integrators.

Product Specifications

• Number of 24-bit counters: 8
• Maximum Input Frequency: 20 MHz
• Timebase Frequency: 100 MHz
• Output Channels: 2
• Synchronization: Supports PXI Trigger Bus
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -40°C to 85°C
• Dimensions: Compact form factor suitable for PXI chassis

Advantages and Features

The NI+PXI-6608 185745H-02 offers several distinct advantages:

• High Accuracy: With its 24-bit resolution and high input frequency, this module ensures precise measurements.
• Multiple Counters: The option to utilize eight counters simultaneously allows for complex and detailed timing applications.
• Flexible Integration: The compatibility with PXI systems makes it an ideal fit for automation setups that require high performance and reliability.
• Robust Construction: Designed to withstand various environmental conditions, making it suitable for both laboratory and field applications.

Application Areas and Case Studies

The NI+PXI-6608 185745H-02 is widely used in various industries, including:

• Automated Test Equipment: Its precision is ideal for automated testing and validation of electronic components.
• Data Acquisition Systems: Perfectly suited for collecting and processing real-time data in research and industrial environments.
• Control Systems: Efficiently manages timing in automation processes across manufacturing sectors.

One notable case study involved its implementation in a large automotive testing facility, where the module enhanced the accuracy of engine performance tests significantly, thereby reducing error margins and improving product quality.

Competitive Comparison

When comparing the NI+PXI-6608 185745H-02 with other similar products in the market, it stands out due to its superior performance and extensive feature set. For example, compared to the PXIe-6674T, the NI+PXI-6608 185745H-02 offers more counters and higher resolution, making it a better option for applications that require complex timing operations.

Selection Recommendations

Choosing the NI+PXI-6608 185745H-02 is recommended for applications that demand high accuracy and reliability in timing and synchronization tasks. It is especially beneficial for engineers looking for a robust module that integrates seamlessly into existing PXI systems. Consider the environment it will be used in, as harsh conditions may require additional testing for long-term reliability.

Precautions

While utilizing the NI+PXI-6608 185745H-02, it is essential to consider the following:

• Ensure proper installation in a compatible PXI chassis to avoid damage.
• Regularly check for firmware updates to maintain optimal performance.
• Be mindful of environmental conditions, ensuring that the operating and storage temperatures are adhered to for longevous performance.

We are your trusted partner, providing you with the NI+PXI-6608 185745H-02 and other automation spare parts sales and technical support. We offer special discount prices just for you. Please contact us, and we will be dedicated to serving you.
