NI+PXI-6527

Description

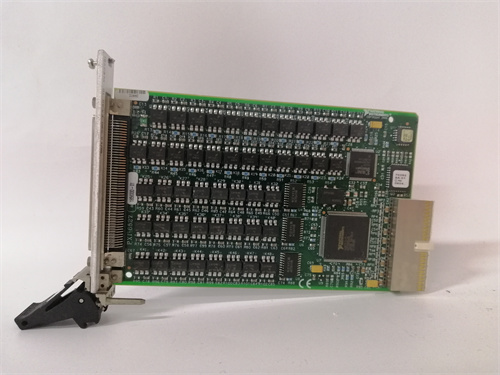

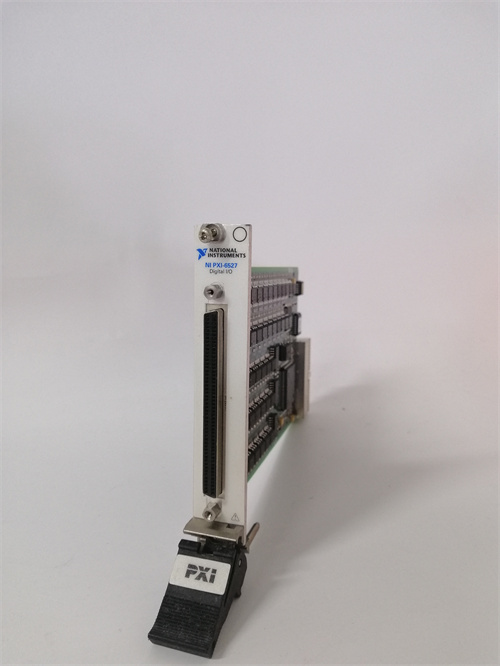

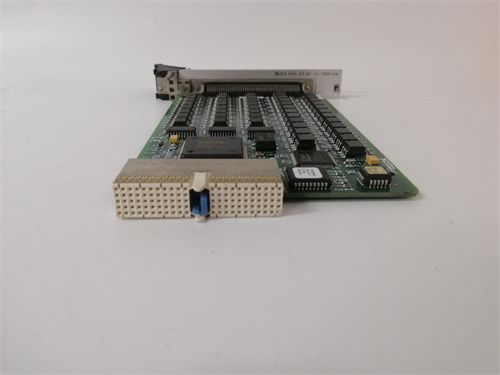

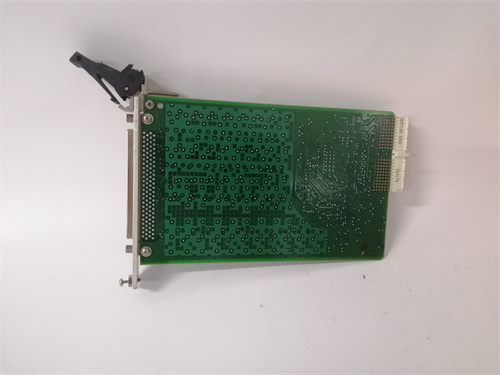

The NI PXI-6527 is a high-performance digital I/O module designed for PXI systems.

Product Name:

NI PXI-6527

Product Description:

The NI PXI-6527 is a 32-channel, bidirectional digital I/O module optimized for applications requiring precise timing and synchronization in test and measurement setups. It features the capability to operate at high speeds, making it suitable for a range of applications from automation to data acquisition.

Product Parameters:

• Channels: 32 digital I/O channels
• I/O Type: Bidirectional (can be configured as input or output)
• Logic Levels: TTL-compatible
• Data Rate: Up to 10 MHz
• Connector Type: 68-pin SCSI-style connector

Specifications:

• Voltage Levels: 5 V TTL
• Current Sink/Source: Typically 24 mA per channel
• Input Voltage Range: 0 V to 5 V for logic high, and 0 V to 0.8 V for logic low
• Timing: Programmable timing capabilities for complex digital I/O tasks
• Isolation: Non-isolated

Product Use:

The NI PXI-6527 is widely used in:

• Automated Test Systems: Ideal for high-speed data acquisition and control in testing environments.
• Industrial Automation: Facilitates communication between various devices and systems in manufacturing processes.
• Data Logging: Can be used for recording digital signals in various applications.
• Prototyping and Development: Useful for engineers developing and testing new hardware and software.
