NI+PXI-4461 186900T-11L

Description

Product Name

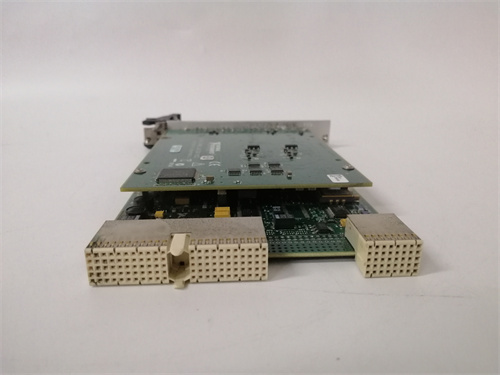

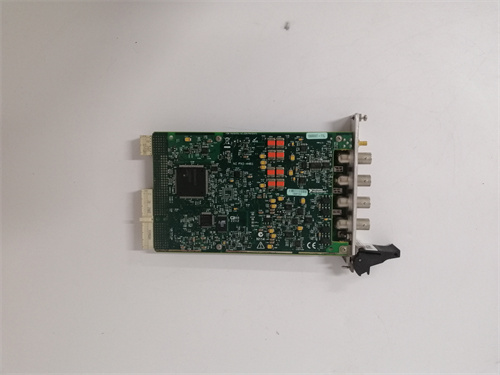

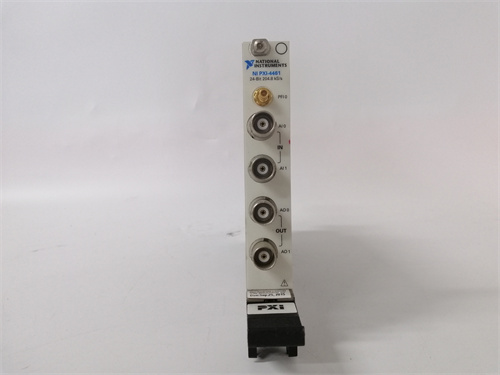

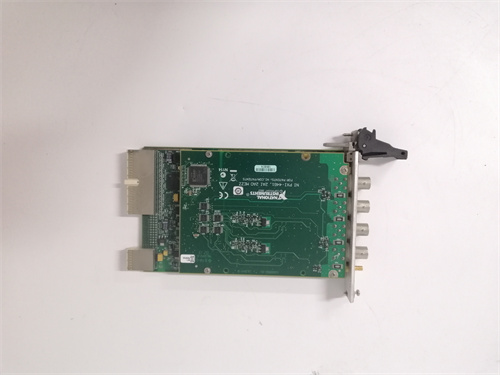

NI PXI-4461 186900T-11L

Product Description

The NI PXI-4461 186900T-11L is a high-performance multifunction data acquisition module designed for precision measurement and control. This module is part of National Instruments’ (NI) PXI platform, which integrates seamlessly with various NI tools and software, enabling a comprehensive automated testing and measurement solution. The NI PXI-4461 186900T-11L features advanced signal processing capabilities, allowing for both analog input and output, making it suitable for various applications in the automation sector.

Product Parameters

• NI+PXI-4461 186900T-11L
• Sample Rate: Up to 204.8 kS/s per channel
• Input Channels: 8
• Output Channels: 2
• Resolution: 24-bit
• Dynamic Range: 102 dB
• Supported Signals: Voltage, current, acceleration, sound, and more
• Communications Interface: PXI Express

Advantages and Features

The NI PXI-4461 186900T-11L offers several advantages that enhance its performance in an automation environment:

• High Resolution: With 24-bit resolution, it provides superior accuracy and precision in measurements.
• Versatility: Capable of handling multiple signal types, broadening its application range.
• Speed: The high sample rate allows for real-time data acquisition, crucial for dynamic testing.
• Integration: Designed to work seamlessly with other NI products and software, ensuring easy integration into existing systems.
• Scalability: As part of the PXI platform, it offers scalability for future expansion needs.

Application Fields and Case Studies

The NI PXI-4461 186900T-11L is widely used in various fields, including:

• Automotive Testing: For engine and vehicle performance measurements.
• Aerospace: In-flight instrumentation and data recording.
• Industrial Automation: Real-time monitoring and control of manufacturing processes.
• Research and Development: Used in laboratories for experimental data collection.

Case Study:

In an automotive testing facility, the NI PXI-4461 186900T-11L was implemented to monitor engine vibrations and operational metrics. The high sample rate and resolution allowed engineers to obtain detailed insights into the vehicle’s performance, leading to significant improvements in design and efficiency.

Competitive Product Comparison

When compared to competitors like the Advantech ADQ-9700 and the Keysight M9703, the NI PXI-4461 186900T-11L stands out due to its:

• Higher Channel Density: More inputs and outputs for simultaneous measurement.
• Superior Dynamic Range: Leading to improved measurement fidelity.
• Integration with LabVIEW and other NI software: Additional user-friendly features and ease of use.

Selection Recommendations

When selecting the NI PXI-4461 186900T-11L, consider the following:

• Application Requirements: Ensure that the sample rate, resolution, and channel count meet your project’s specifications.
• Integration Capacity: Verify compatibility with existing systems and software tools.
• Future Needs: Consider scalability if you plan to expand your automated testing capabilities in the future.

Precautions

• Ensure proper installation and configuration to avoid any performance issues.
• Regularly update software and drivers to maintain compatibility and functionality.
• Monitor environmental conditions to prevent damage to the module during operation.

We are your trusted partner, providing a range of products including NI PXI-4461 186900T-11L and other automation spare parts with sales and technical support. Enjoy special discount offers when you contact us. We are dedicated to serving you!
