Description

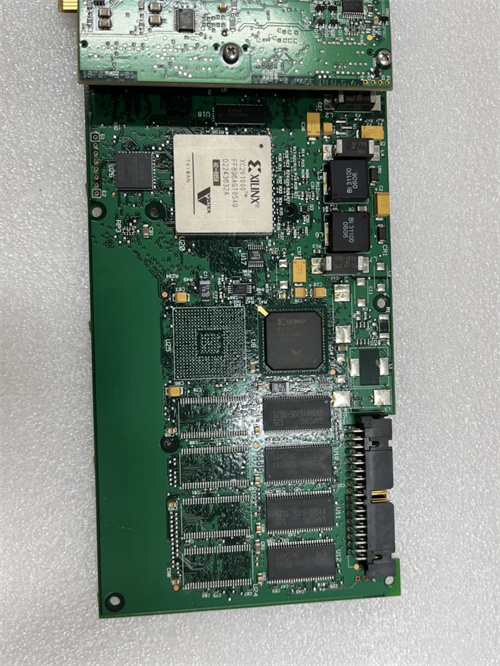

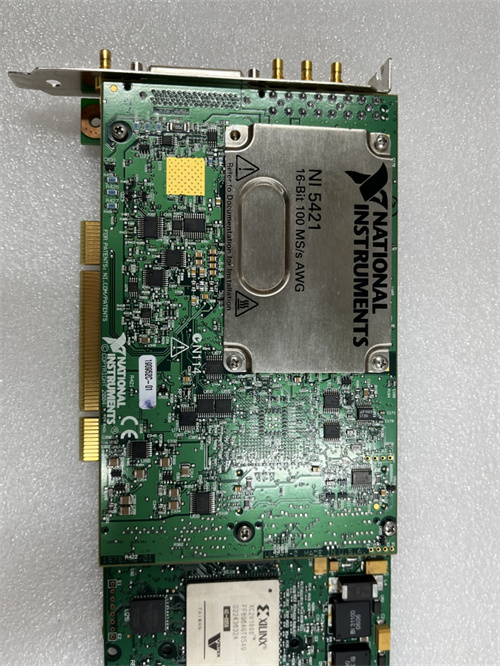

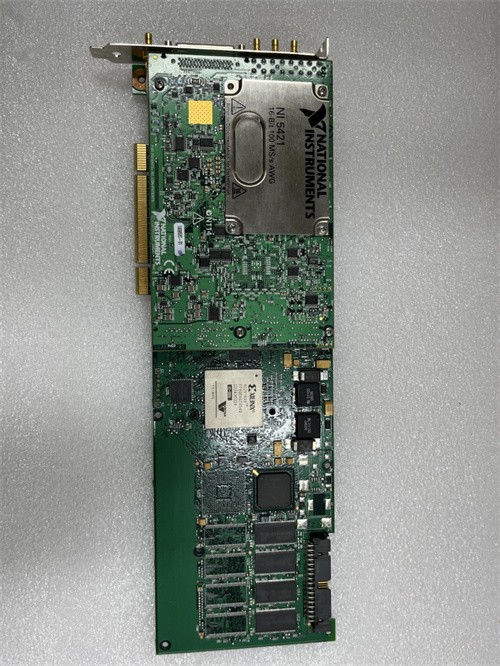

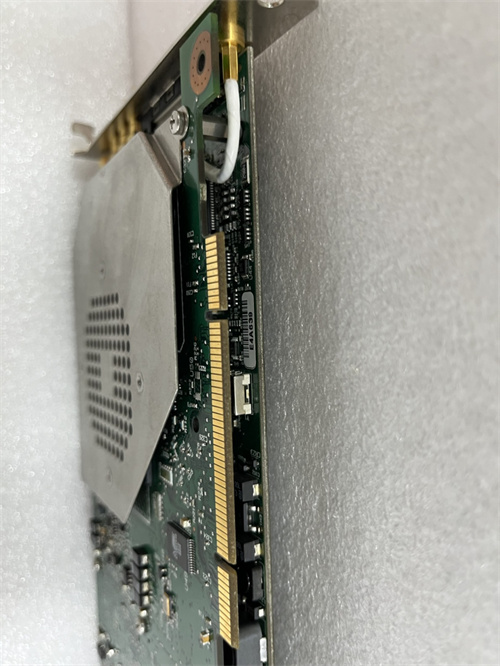

1. NI PCI-5421

Product Name: NI PCI-5421

Product Description: The NI PCI-5421 is a high-performance waveform generator that is designed to generate arbitrary waveforms and provides a powerful solution for simulation and testing. This device is ideal for engineers needing to generate precise signals for their applications.

Product Parameters:

• Output Channel: 2
• Sample Rate: Up to 100 MS/s
• Resolution: 14 bits
• Memory: Up to 16 MB per channel

Specifications:

• Waveform Types: Sine, Square, Triangle, Arbitrary Waveforms
• Output Voltage Range: -10 V to +10 V
• Synchronization: Can be synchronized with other NI DAQ devices for multi-channel applications
• Connectivity: PCI interface for easy integration into computer systems

Product Use: Primarily used in the fields of communications, electronics, and embedded systems for signal simulation, verification, and testing.

2. NI PCI-6224

Product Name: NI PCI-6224

Product Description: The NI PCI-6224 is a multifunction data acquisition (DAQ) device suitable for a range of measurement and control applications. This device is particularly popular in laboratory settings for data analysis and experimentation.

Product Parameters:

• Input Channels: 16 Analog Inputs (AI)
• Sample Rate: 250 kS/s per channel
• Resolution: 16 bits
• Digital I/O: 24 digital channels

Specifications:

• Input Voltage Range: ±10 V
• Analog Input Bandwidth: 100 kHz
• Trigger Modes: Software, Hardware, and External Triggering
• Interface: PCI interface

Product Use: Used for acquiring data in various applications including sensor signal acquisition, control systems, and operational testing.

3. CPCI-3840

Product Name: CPCI-3840

Product Description: The CPCI-3840 is a CompactPCI (CPCI) module designed specifically for high-performance data acquisition and control applications. It provides a flexible platform for industrial and embedded systems.

Product Parameters:

• Channels: 16 simultaneous sampling analog inputs
• Sample Rate: Up to 1 MS/s per channel
• Resolution: 16 bits

Specifications:

• Input Configuration: Differential, single-ended modes
• Isolation: Varied isolation options for better signal integrity
• Synchronization: Capable of synchronized operations with other CPCI modules
• Interface: CompactPCI form factor with standard connectors

Product Use: Commonly used in industrial automation, military applications, data logging, and any settings where robust data acquisition is necessary.
