NI+CFP-DO-400 CFP-DO-403

Description

Product Name

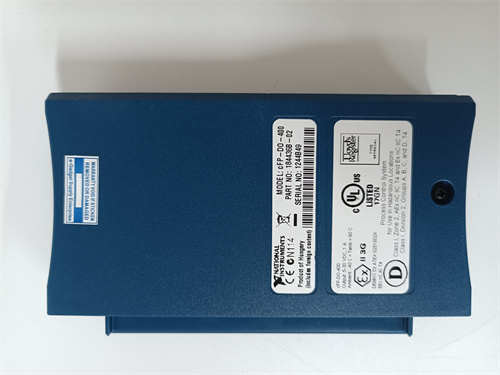

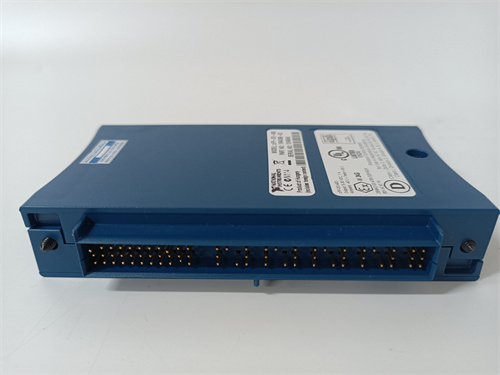

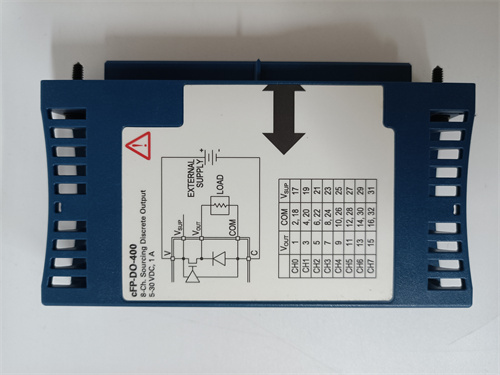

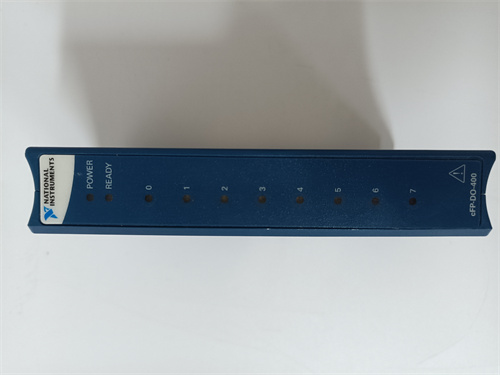

NI CFP-DO-400 and NI CFP-DO-403

Product Description

The NI CFP-DO-400 and NI CFP-DO-403 are high-performance digital output modules designed specifically for use with National Instruments (NI) CompactRIO systems. These modules provide a reliable interface for controlling field devices, enabling automation solutions across various industries. Ideal for applications requiring robust digital output capabilities, the NI CFP-DO-400 offers up to 4 channels, while the NI CFP-DO-403 provides up to 8 channels, catering to a wide range of I/O needs. Both modules are engineered to withstand harsh environmental conditions, making them suitable for deployment in challenging industrial settings.

Product Specifications

• NI CFP-DO-400:
  • Number of Channels: 4
  • Output Type: Relay
  • Voltage Rating: 30V DC
  • Current Rating: 2A per channel
  • Isolation Voltage: 1500V DC
  • Operating Temperature: -40 °C to 70 °C
• NI CFP-DO-403:
  • Number of Channels: 8
  • Output Type: Transistor
  • Voltage Rating: 30V DC
  • Current Rating: 500mA per channel
  • Isolation Voltage: 1500V DC
  • Operating Temperature: -40 °C to 70 °C

Advantages and Features

The NI CFP-DO-400 and NI CFP-DO-403 digital output modules offer several advantages:

• Robust construction suitable for harsh industrial environments.
• High isolation voltage for added safety.
• Flexible output options (relay and transistor) to suit varying application needs.
• Wide operating temperature range ensuring reliable performance in diverse conditions.
• Seamless integration with NI’s software ecosystem for easy programming and monitoring.

Application Fields and Use Cases

These modules are commonly used in industries such as:

• Manufacturing and Process Control
• Oil and Gas
• Automotive Testing
• Water and Wastewater Management
• Infrastructure Monitoring

In a manufacturing scenario, the NI CFP-DO-400 can be employed to control motors and actuators, providing reliable operation in automated lines. On the other hand, the NI CFP-DO-403 can be used for precise control of electronic devices, such as sensors and alarms, in various testing applications.

Competitive Comparison

When compared to other digital output modules in the market, the NI CFP-DO-400 and NI CFP-DO-403 stand out due to their high reliability and versatile output options. Many competitors offer similar voltage ratings, but few can match the extensive temperature range and strong isolation properties of these NI modules. Furthermore, the integration capabilities with various NI software and hardware platforms can significantly reduce development time, making them a preferable choice for many engineers.

Selection Advice

When choosing between the NI CFP-DO-400 and NI CFP-DO-403, consider the following:

• Determine the number of channels required for your application.
• Assess the required output type (relay vs. transistor) based on the devices you plan to control.
• Ensure compatibility with your existing CompactRIO system for optimal performance.
• Keep in mind the environmental conditions where the modules will be deployed.

Precautions

Before installation, ensure that the electrical ratings of both the NI CFP-DO-400 and NI CFP-DO-403 meet the specifications of your application to avoid damage. Pay attention to wiring practices to prevent interference and maintain signal integrity. Lastly, always adhere to safety regulations when working with industrial modules.

We are your trusted partner, providing sales and technical support for product models like NI CFP-DO-400 and NI CFP-DO-403, along with a range of other automation spare parts. Enjoy special discount prices by contacting us today; we are here to serve you!
